HVAC Schematics

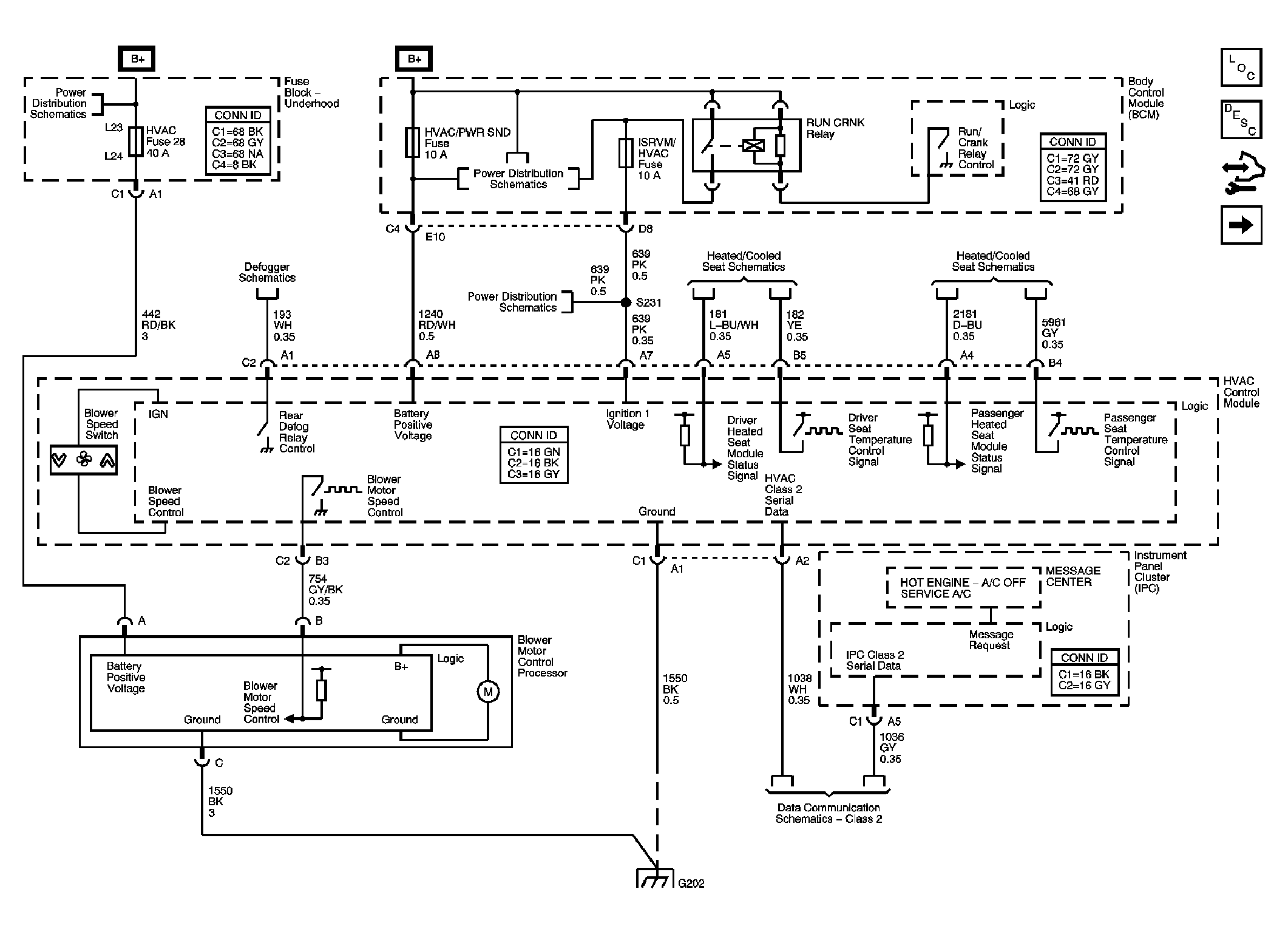

Fig 1: Power, Ground, Blower Motor Control, and Subsystem References Schematic
GM1892720Courtesy of GENERAL MOTORS CORP.

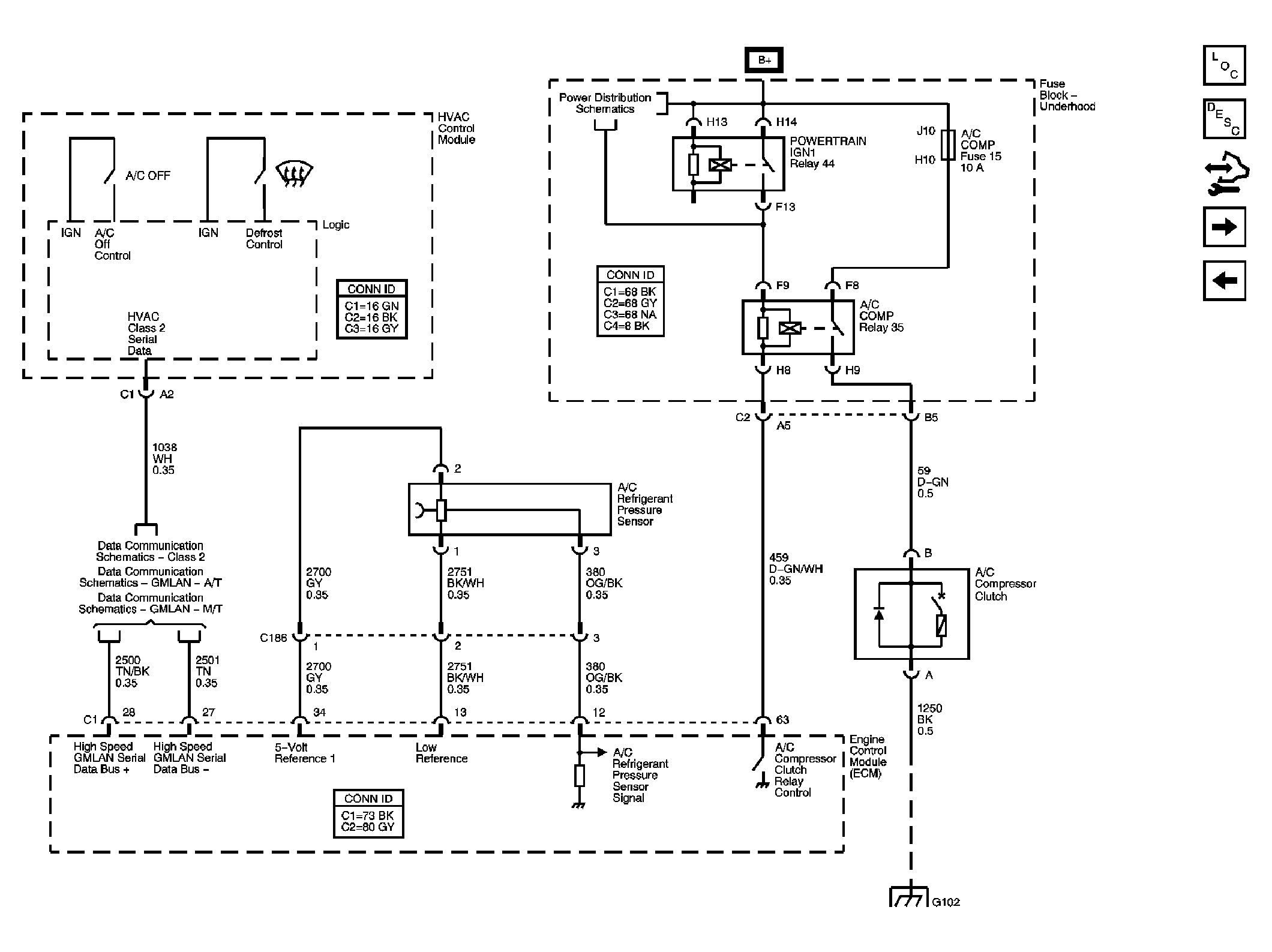

Fig 2: A/C Compressor Controls Schematic
GM1892724Courtesy of GENERAL MOTORS CORP.

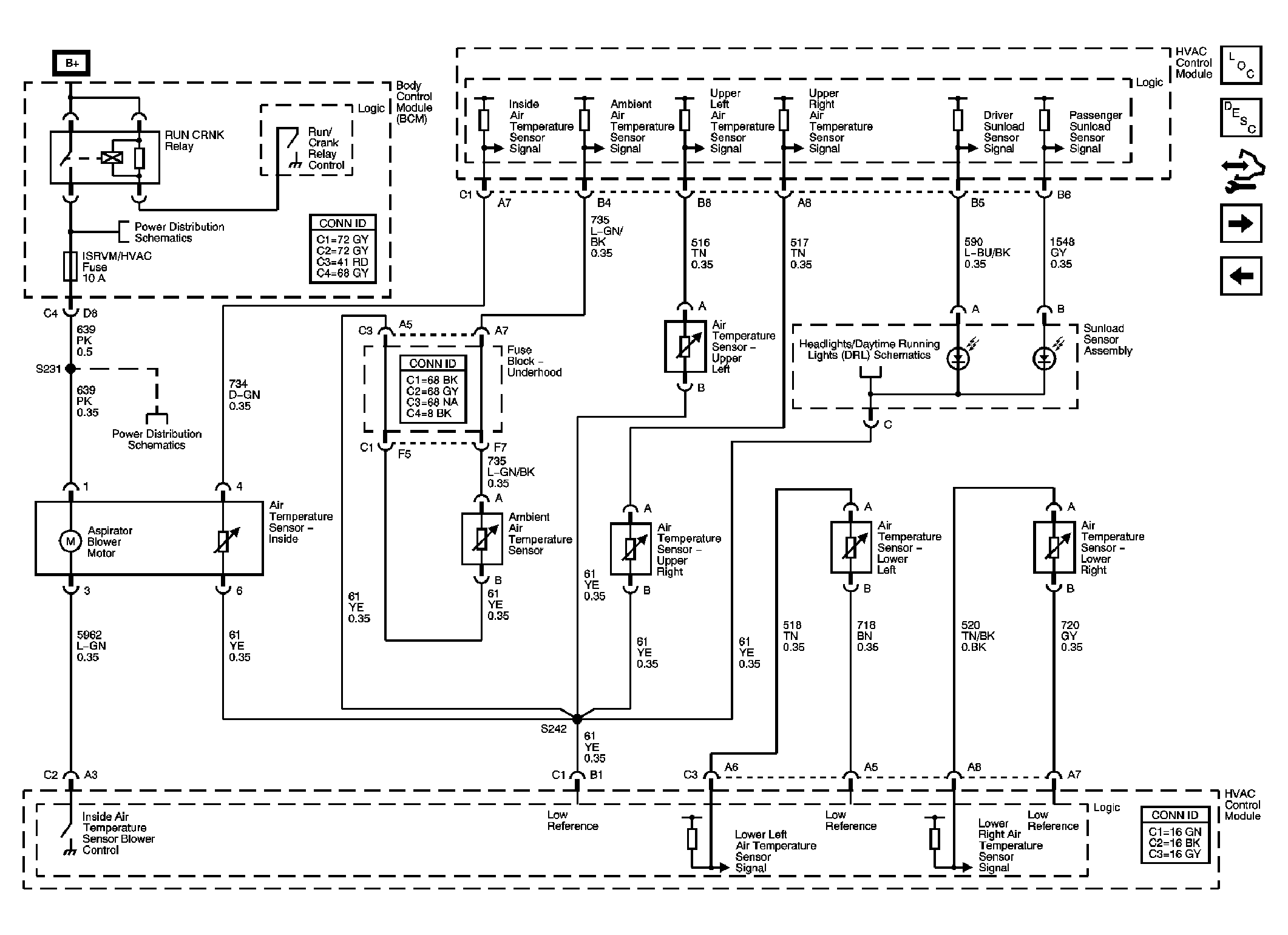

Fig 3: Air Temperature Sensors Schematic
GM1892725Courtesy of GENERAL MOTORS CORP.

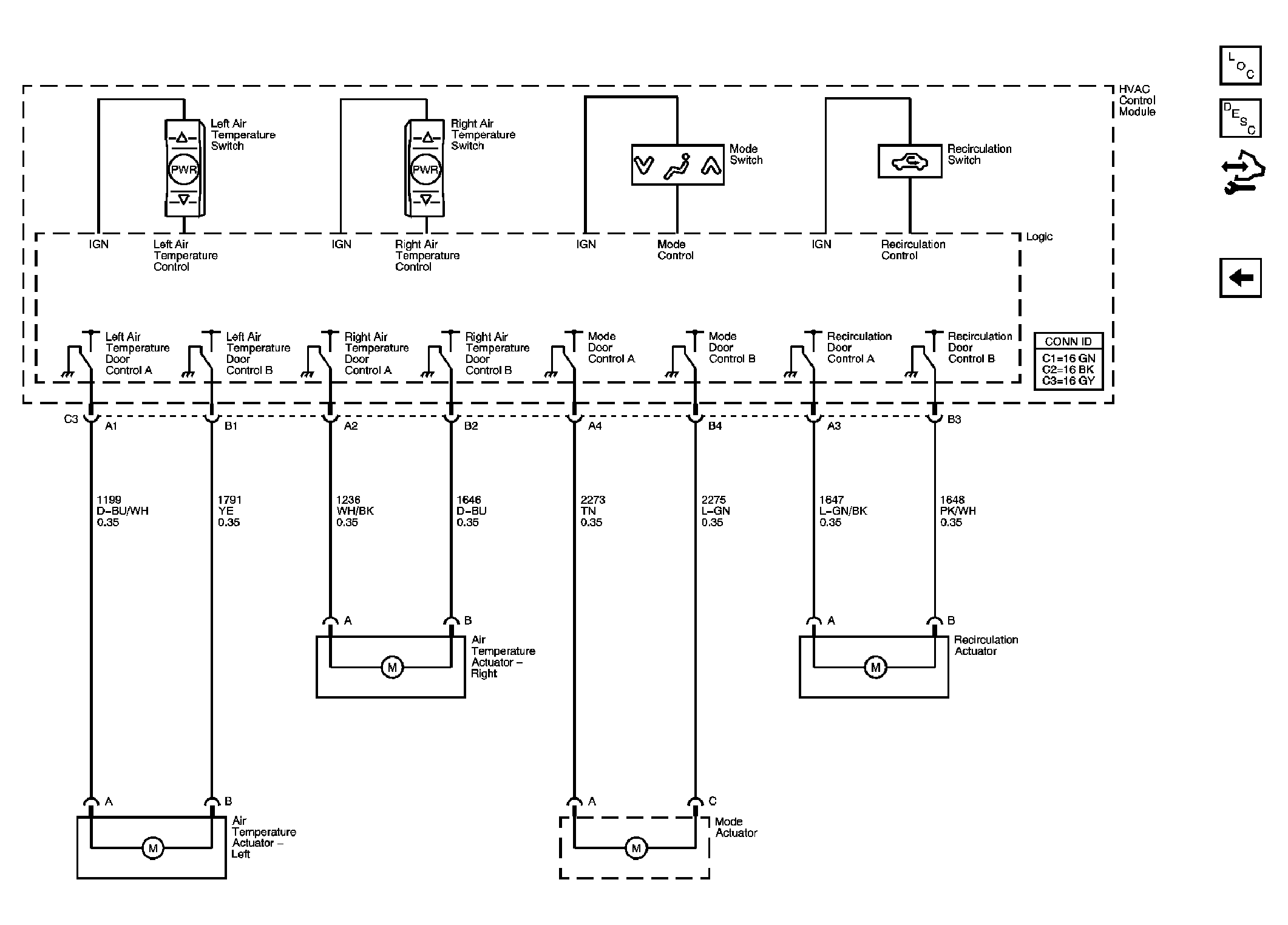

Fig 4: Mode and Air Temperature Controls Schematic
GM1892727Courtesy of GENERAL MOTORS CORP.
