Automatic Transmission Controls Schematics

WARNING: This page is about a different variant/trim than selected.

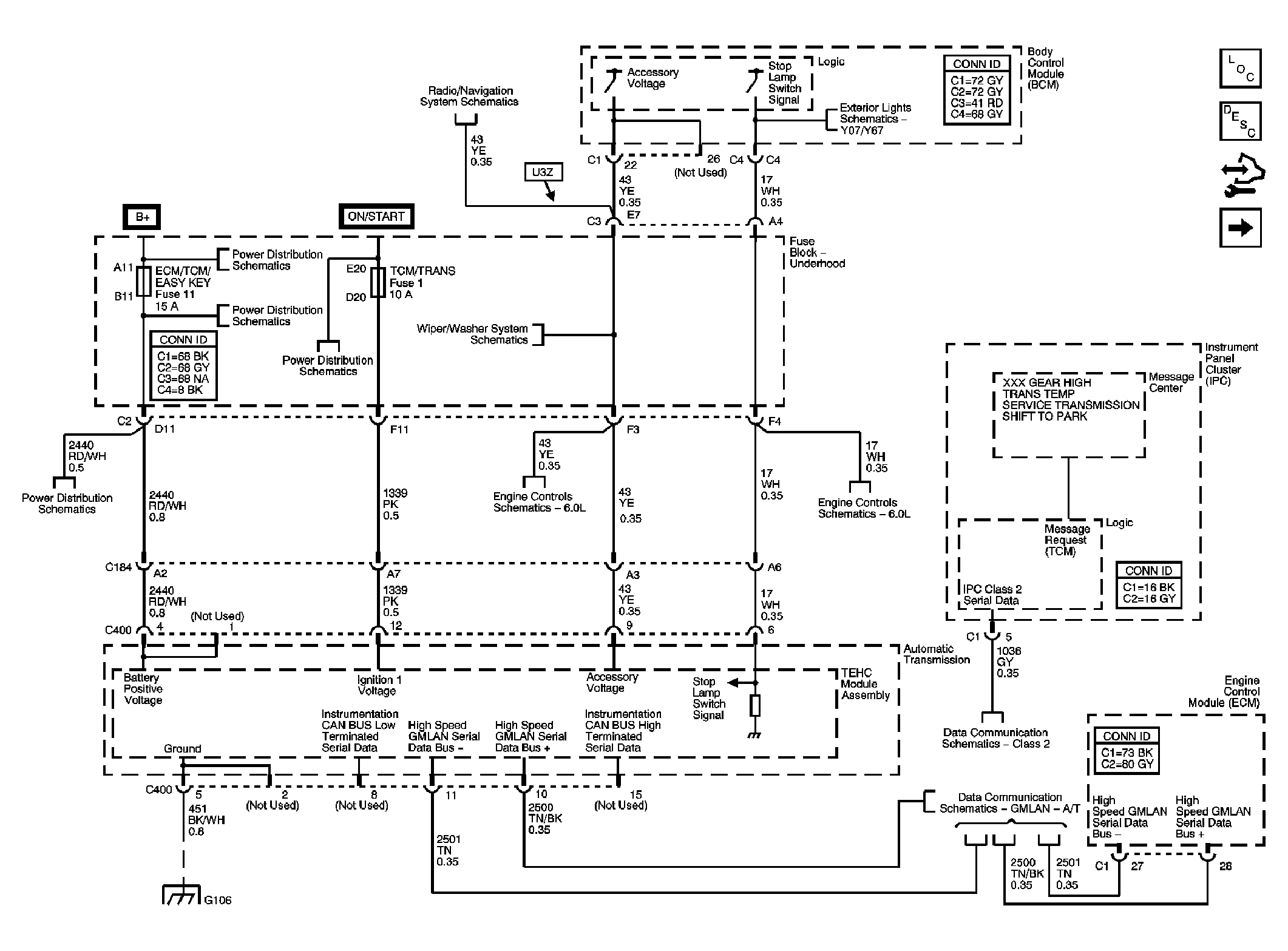

Fig 1: Power, Ground, Serial Data, and Stop lamp Switch Signal Schematic
GM1892678Courtesy of GENERAL MOTORS CORP.

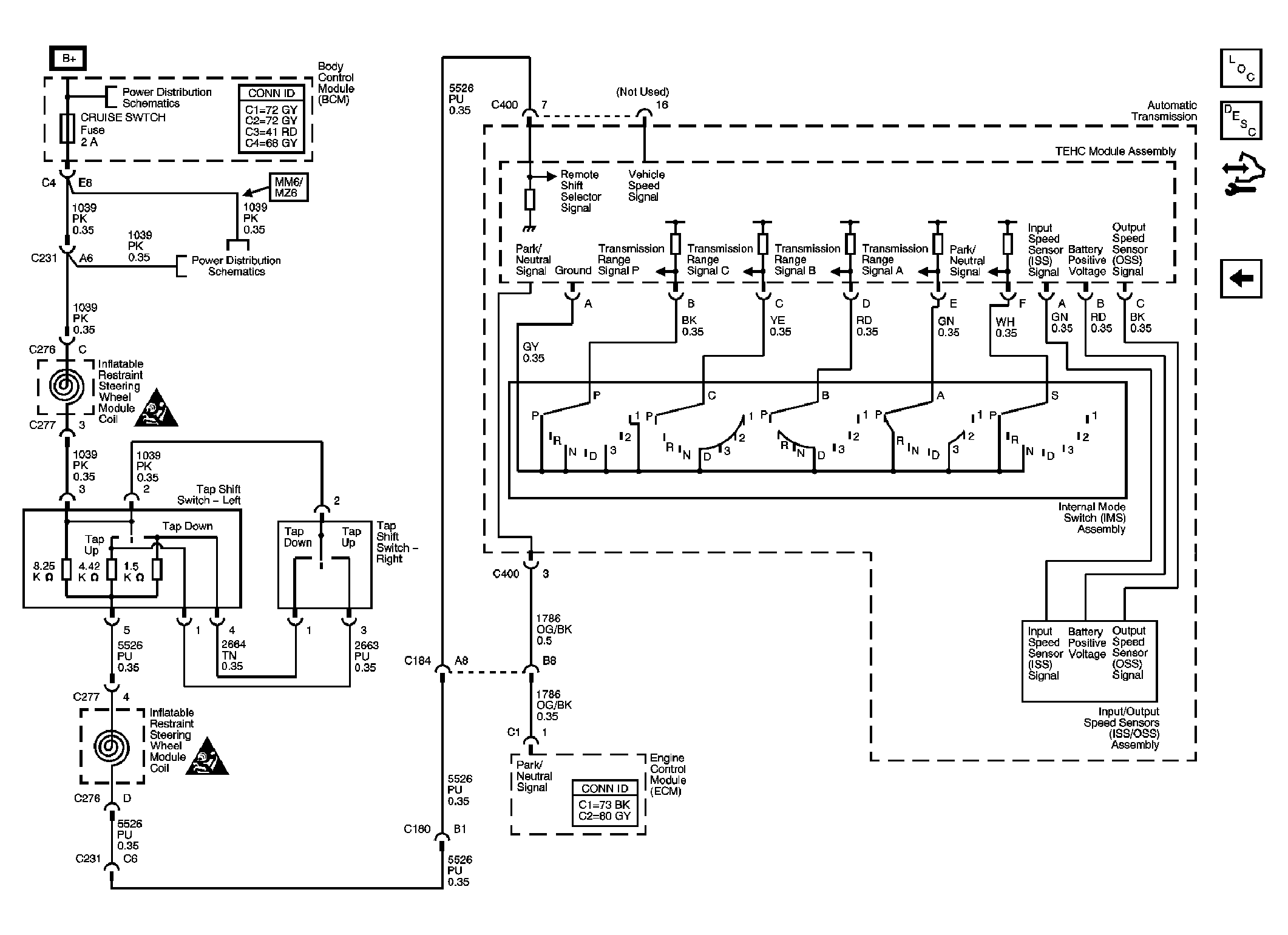

Fig 2: Input/Output Speed Sensors (ISS/OSS), Internal Mode Switch (IMS), and TAP Shift Switches Schematic
GM1892681Courtesy of GENERAL MOTORS CORP.
