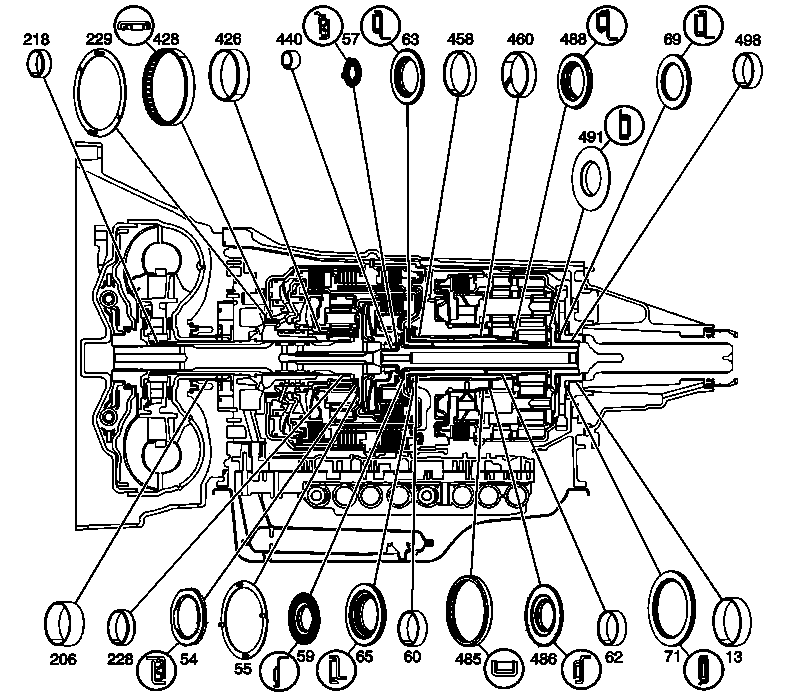

Bushing, Bearing, and Washer Locations (6L80)
WARNING: This page is about a different variant/trim than selected.
| Callout | Component Name |
|---|---|
| 13 | Output Shaft Bushing |
| 54 | Input Sun Gear Thrust Bearing |
| 55 | Input Sun Gear Thrust Washer |
| 57 | Turbine Shaft Thrust Bearing Assembly |
| 59 | 4-5-6 Clutch Hub Thrust Bearing Assembly |
| 60 | Output Carrier Inner Sun Gear Shaft (Front) Bushing |
| 62 | Output Carrier Inner Sun Gear Shaft Bushing |
| 63 | 1-2-3-4 Clutch Hub Thrust Bearing Assembly |
| 65 | 2-6 and 3-5 Reverse Clutch Hub Thrust Bearing Assembly |
| 69 | Output Carrier Thrust Bearing Assembly |
| 71 | Output Shaft Thrust Bearing Assembly |
| 206 | Torque Converter Bushing |
| 218 | Turbine Shaft Front Bushing |
| 228 | Turbine Shaft Rear Bushing |
| 229 | 1-2-3-4 and 3-5 Reverse Clutch Housing Thrust Washer |
| 426 | 1-2-3-4 and 3-5 Reverse Clutch Housing Rear Bushing |
| 428 | 1-2-3-4 and 3-5 Reverse Clutch Bearing Assembly |
| 440 | Output Carrier Shaft Housing Bushing |
| 458 | Output Carrier Outer Sun Gear Shaft (Front) Bushing |
| 460 | Output Carrier Outer Sun Gear Shaft Rear Bushing |
| 485 | Center Support Roller Bearing Assembly |
| 486 | Output Carrier Front Sun Gear Thrust Bearing Assembly |
| 488 | Output Carrier Front Sun Gear Rear Thrust Bearing Assembly |
| 491 | Output Carrier Rear Sun Gear Thrust Bearing - Captured |
| 498 | Output Carrier Bushing |
