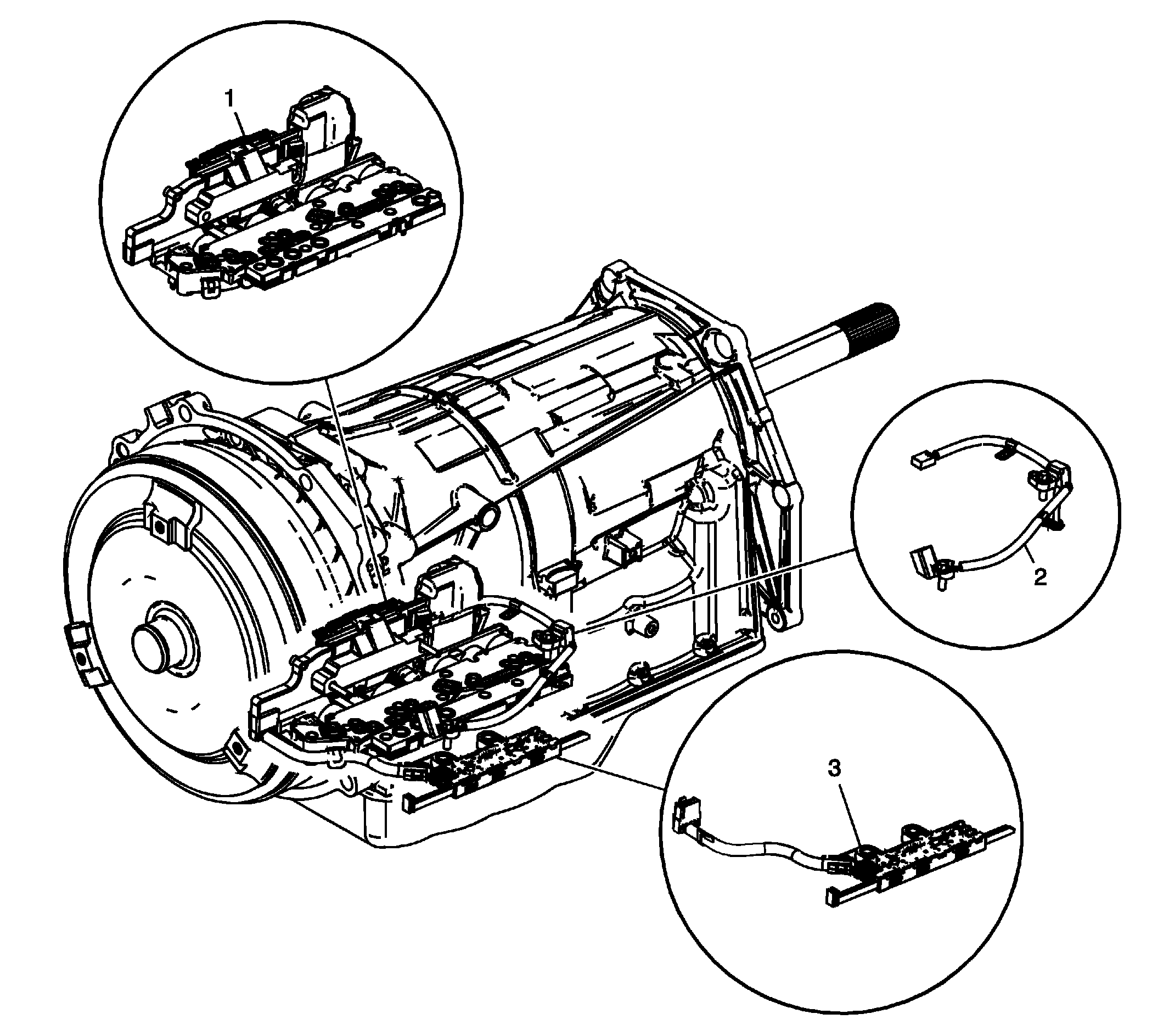

Automatic Transmission Electronic Component Views
WARNING: This page is about a different variant/trim than selected.
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Control Solenoid (with Body and TCM) Valve Assembly |
| 2 |
A/Trans Input and Output Speed Sensor Assembly |
| 3 |
A/Trans Manual Shift Shaft Position Switch Assembly |
