Transmission Fluid Pan Installation
WARNING: This page is about a different variant/trim than selected.

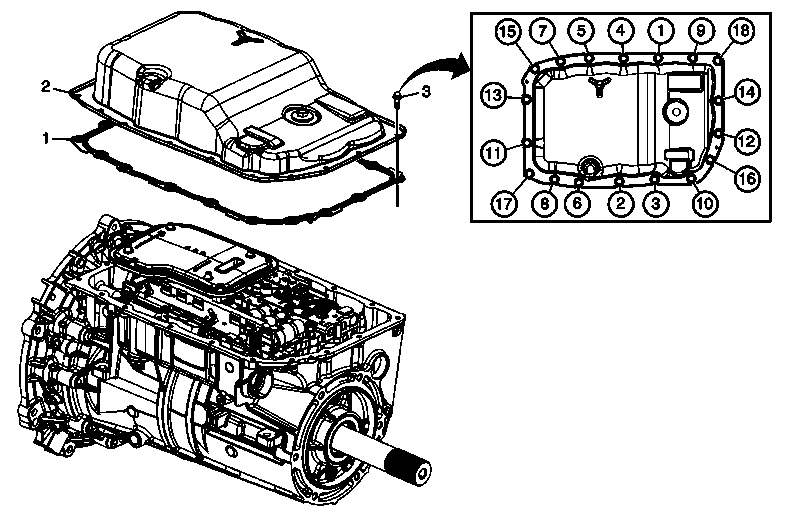

| Callout | Component Name |
|---|---|
| 1 | Fluid Pan Gasket Tip: The fluid pan gasket is reusable. Inspect the gasket to determine if it may be reused. If the gasket is stuck to the case or pan, it should be replaced. |
| 2 | Fluid Pan Assembly |
| 3 | Fluid Pan Bolt M6 x 20 (Qty: 18)
NOTE:
Refer to Fastener Notice
. Procedure: Tighten in the sequence shown. Tighten: 9 N.m (80 lb in) |
