Output Shaft Disassemble

WARNING: This page is about a different variant/trim than selected.

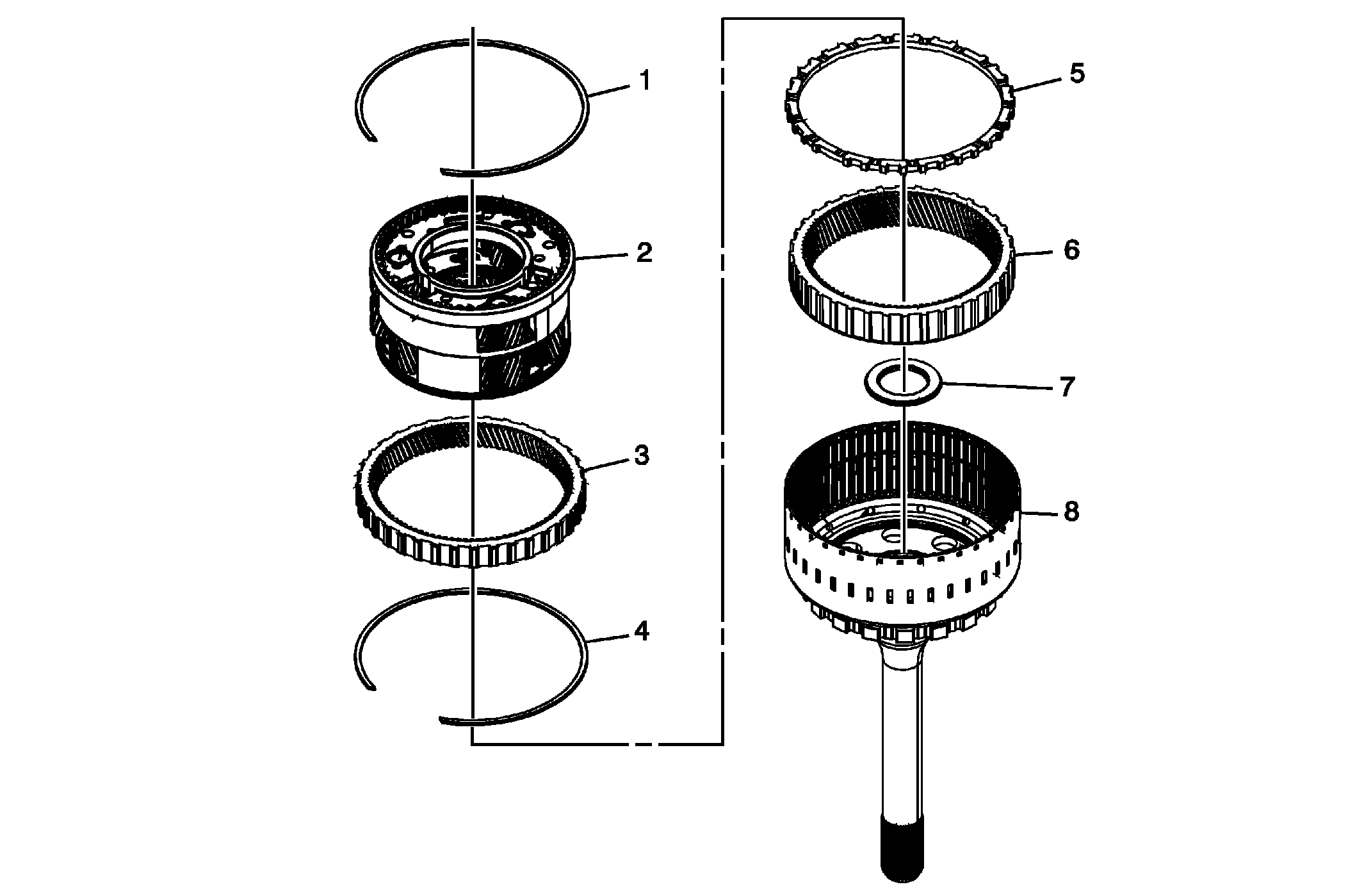

Fig 1: View Of Output Shaft Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Inspect each component and replace as necessary.
1	Output Carrier Internal Gear Retaining Ring
2	Output Carrier Assembly
3	Output Carrier Internal Front Gear
4	Output Carrier Internal Gear Retaining Ring
5	Output Carrier Internal Gear Spacer
6	Output Carrier Internal Rear Gear
7	Output Carrier Thrust Bearing Assembly
8	Output Shaft Assembly
