Output Carrier Assembly Overhaul
WARNING: This page is about a different variant/trim than selected.

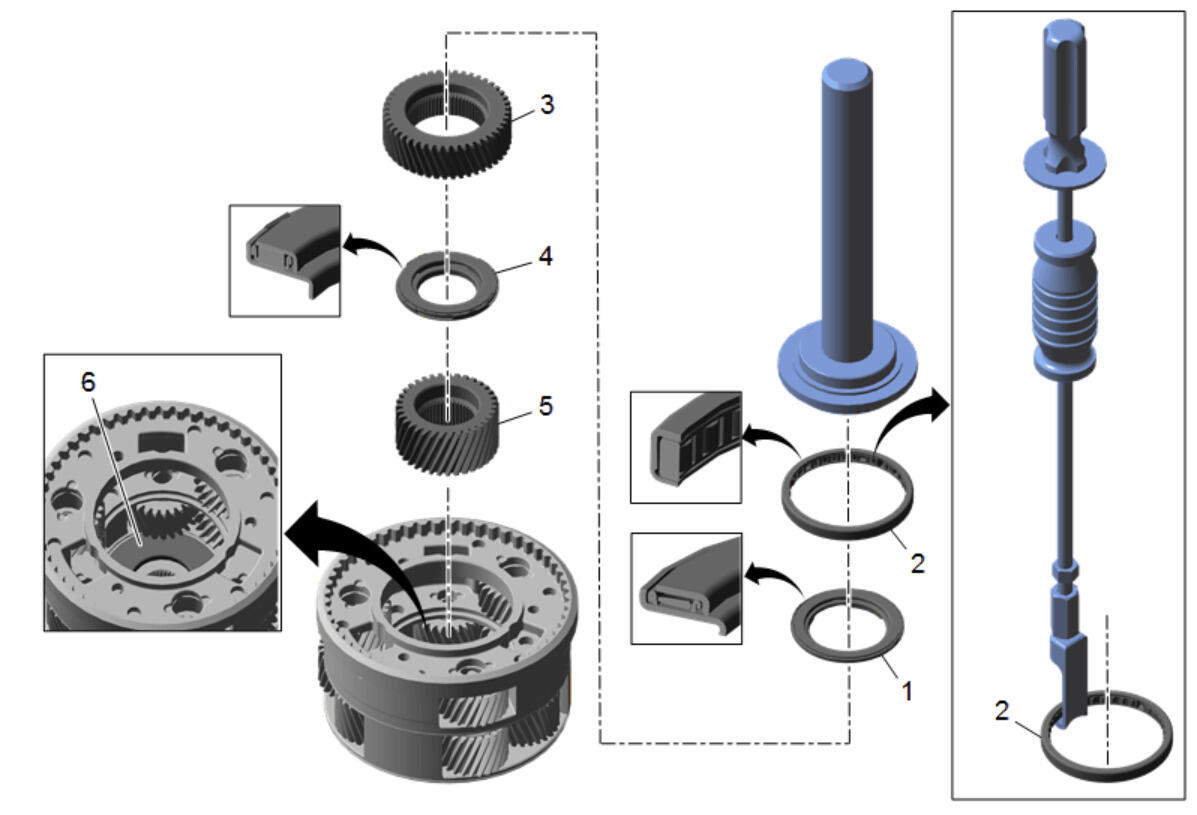

| Callout | Component Name |
|---|---|
| 1 | Output Carrier Front Sun Gear Thrust Bearing Assembly |
| 2 | Center Support Roller Bearing
NOTE:
Do not reuse the center support roller bearing. Install a NEW center support roller bearing. Reusing an old bearing may result in damage to the output carrier. Tip: The thick side of the bearing shell faces up. Special Tools
|
| 3 | Output Carrier Front Sun Gear
NOTE:
Install the gear chamfer side up. Failure to install the gear chamfer side up may result in transmission damage.
|
| 4 | Output Carrier Front Sun Gear Rear Thrust Bearing Assembly |
| 5 | Output Carrier Rear Sun Gear
NOTE:
Install the gear chamfer side up. Failure to install the gear chamfer side up may result in transmission damage.
|
| 6 | Output Carrier Rear Sun Gear Bearing Assembly Tip: Inspect for damage only. Do not remove. The bearing assembly is not a serviceable component. |
