Manual Shift Shaft Seal Replacement

WARNING: This page is about a different variant/trim than selected.

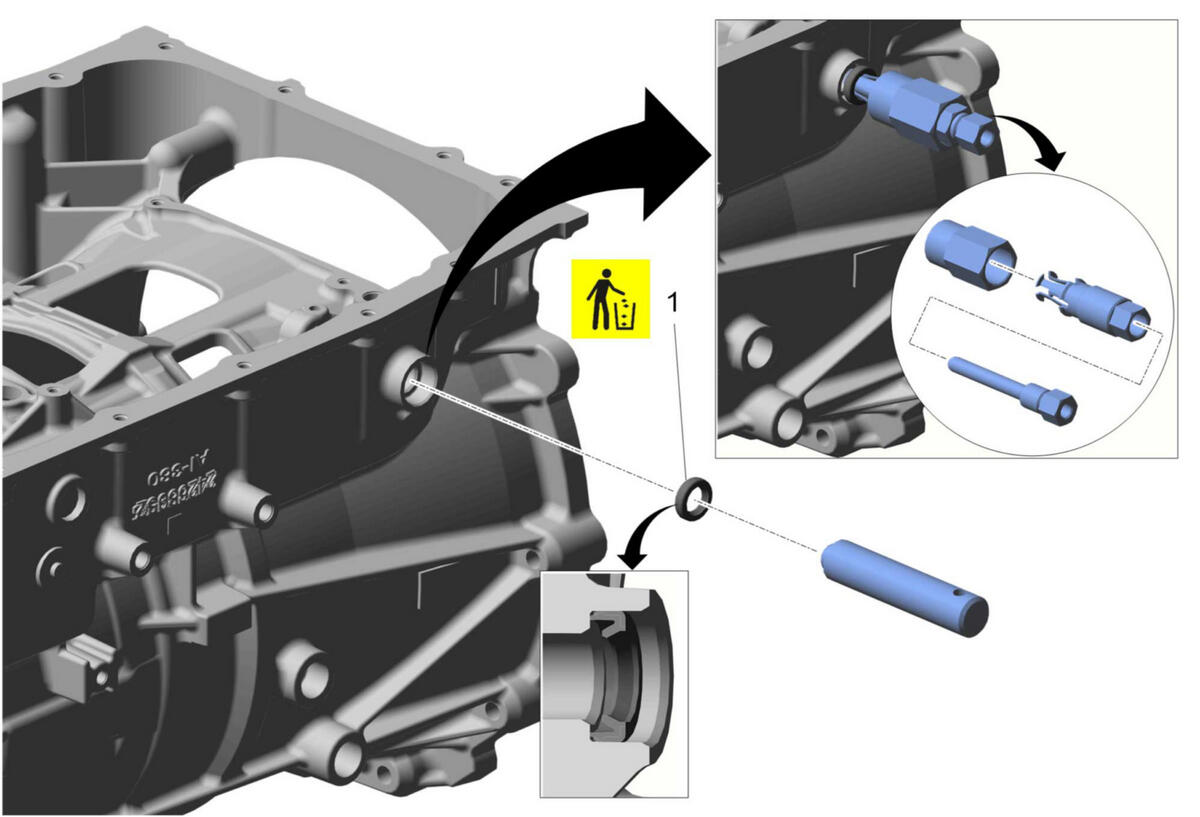

Fig 1: View Of Manual Shift Shaft Seal

Courtesy of GENERAL MOTORS CORP.

Callout	Component Procedure
1	Manual Shift Shaft Seal NOTE: Do not damage the case bore during removal of the manual shift shaft seal. NOTE: When installing the seal, ensure the seal lip is firmly seated against the case bore surface. Do not allow the seal lip to be crushed, or a leak may result. NOTE: Refer to Seal Reuse Notice . Special Tools DT 47770 Seal Installer. See Special Tools . J 45201 Cooler Line Seal Remover. See Special Tools .

Callout

Component Procedure

Manual Shift Shaft Seal

NOTE: Do not damage the case bore during removal of the manual shift shaft seal.

NOTE: When installing the seal, ensure the seal lip is firmly seated against the case bore surface. Do not allow the seal lip to be crushed, or a leak may result.

NOTE: Refer to Seal Reuse Notice .

Special Tools

DT 47770 Seal Installer. See Special Tools .
J 45201 Cooler Line Seal Remover. See Special Tools .
