Fluid Pump Selective Measurement

WARNING: This page is about a different variant/trim than selected.

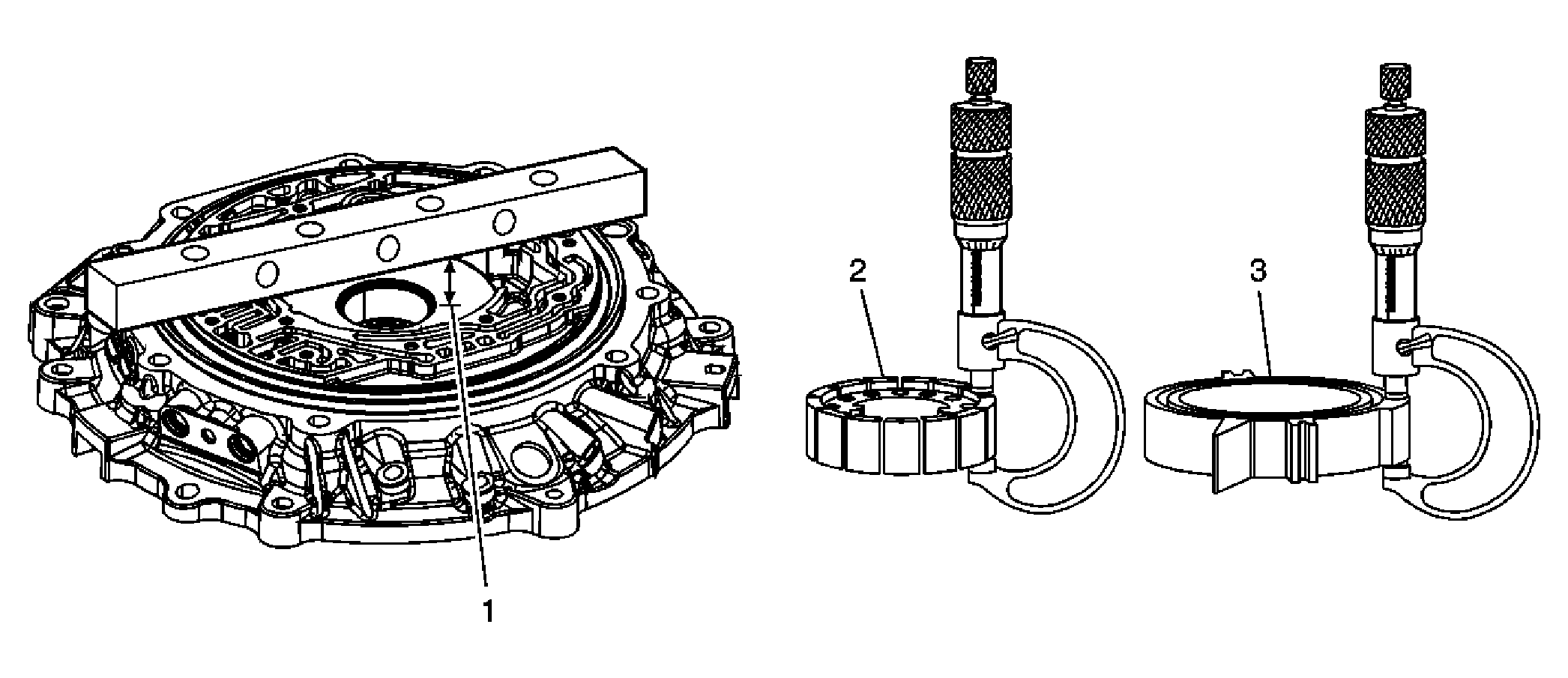

Fig 1: Measuring Fluid Pump Selective

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Pump Rotor Cavity Tip: Measure the distance from the bottom of the gage bar to the bottom of the pump rotor cavity. Refer to Fluid Pump Selective Specifications .
2	A/Trans Fluid Pump Rotor Tip: Refer to Fluid Pump Selective Specifications to select the correct rotor.
3	A/Trans Fluid Pump Slide Tip: Refer to Fluid Pump Selective Specifications to select the correct slide.
