Fluid Cooler Pipe Seal Replacement

WARNING: This page is about a different variant/trim than selected.

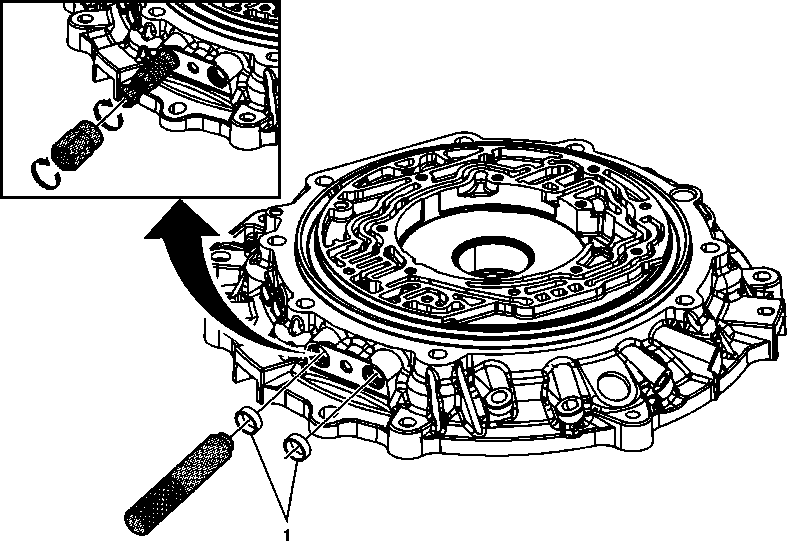

Fig 1: Replacing Oil Cooler Pipe Seals

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Trans Fluid Cooler Pipe Fitting Seal (Qty: 2) Special Tools DT 47770 Seal Installer. See Special Tools . J 45201 Cooler Line Seal Remover. See Special Tools .
