Case Extension Assembly Removal

WARNING: This page is about a different variant/trim than selected.

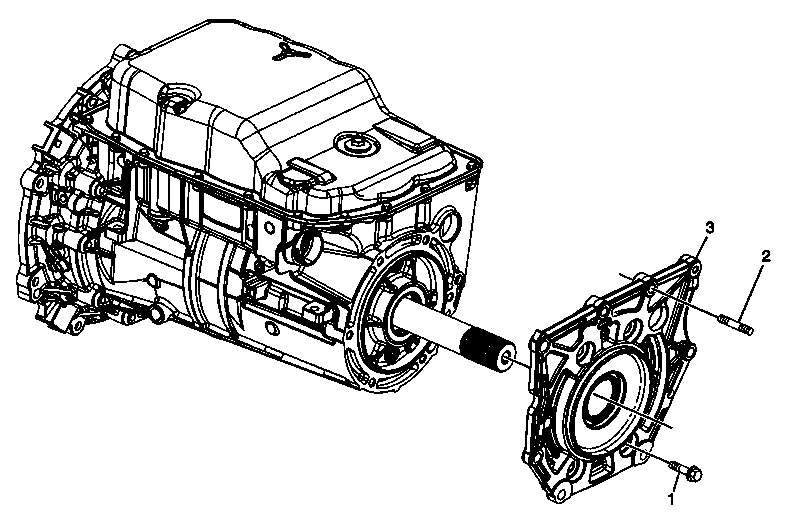

Fig 1: View Of Case Extension Assembly
GM1555284Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Bolt M10 x 40 (Qty: 6)
2 Case Extension Studs (Qty: 2)
3 Case Extension
