1-2-3-4 and 3-5 Reverse Clutch Assembly and 4-5-6 Clutch Assembly Removal
WARNING: This page is about a different variant/trim than selected.

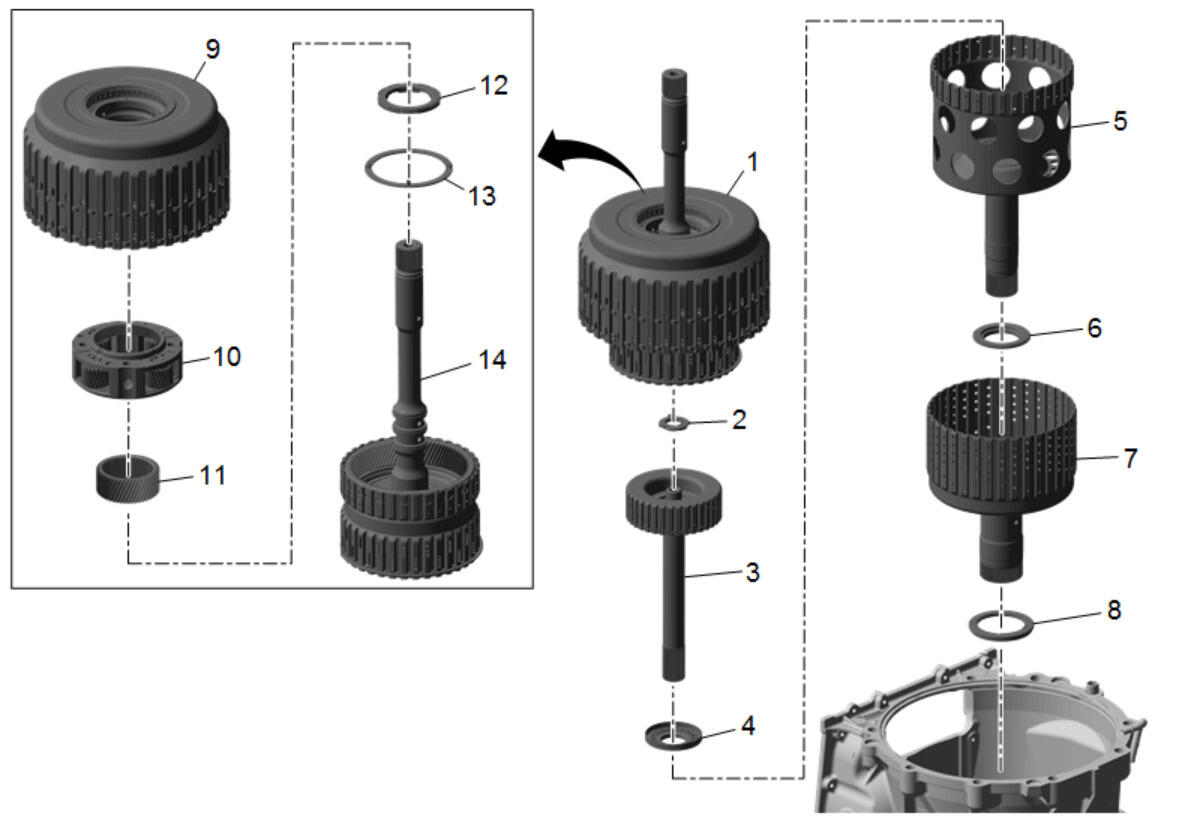

| Callout | Component Name |
|---|---|
| 1 | 1-2-3-4 and 3-5 Reverse Clutch Assembly and 4-5-6 (With Turbine Shaft) Clutch Assembly |
| 2 | Turbine Shaft Thrust Bearing Assembly |
| 3 | 4-5-6 Clutch (With Output Carrier Shaft and Dampener) Hub Assembly |
| 4 | 4-5-6 Clutch Hub Thrust Bearing Assembly |
| 5 | 1-2-3-4 Clutch (With Output Carrier Inner Sun Gear Shaft) Hub Assembly |
| 6 | 1-2-3-4 Clutch Hub Thrust Bearing Assembly |
| 7 | 2-6 and 3-5 Reverse Clutch (With Output Carrier Outer Sun Gear Shaft) Hub Assembly |
| 8 | 2-6 and 3-5 Reverse Clutch Hub Thrust Bearing Assembly |
| 9 | 1-2-3-4 and 3-5 Reverse Clutch Assembly |
| 10 | Input Carrier Assembly |
| 11 | Input Sun Gear |
| 12 | Input Sun Gear Thrust Bearing |
| 13 | Input Sun Gear Thrust Washer |
| 14 | 4-5-6 (With Turbine Shaft) Clutch Assembly |
