Instrument Cluster Schematics

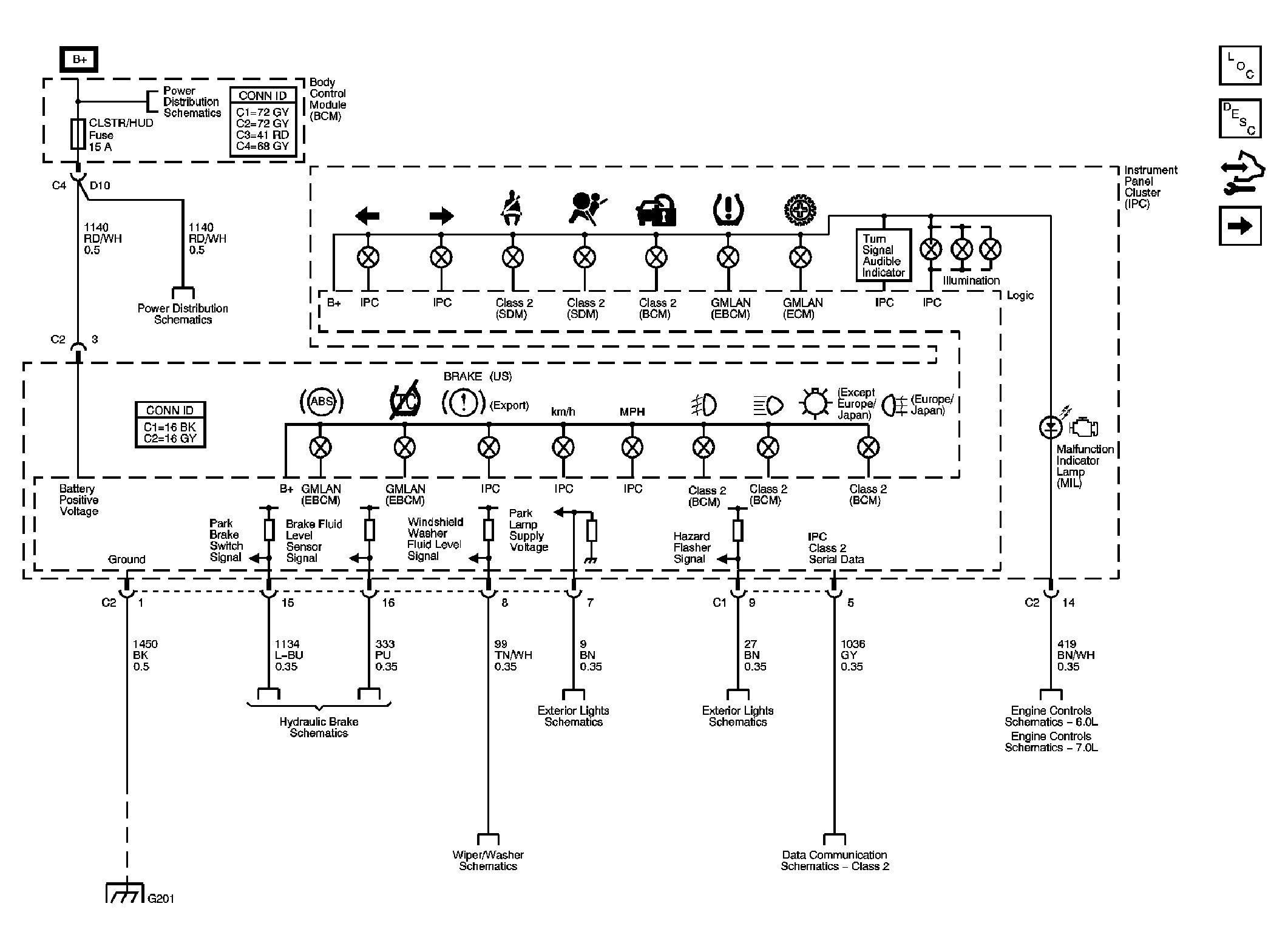

Fig 1: Power, Ground, Indicators, and Serial Data Schematic
GM1892731Courtesy of GENERAL MOTORS CORP.

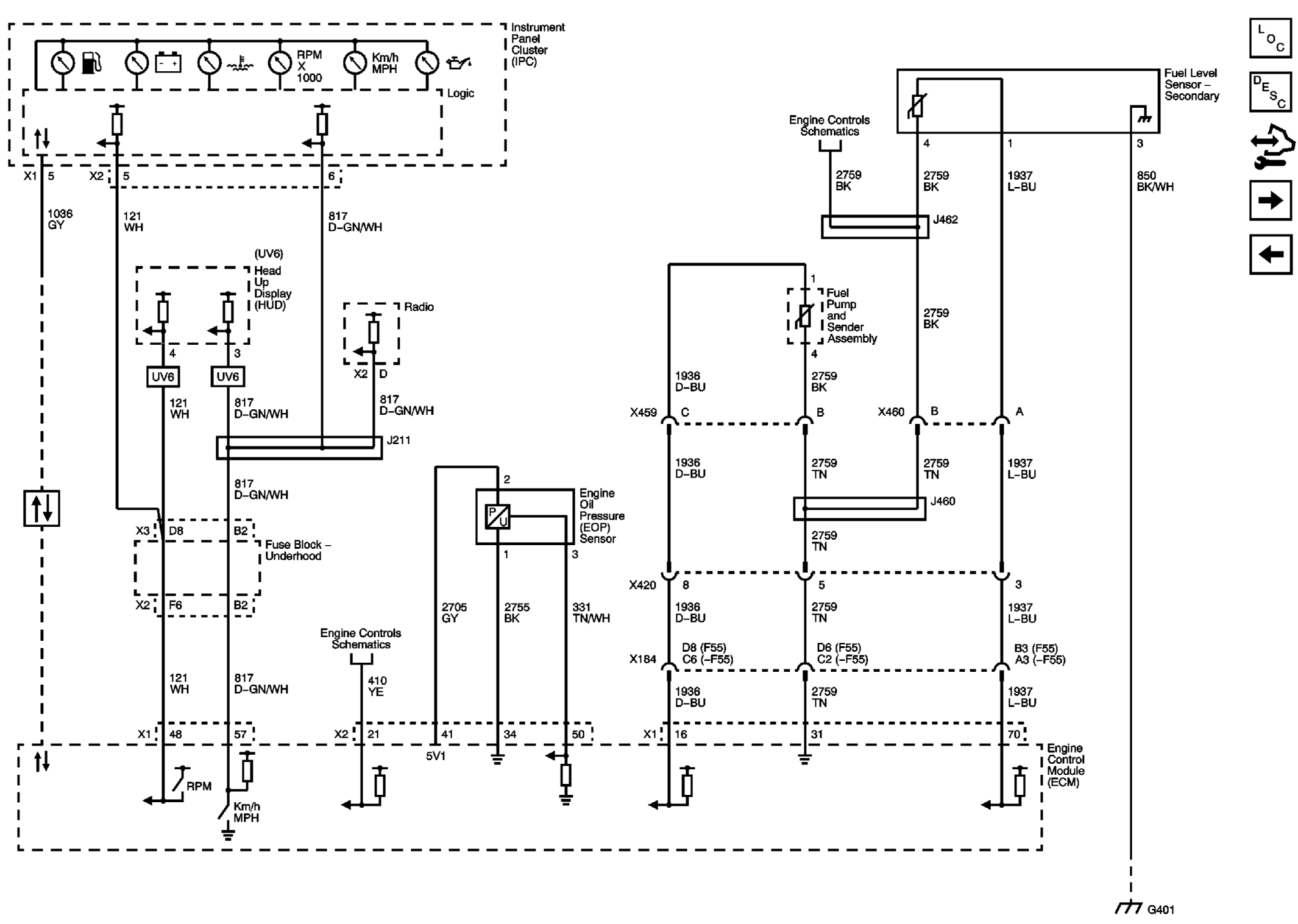

Fig 2: Gages Schematic
GM1892734Courtesy of GENERAL MOTORS CORP.

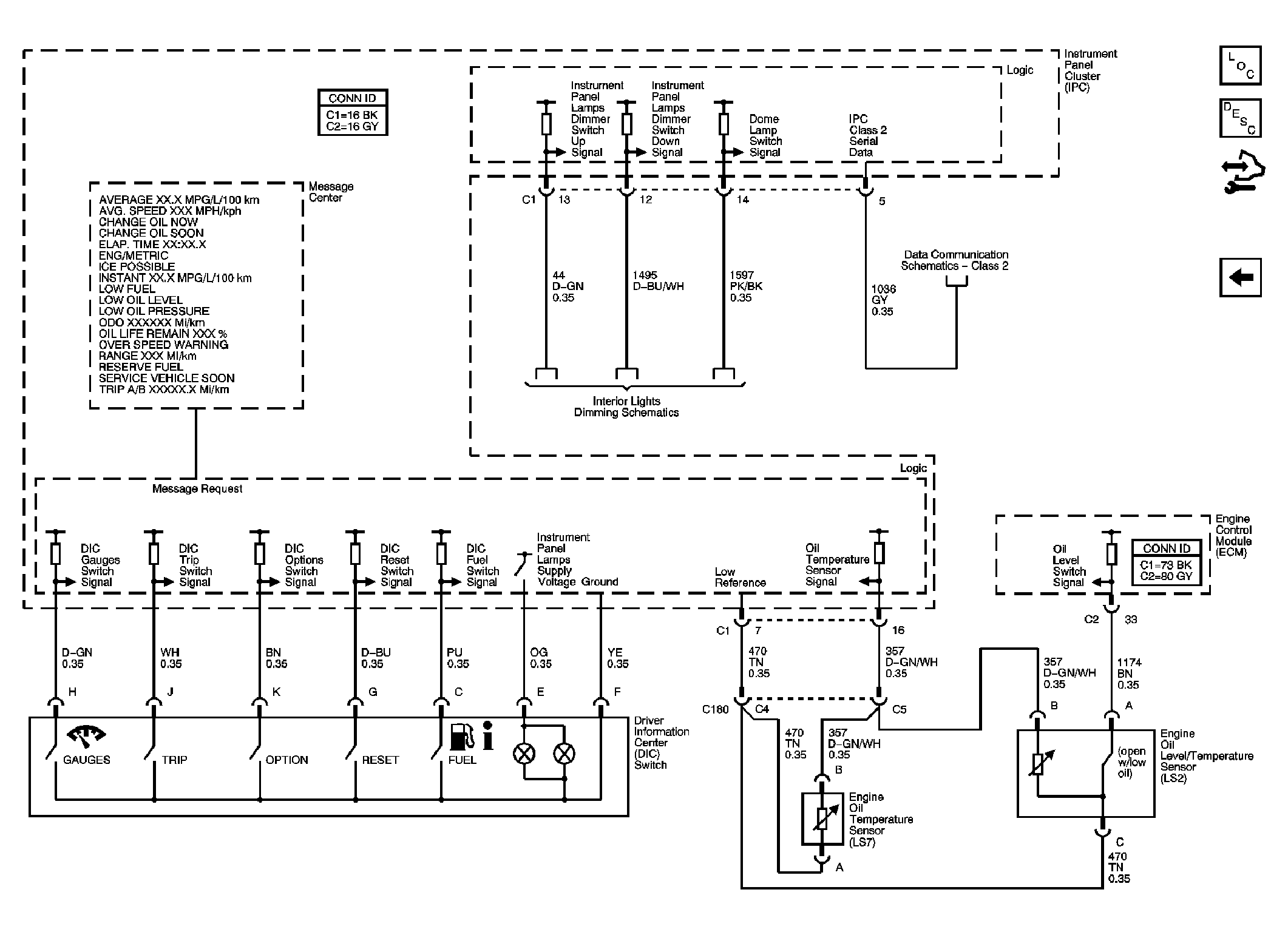

Fig 3: Messages Schematic
GM1892736Courtesy of GENERAL MOTORS CORP.
