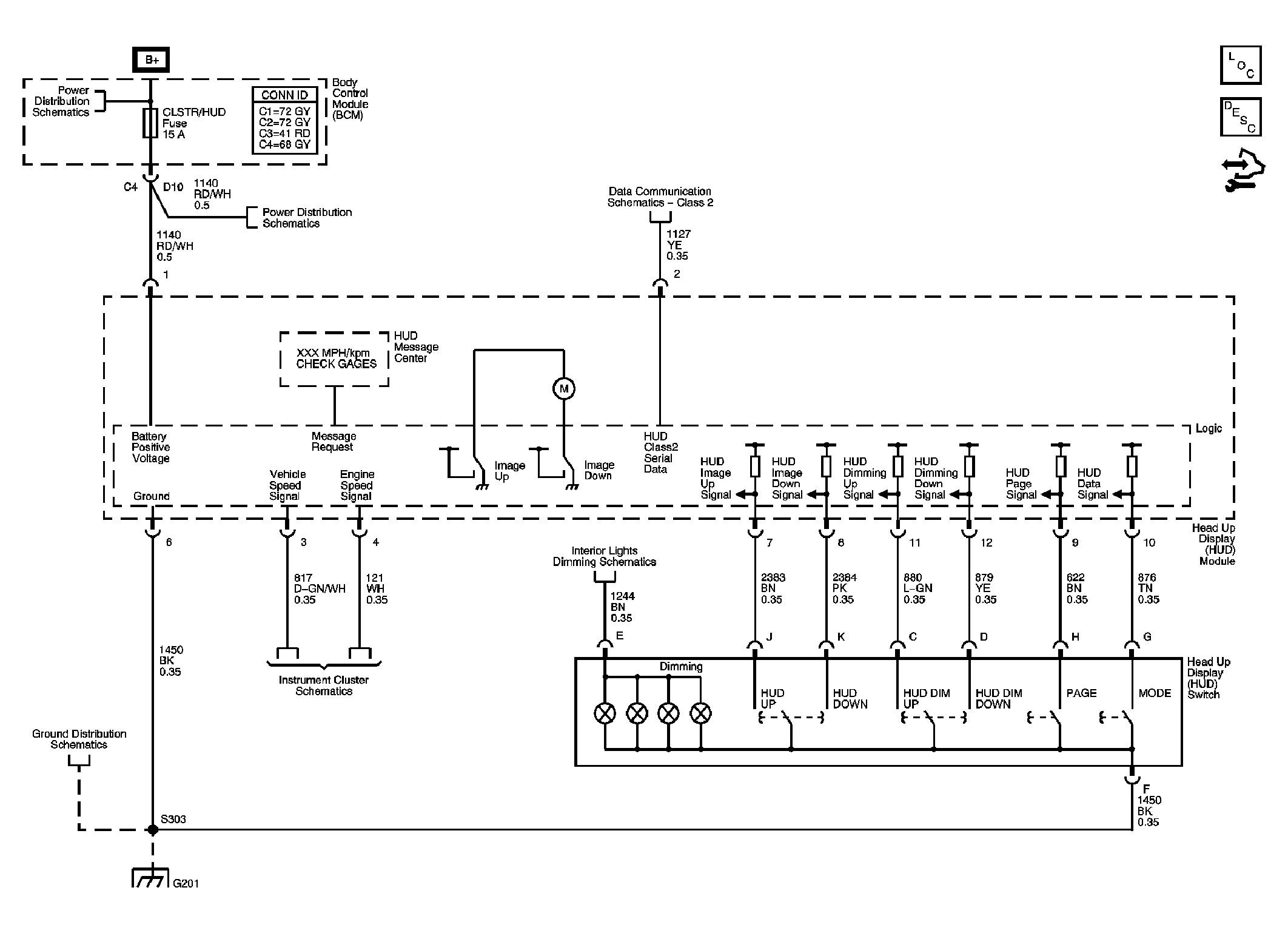

Home >> Chevrolet >> 2008 >> Corvette Base, 2D Convertible, Standard >> Repair and Diagnosis >> Electrical >> Gauges >> Instrument Panel System Displays & Gages >> Schematic and Routing Diagrams >> Head Up Display Schematics
