Folding Top Schematics

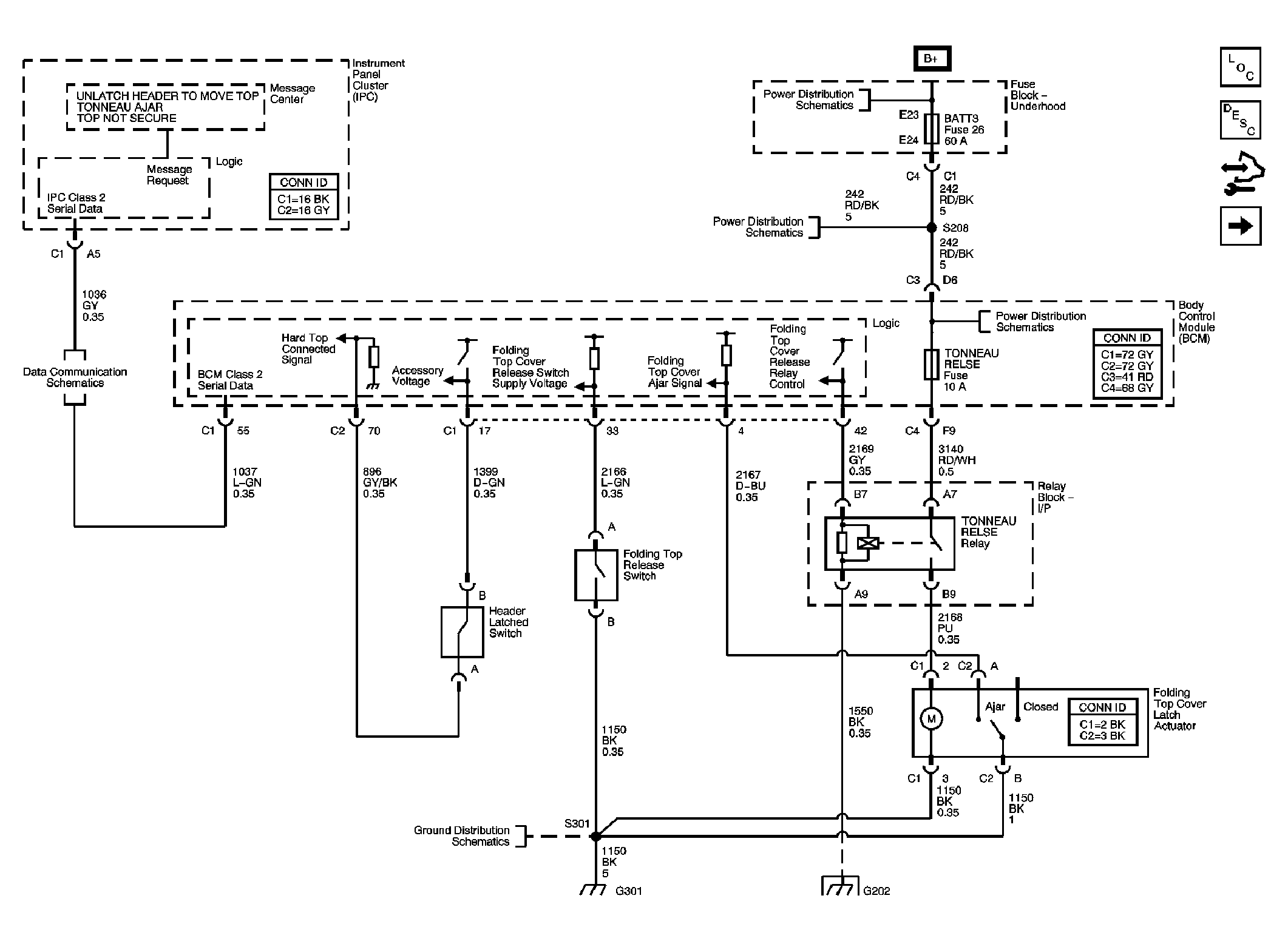

Fig 1: Manual Folding Top (Convertible w/o CM7) Schematic

Courtesy of GENERAL MOTORS CORP.

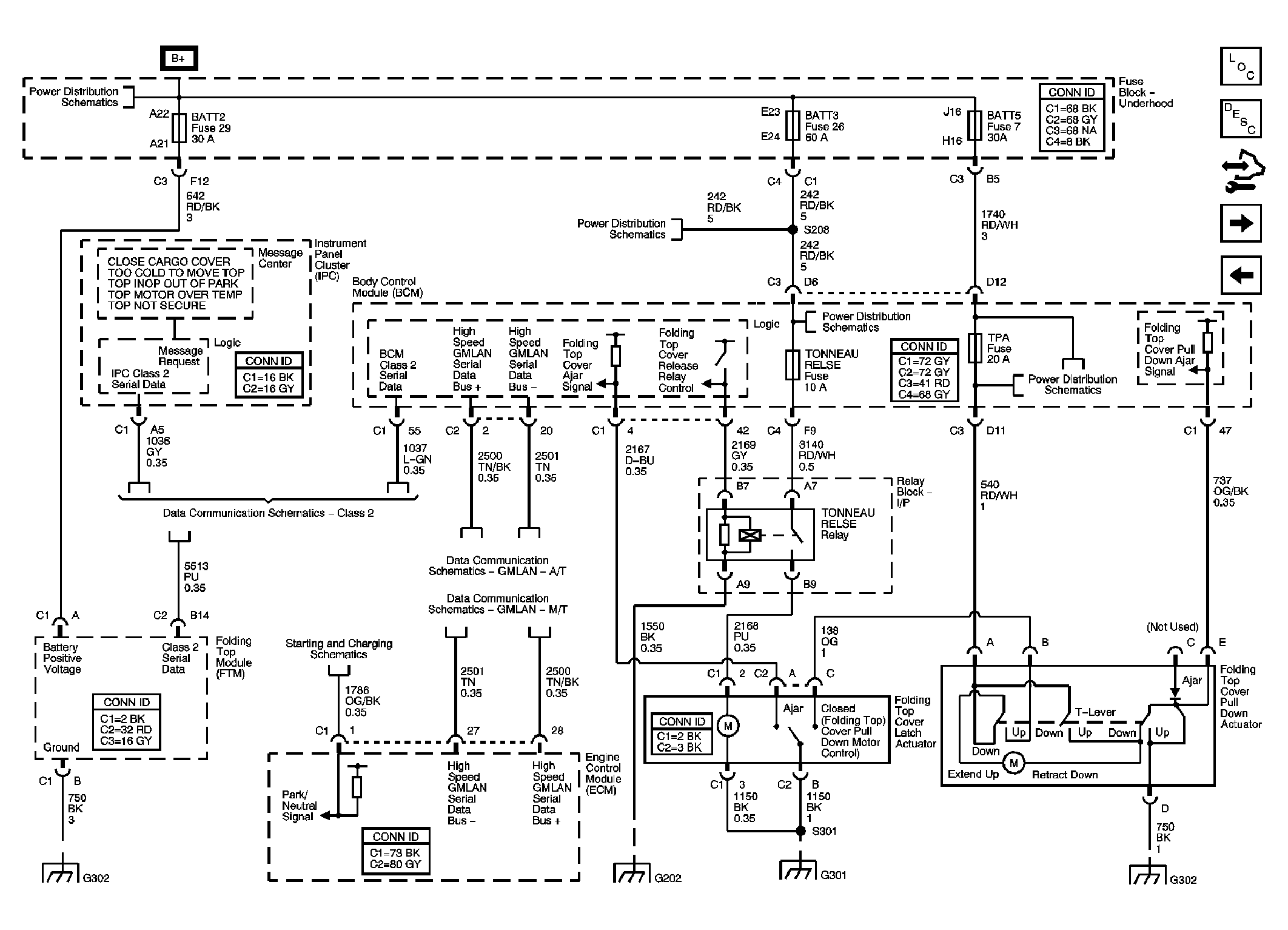

Fig 2: Power, Ground, Serial Data, and Lid Controls (CM7) Schematic

Courtesy of GENERAL MOTORS CORP.

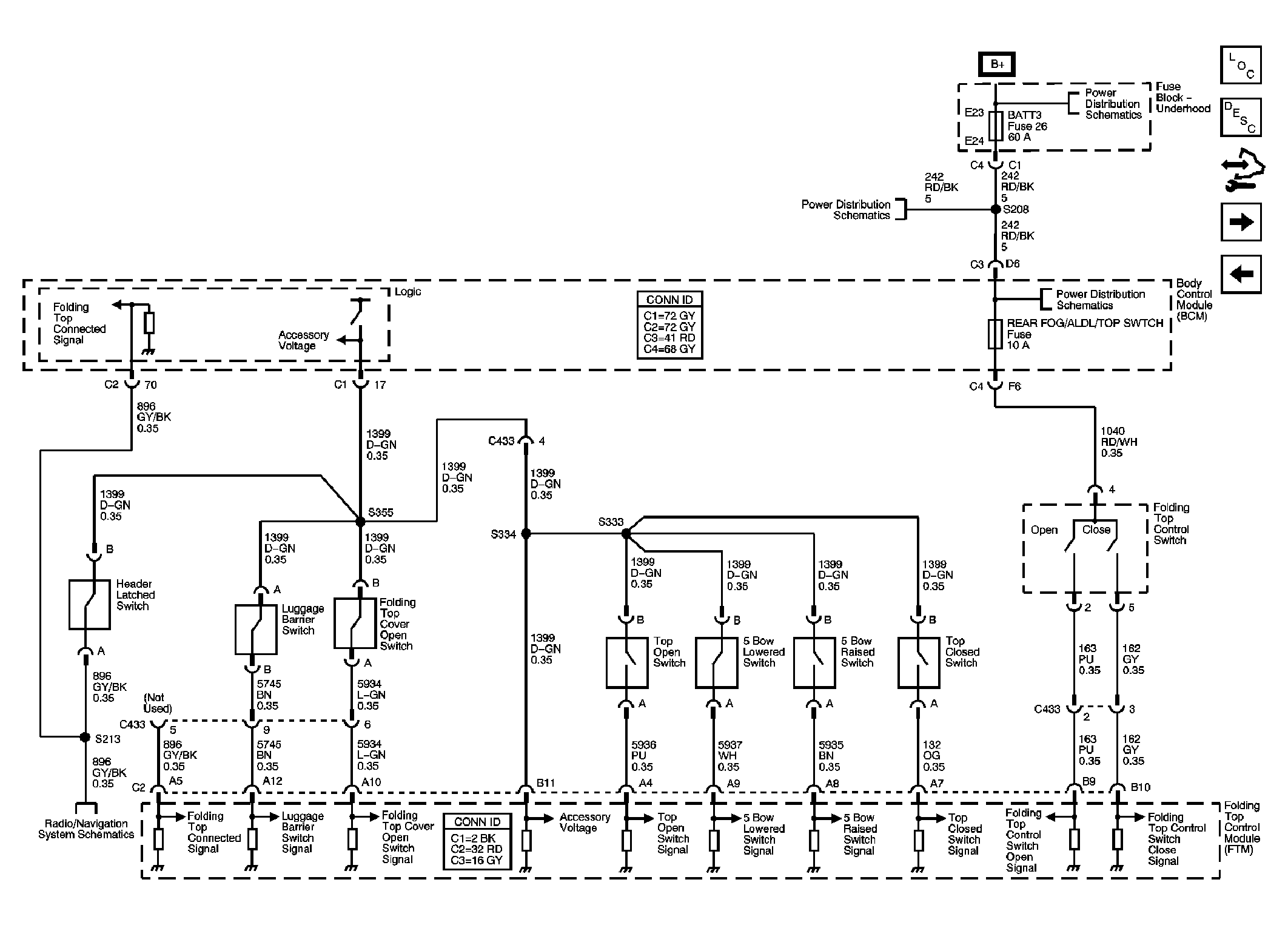

Fig 3: Switches (CM7) Schematic

Courtesy of GENERAL MOTORS CORP.

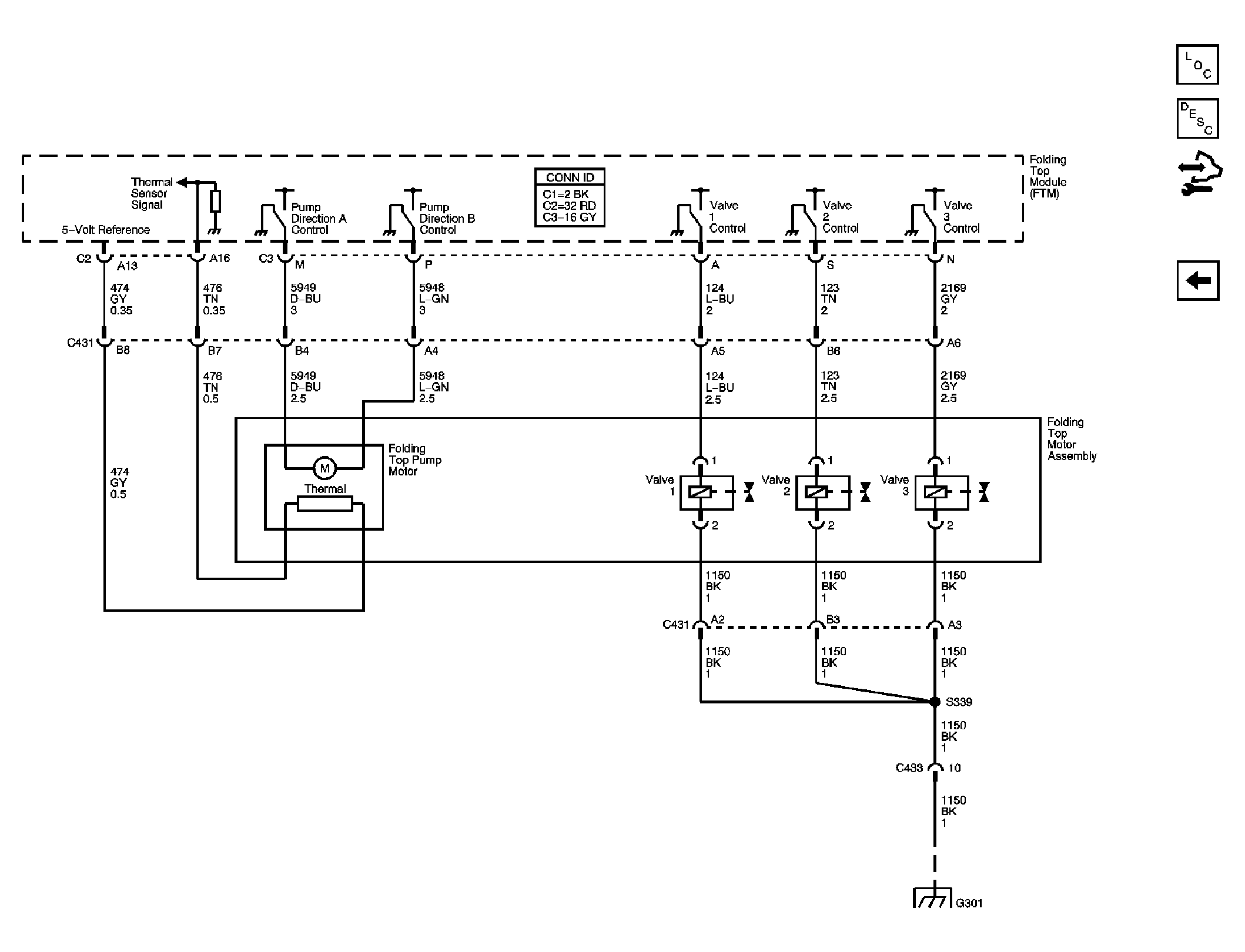

Fig 4: Pump and Valves (CM7) Schematic

Courtesy of GENERAL MOTORS CORP.
