Passenger Seat Schematics

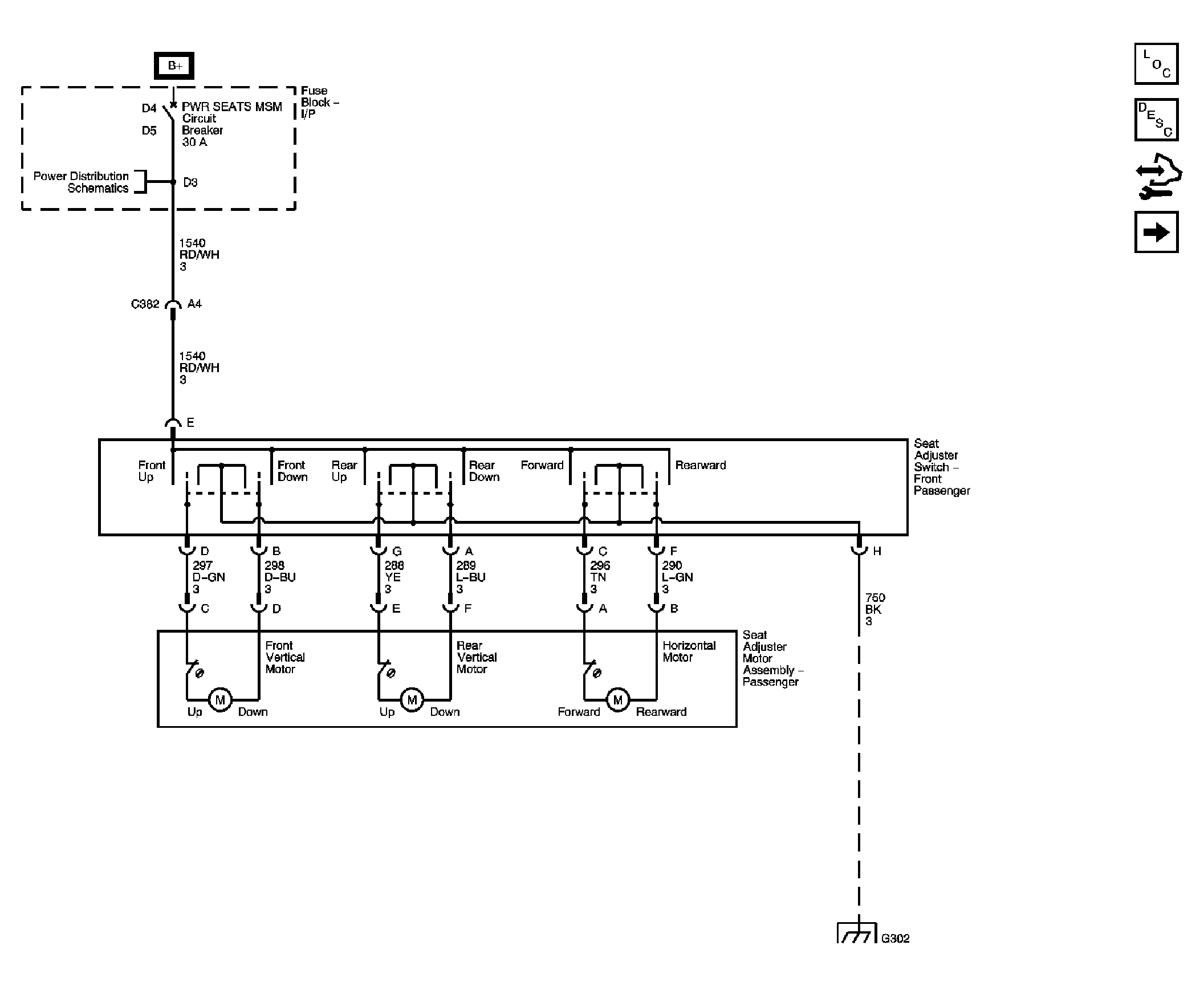

Fig 1: 6-Way Power Seat Schematic

GM1892857

Courtesy of GENERAL MOTORS CORP.

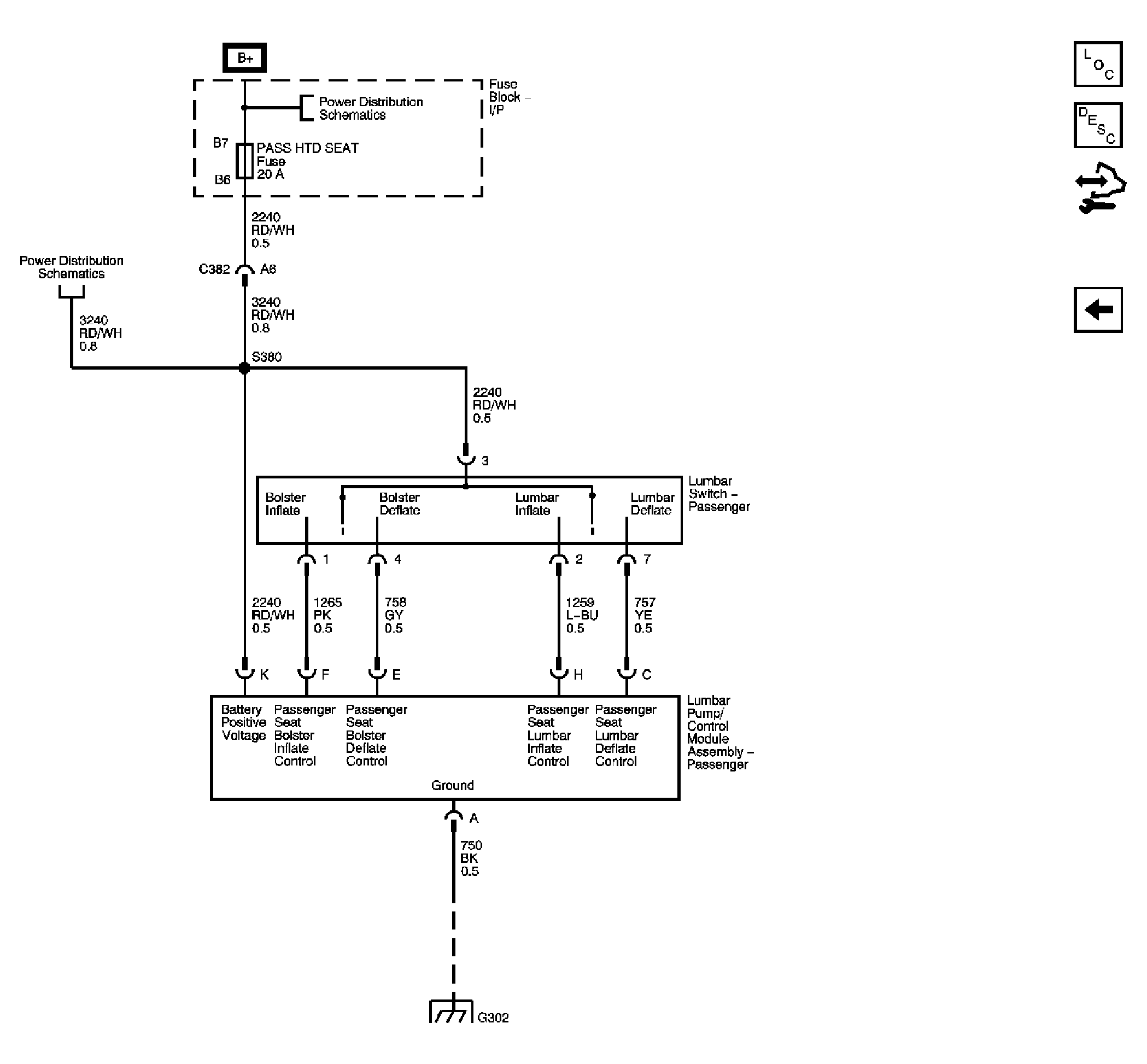

Fig 2: Lumbar Support Schematic

GM1892859

Courtesy of GENERAL MOTORS CORP.
