Driver Seat Schematics

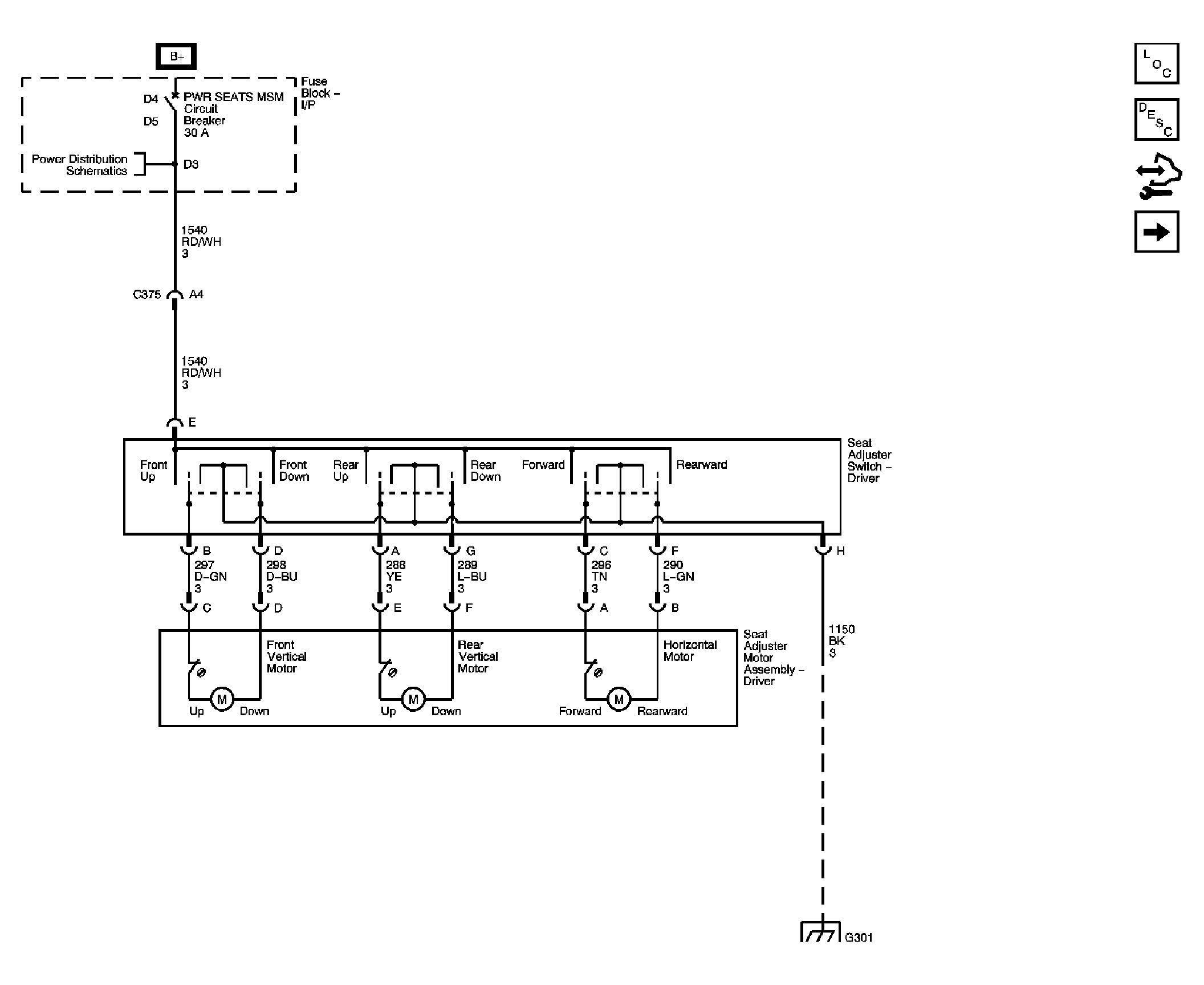

Fig 1: 6-Way Manual Power Seat Schematic
GM1892851Courtesy of GENERAL MOTORS CORP.

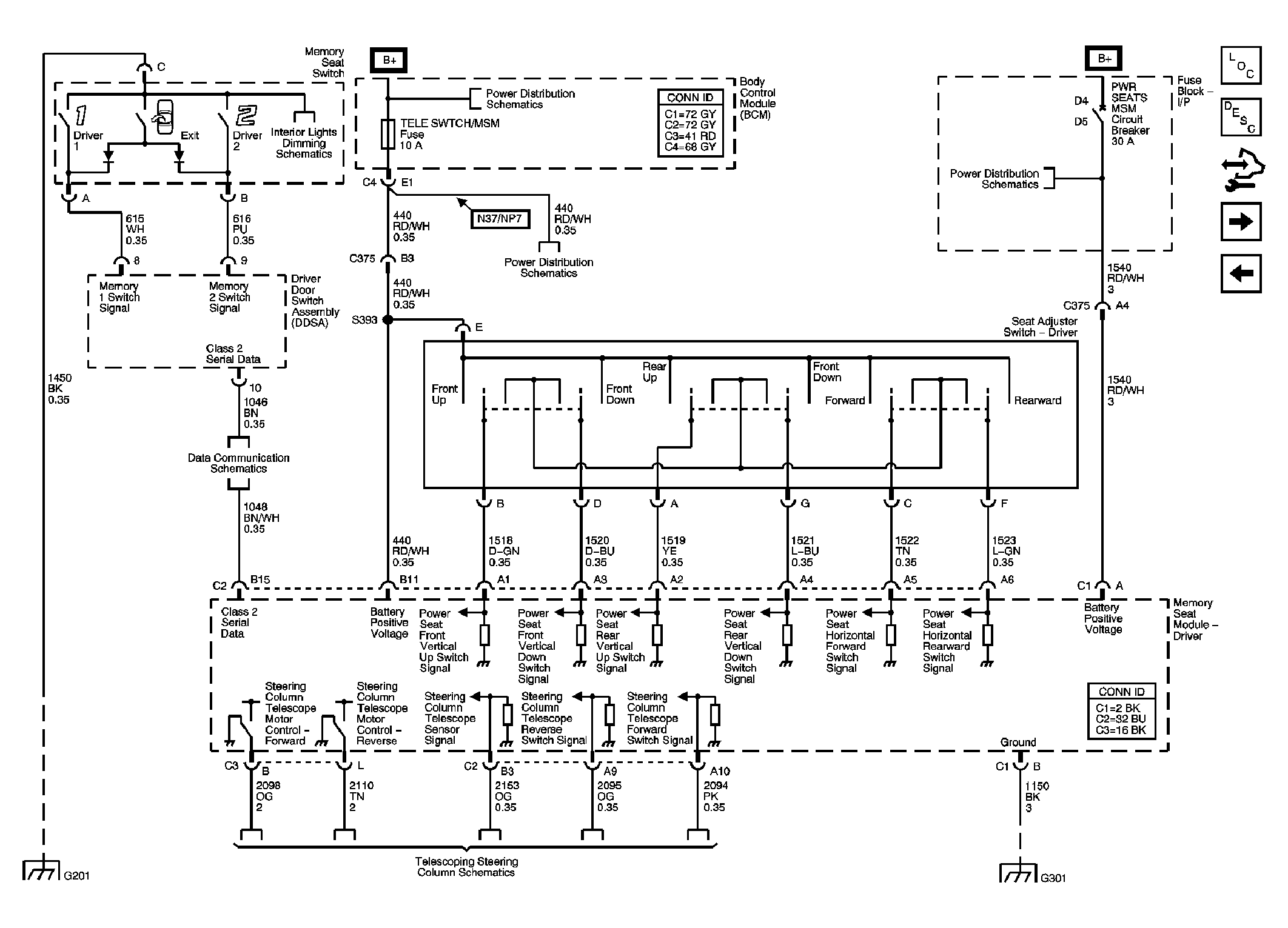

Fig 2: Memory Seat Schematic (1 of 2)
GM1892854Courtesy of GENERAL MOTORS CORP.

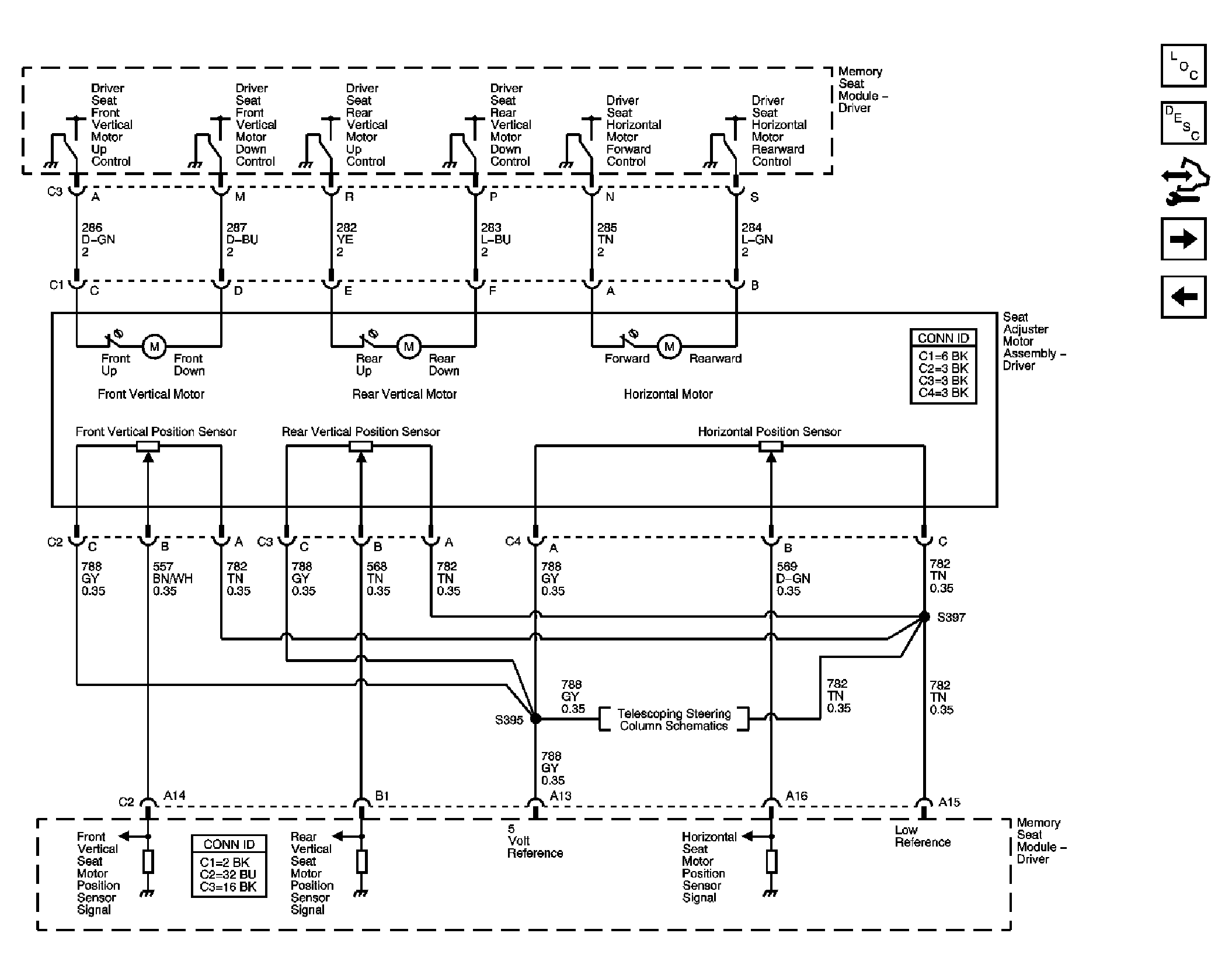

Fig 3: Memory Seat Schematic (2 of 2)
GM1892855Courtesy of GENERAL MOTORS CORP.

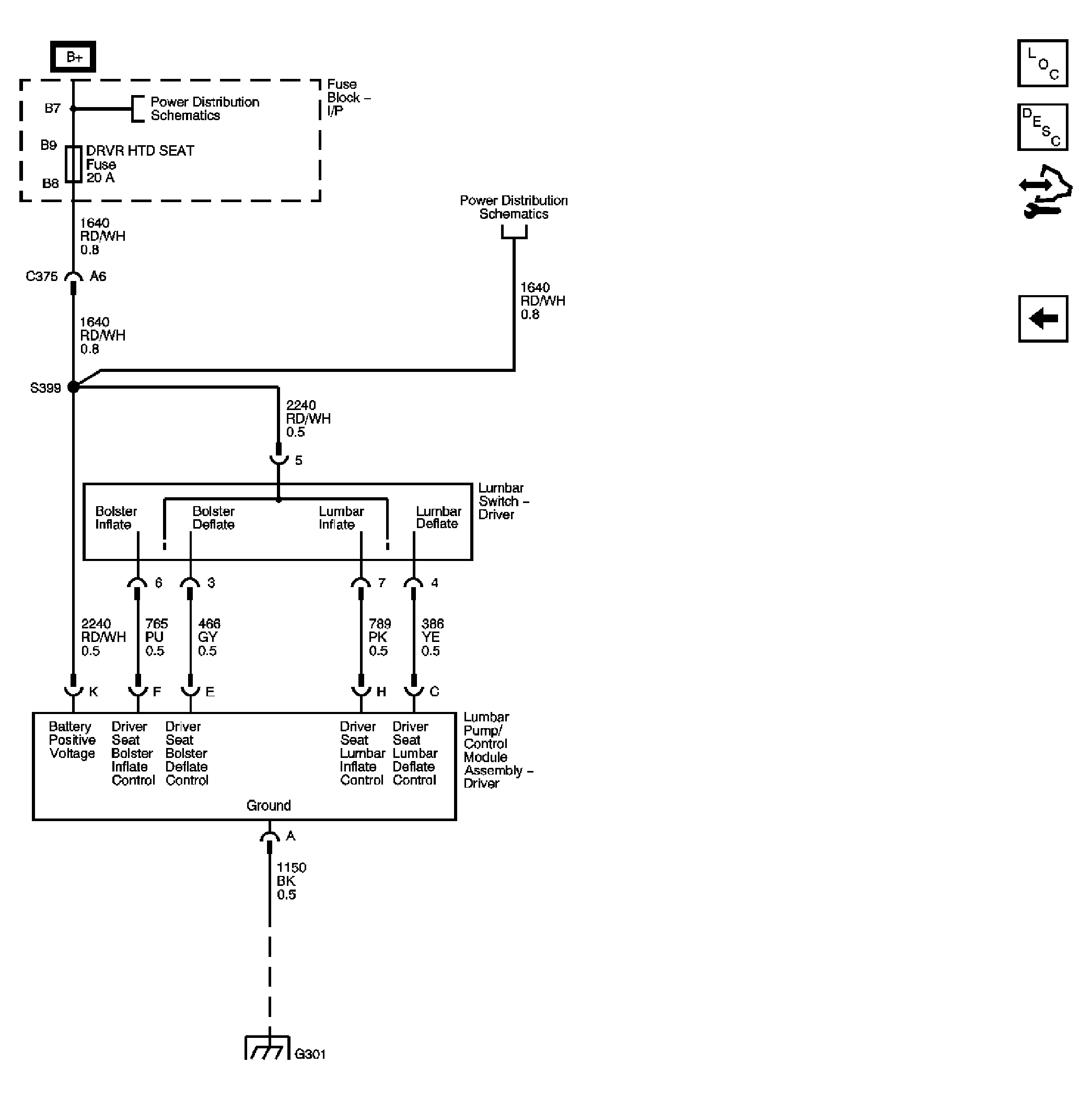

Fig 4: Lumbar Support Schematic
GM1892856Courtesy of GENERAL MOTORS CORP.
