Chevrolet
>>
2008
>>
Corvette Base, 2D Convertible, Standard
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Infotainment
>>
Cellular System, Entertainment System, And Navigation System
>>
Schematic and Routing Diagrams
>>
OnStar Schematics
OnStar Schematics

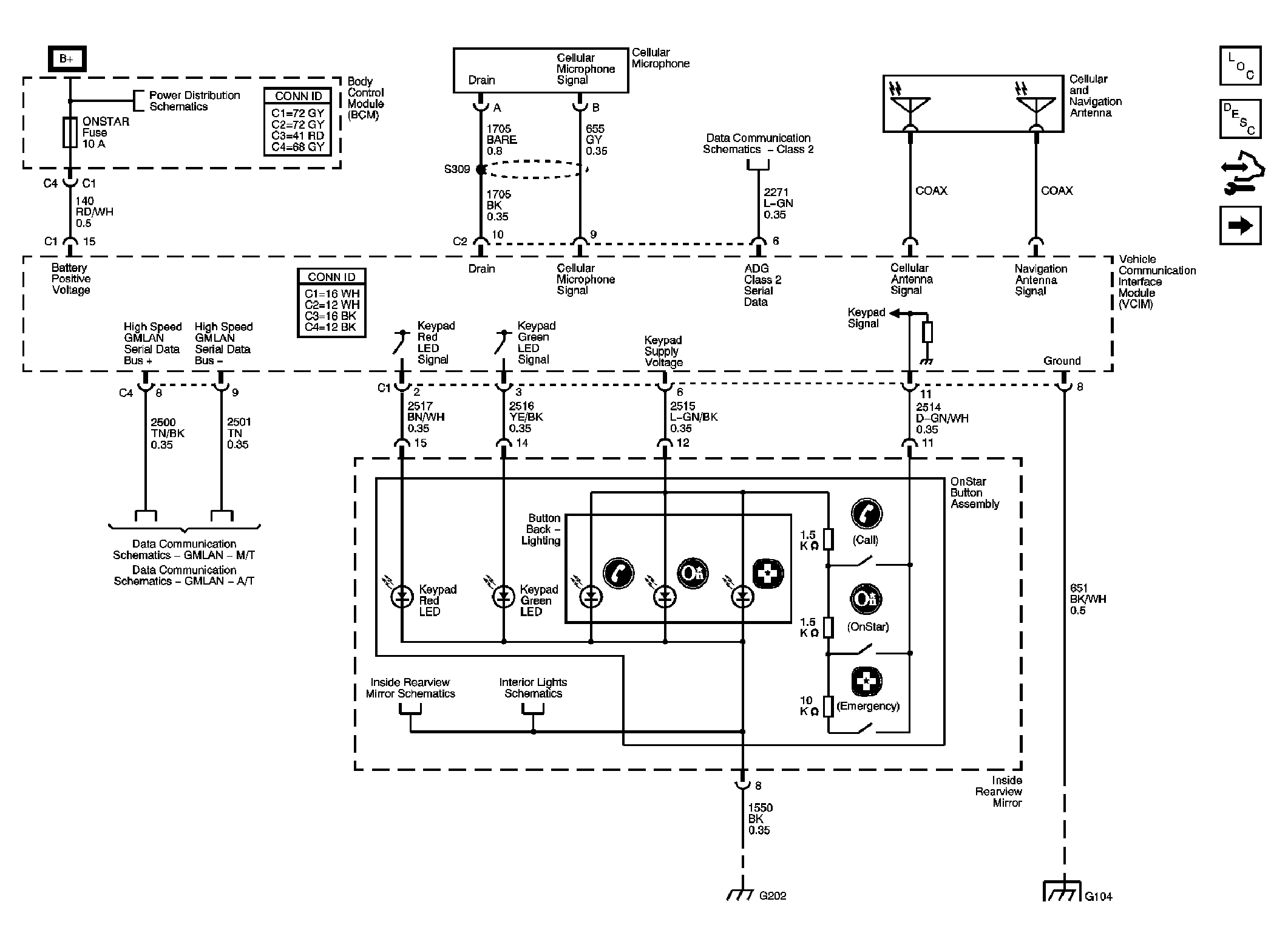

Fig 1: Power, Ground, Serial Data, Antenna, and User Inputs Schematic
Courtesy of GENERAL MOTORS CORP.
Fig 2: Audio Output Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
