Struts or Shock Absorbers Testing - On Vehicle



Struts or Shock Absorbers Testing - On Vehicle

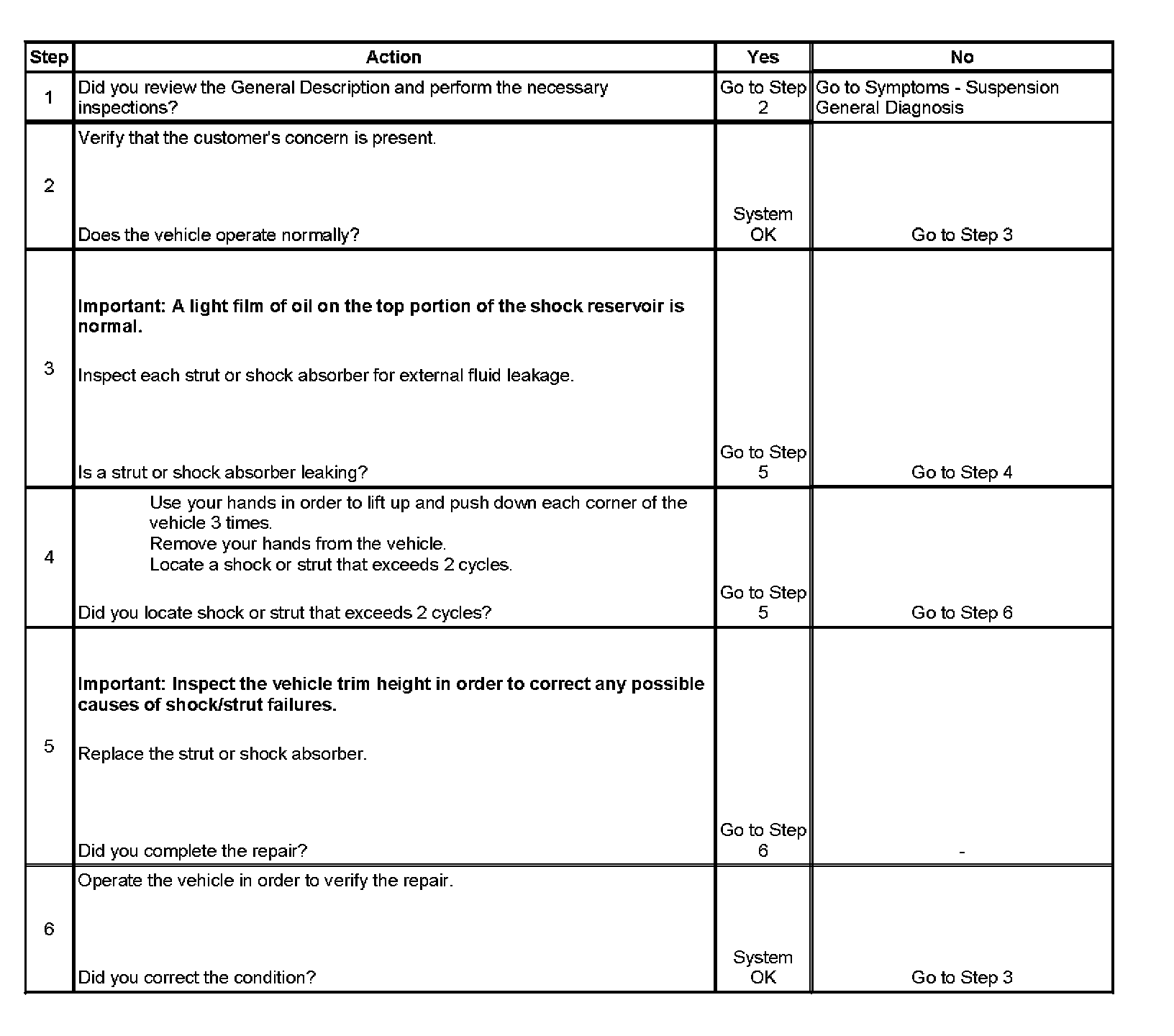

Step 1 - Step 6:
