Suspension Control ( Automatic - Electronic )

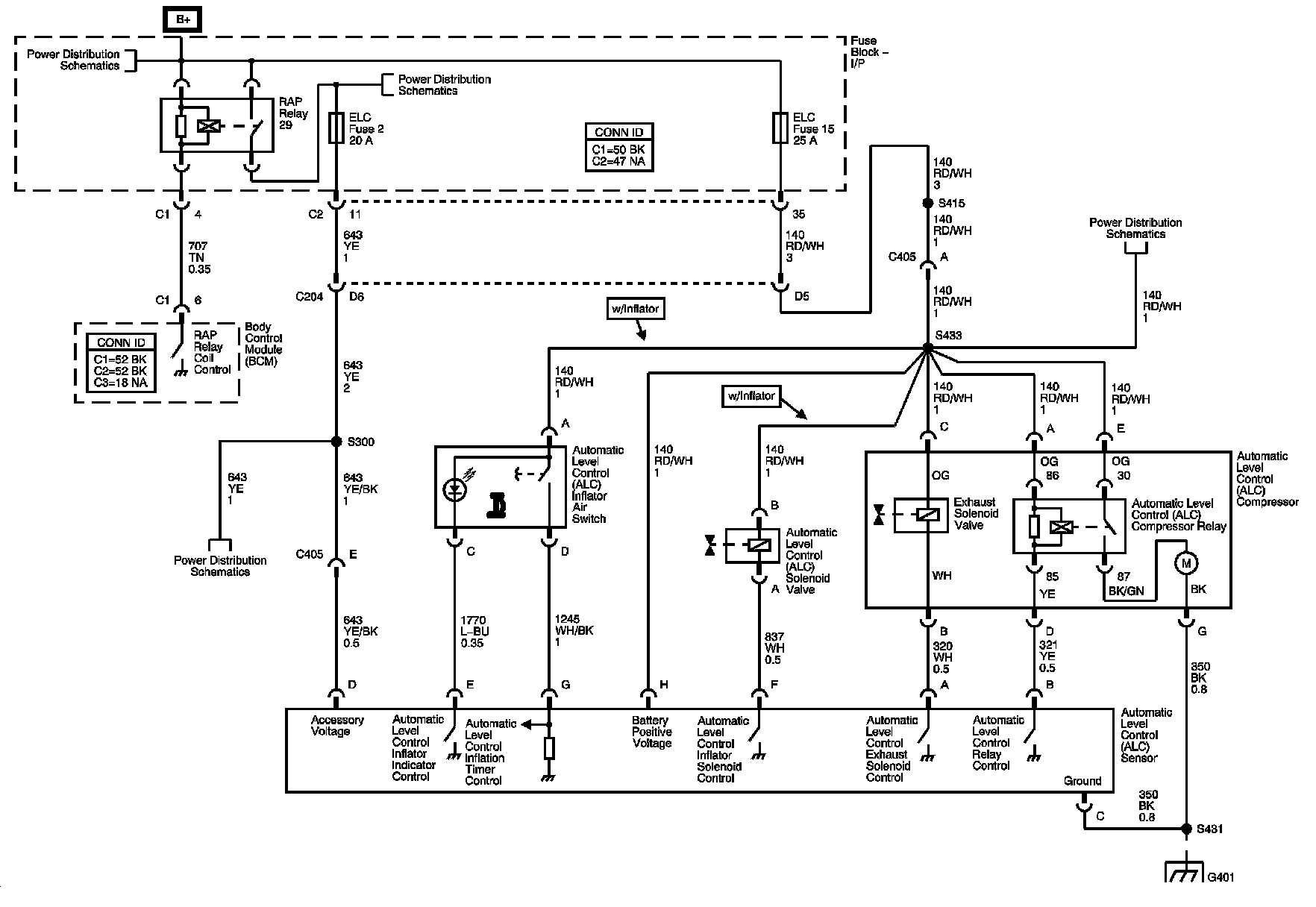

Automatic Level Control Schematics

Automatic Level Control Schematics:

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
