Power Distribution Diagram Index

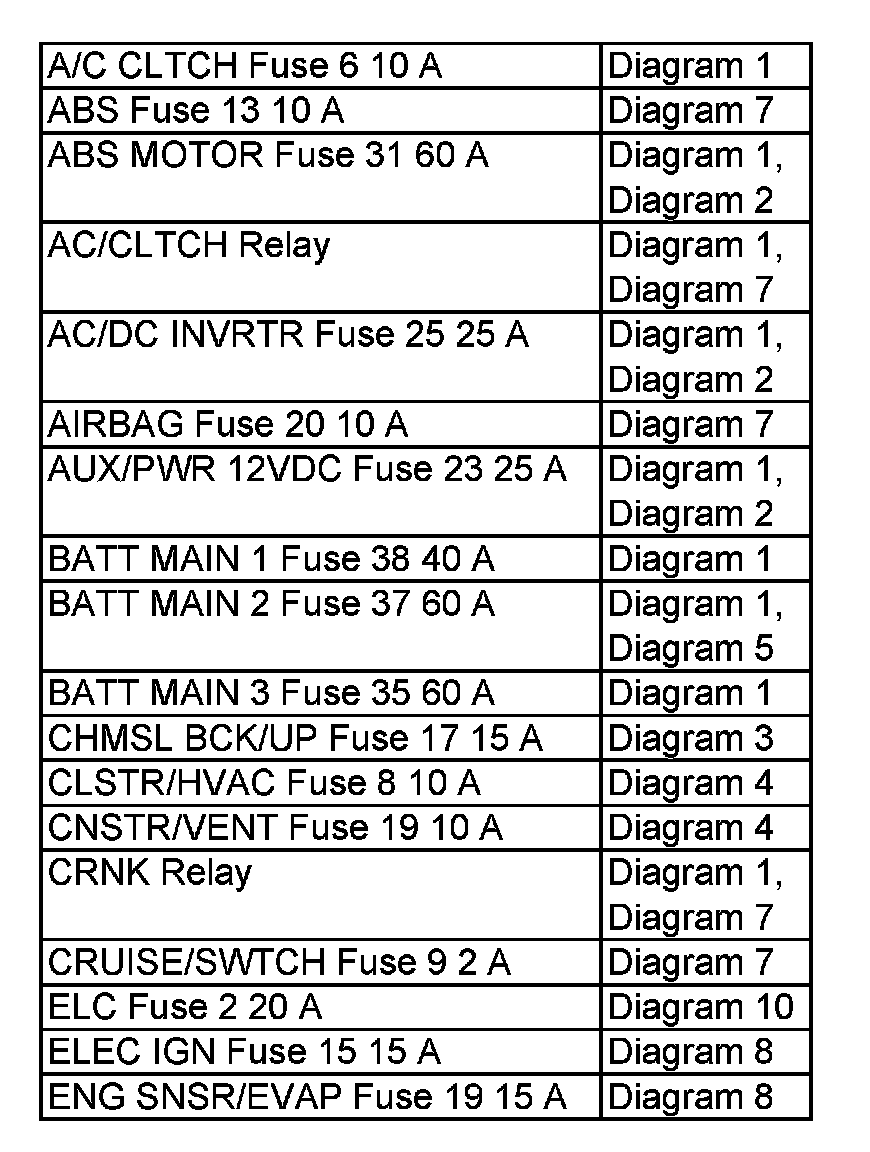

A/C CLTCH - ENG SNSR/EVAP:

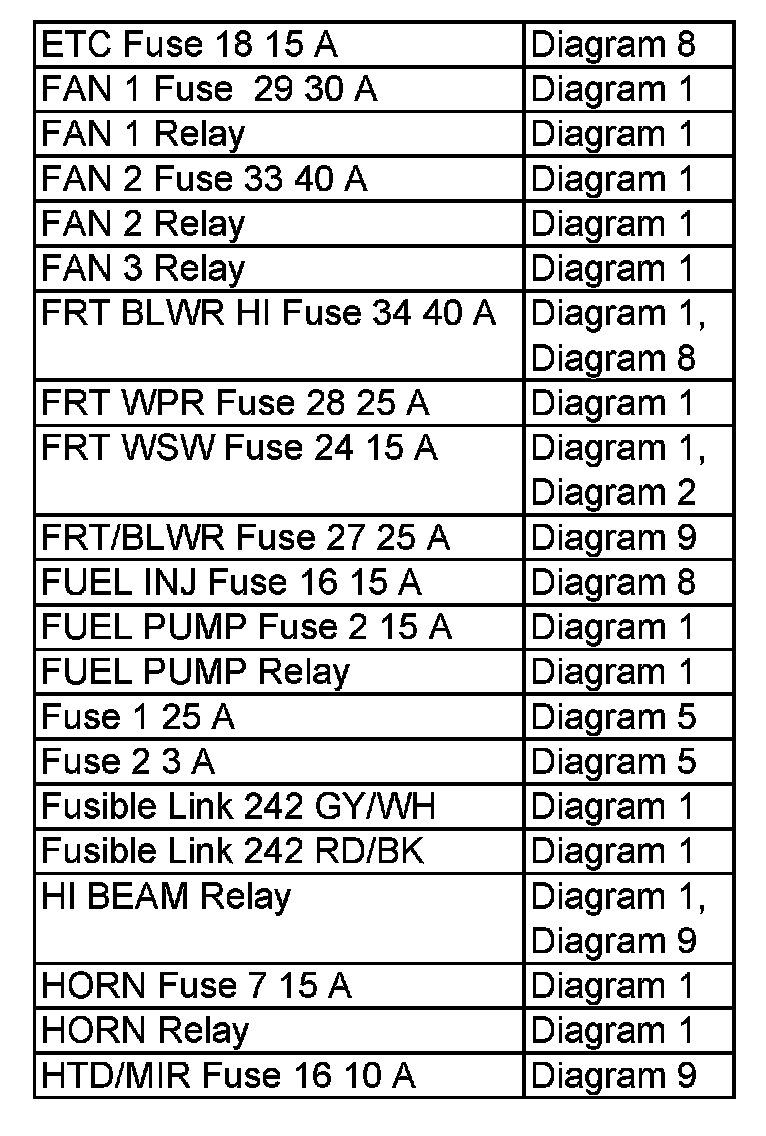

ETC - HTD/MIR:

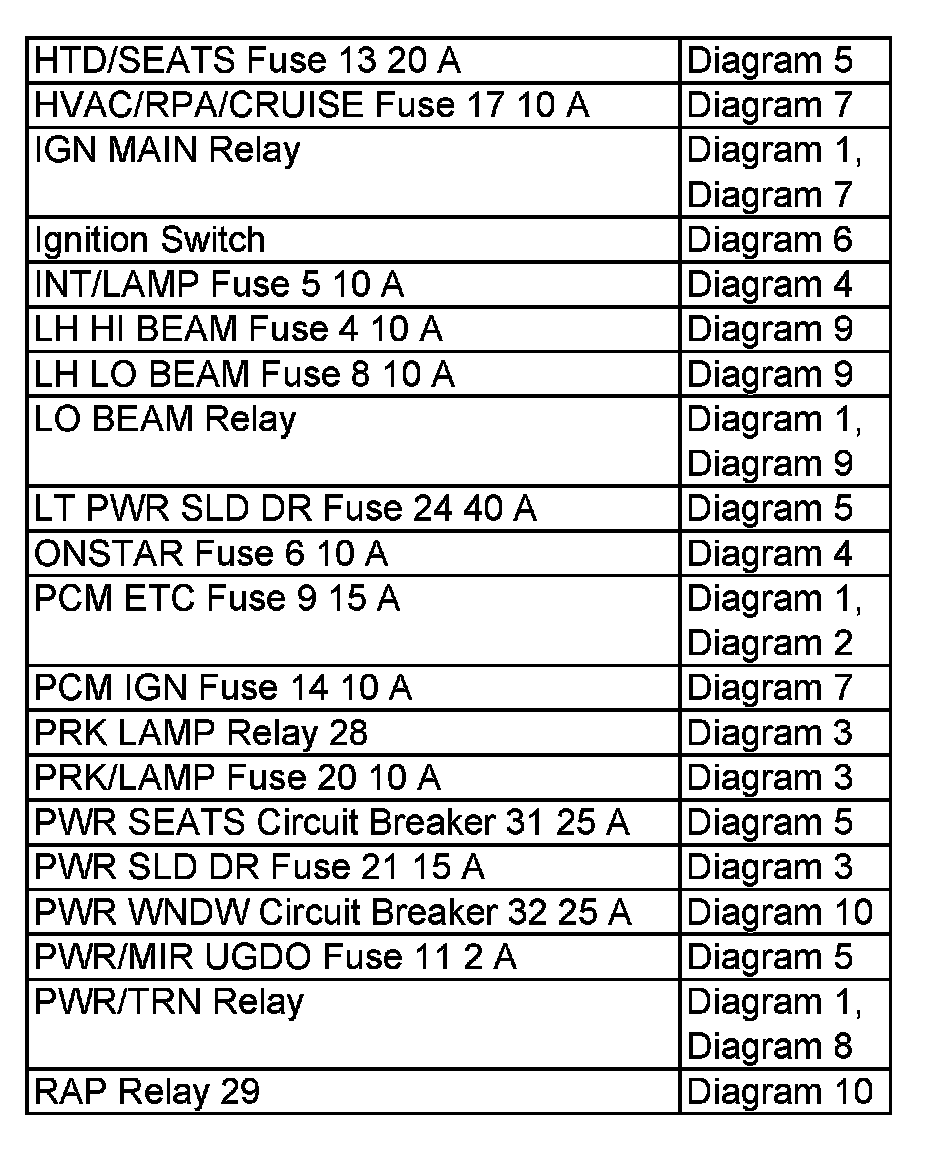

HTD/SEATS - RAP:

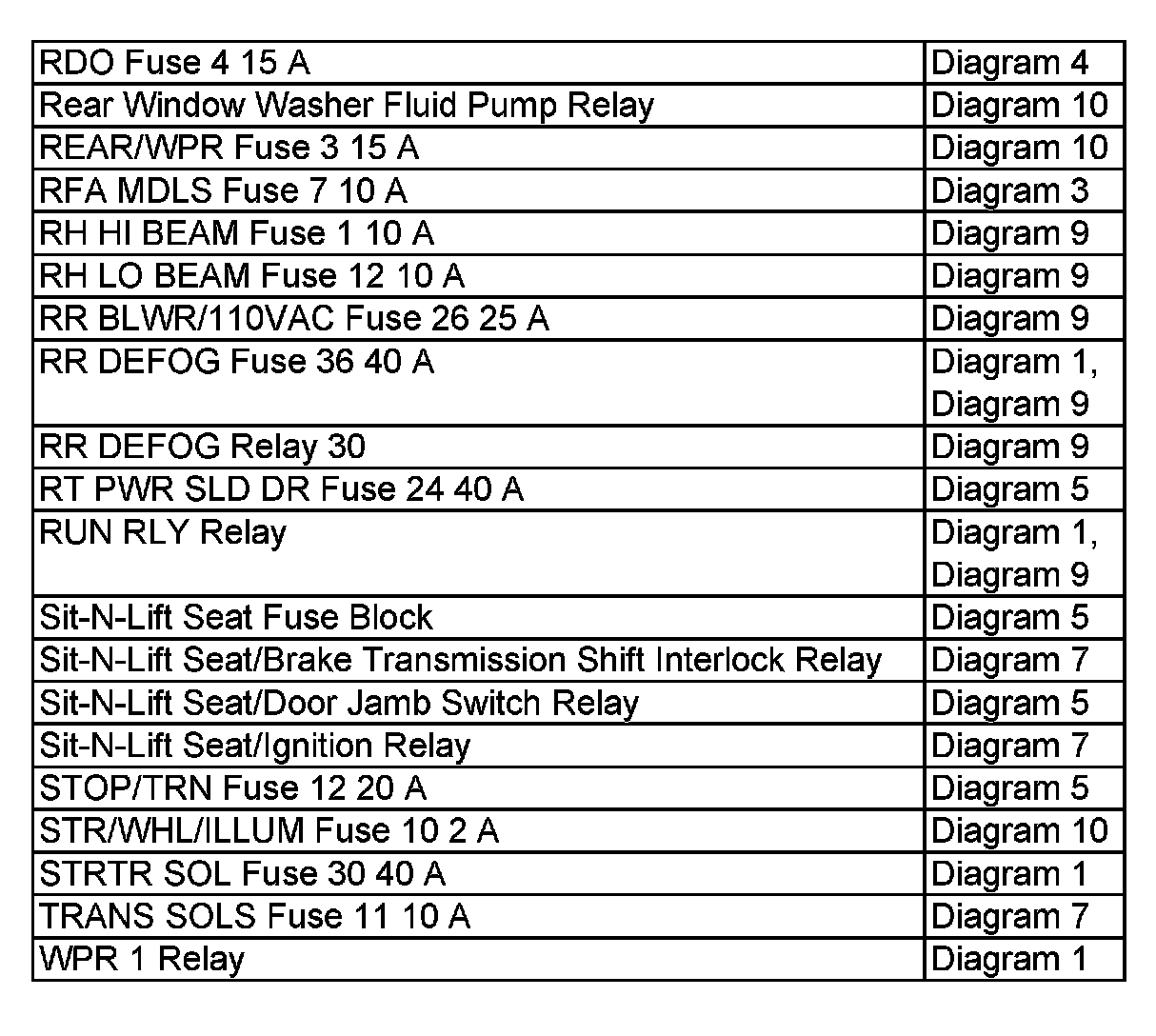

RDO - WPR 1:
