Home >> Chevrolet >> 2007 >> Uplander V6-3.9L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> Power and Ground Distribution >> System Diagram >> Ground Distribution Diagrams >> G200

G200



Ground Distribution Schematics

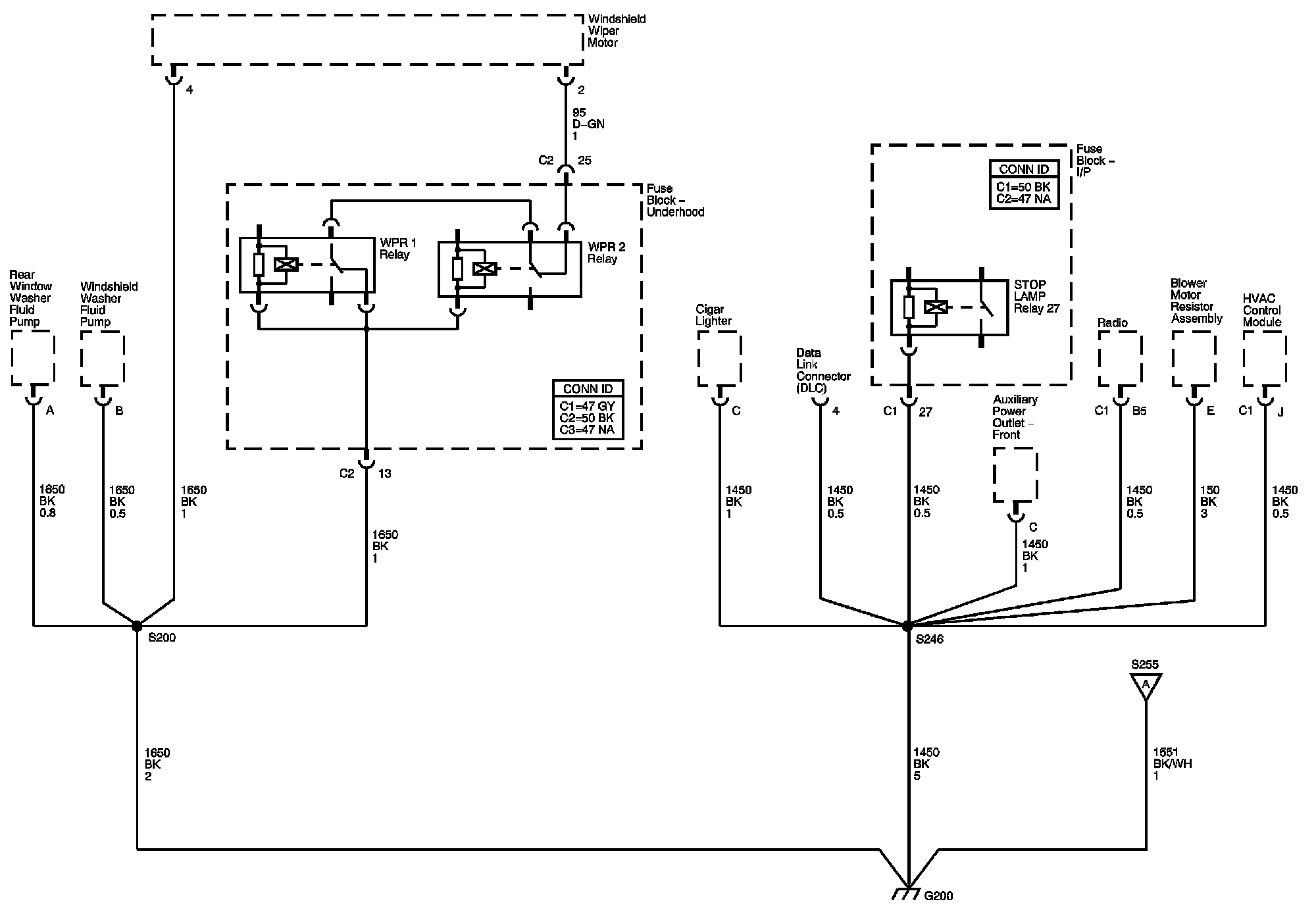

G200 1 of 2

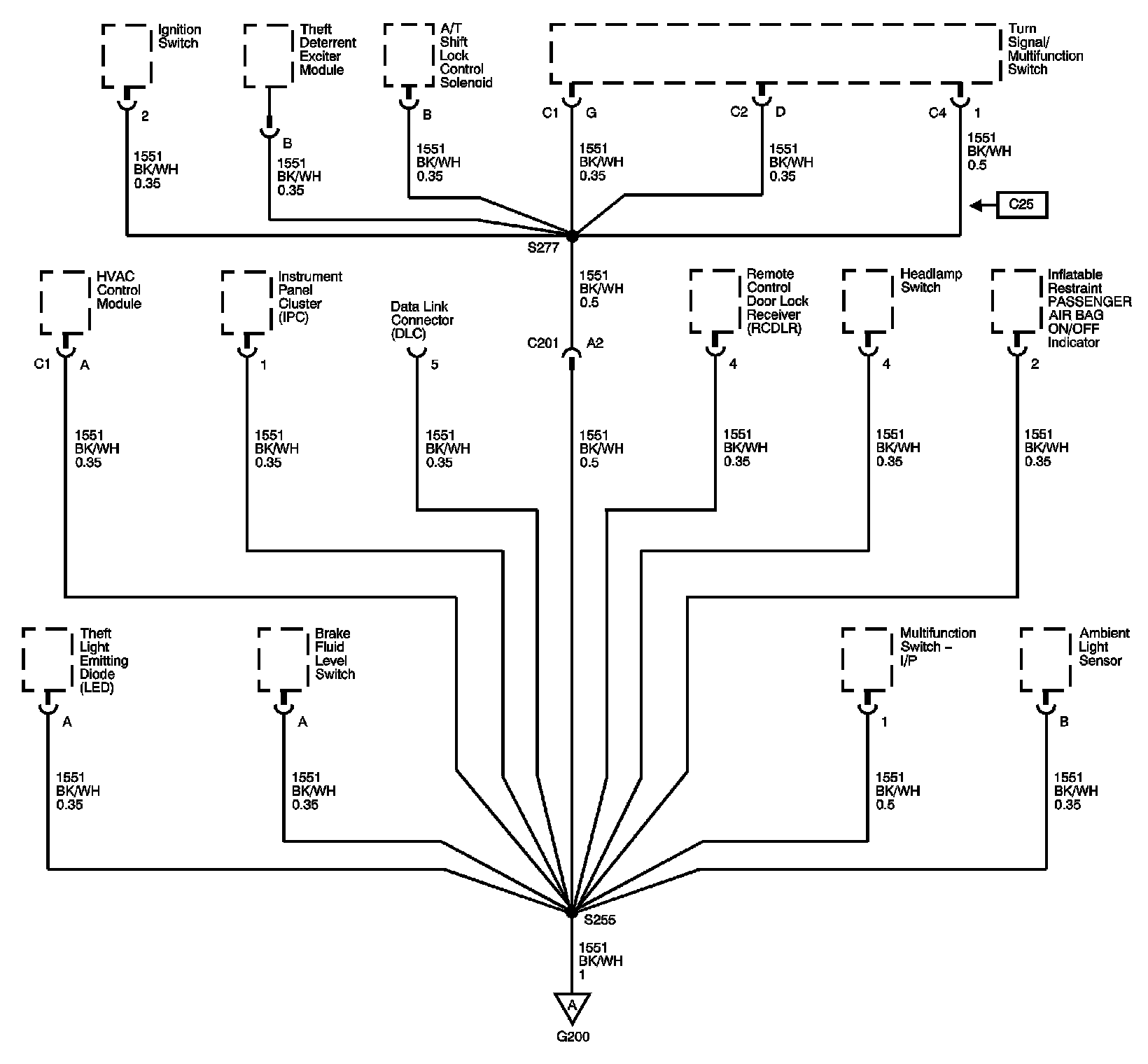

G200 2 of 2






Locations:The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
