Locks

Door Lock/Indicator Schematics

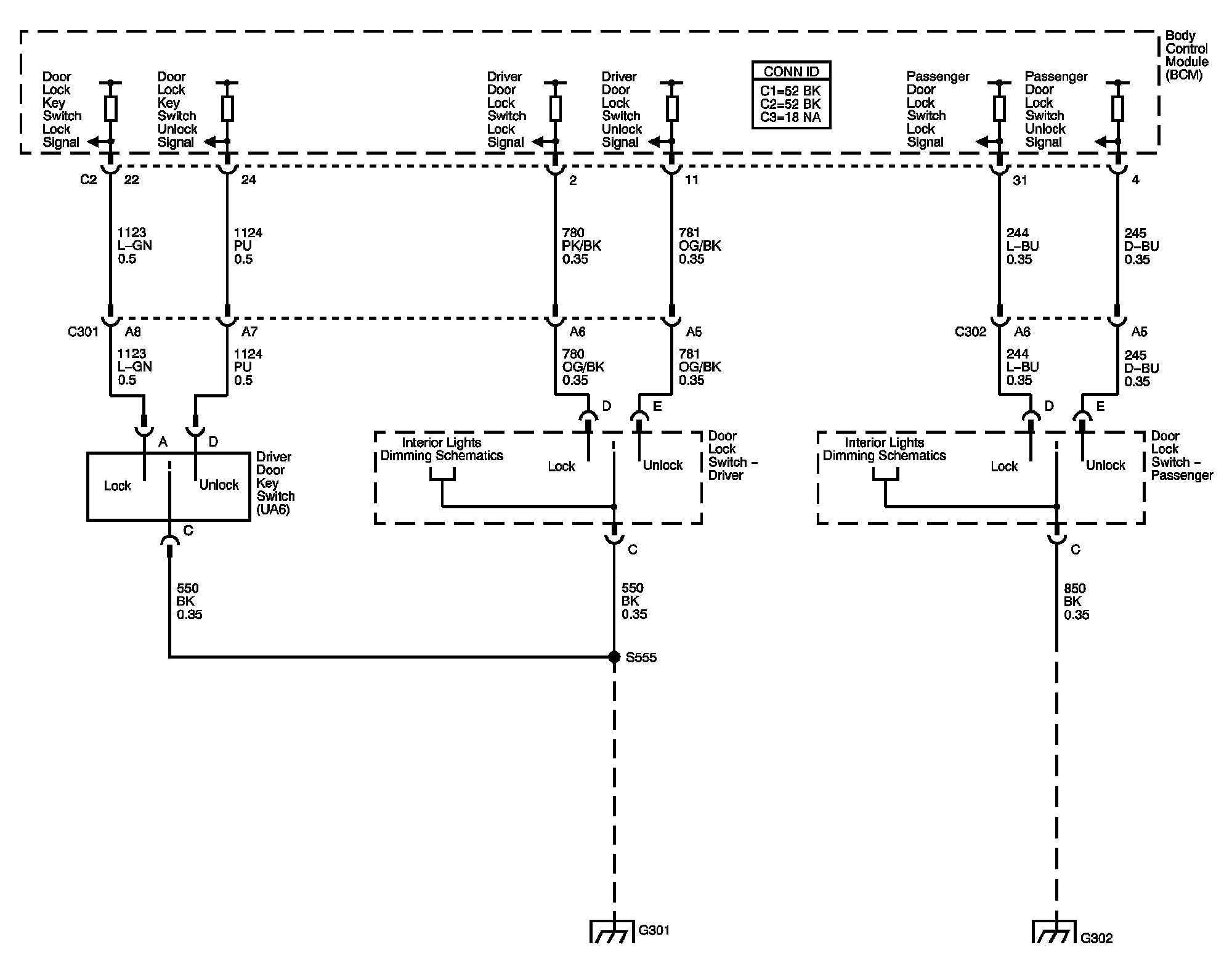

Switches

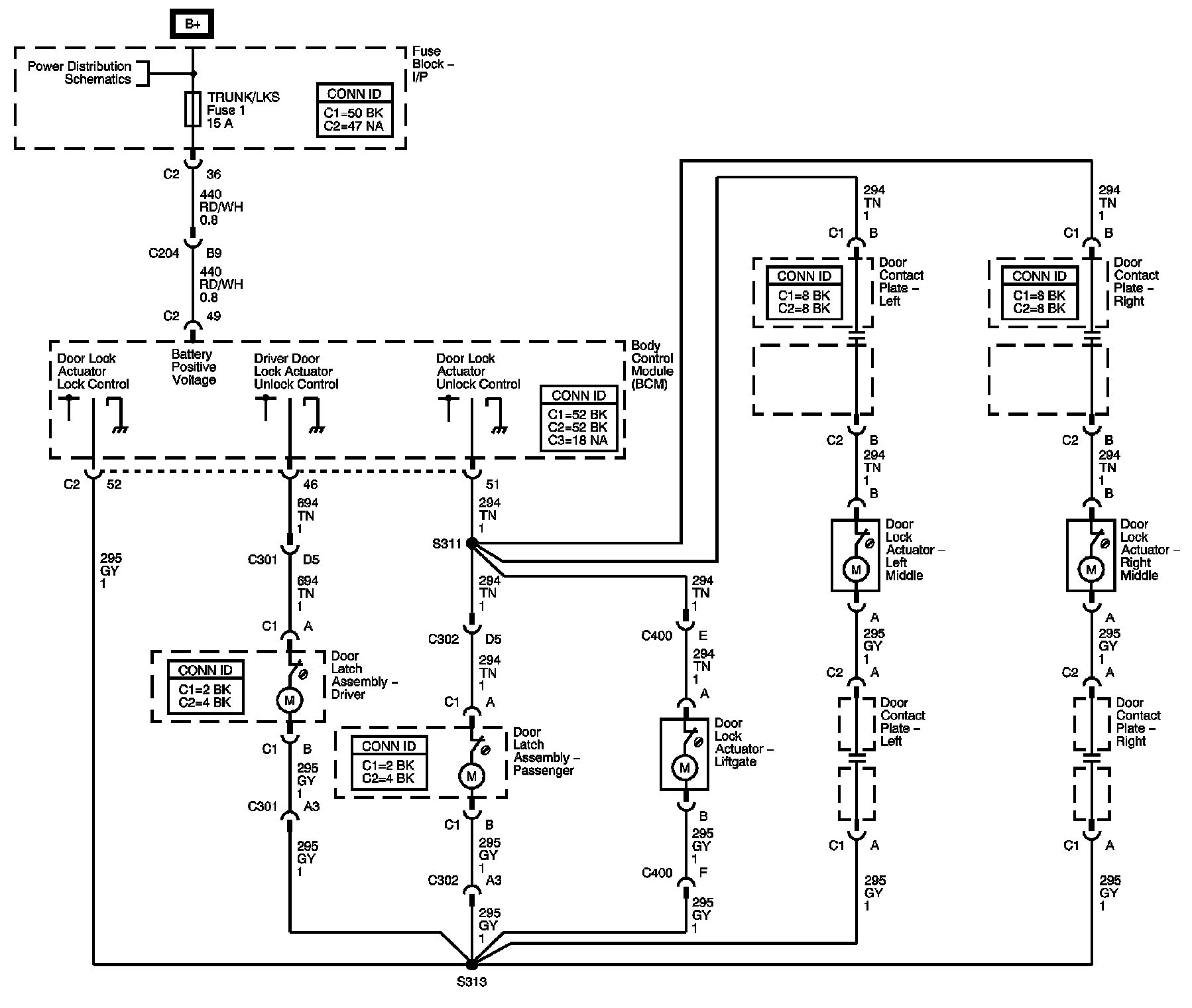

Actuators

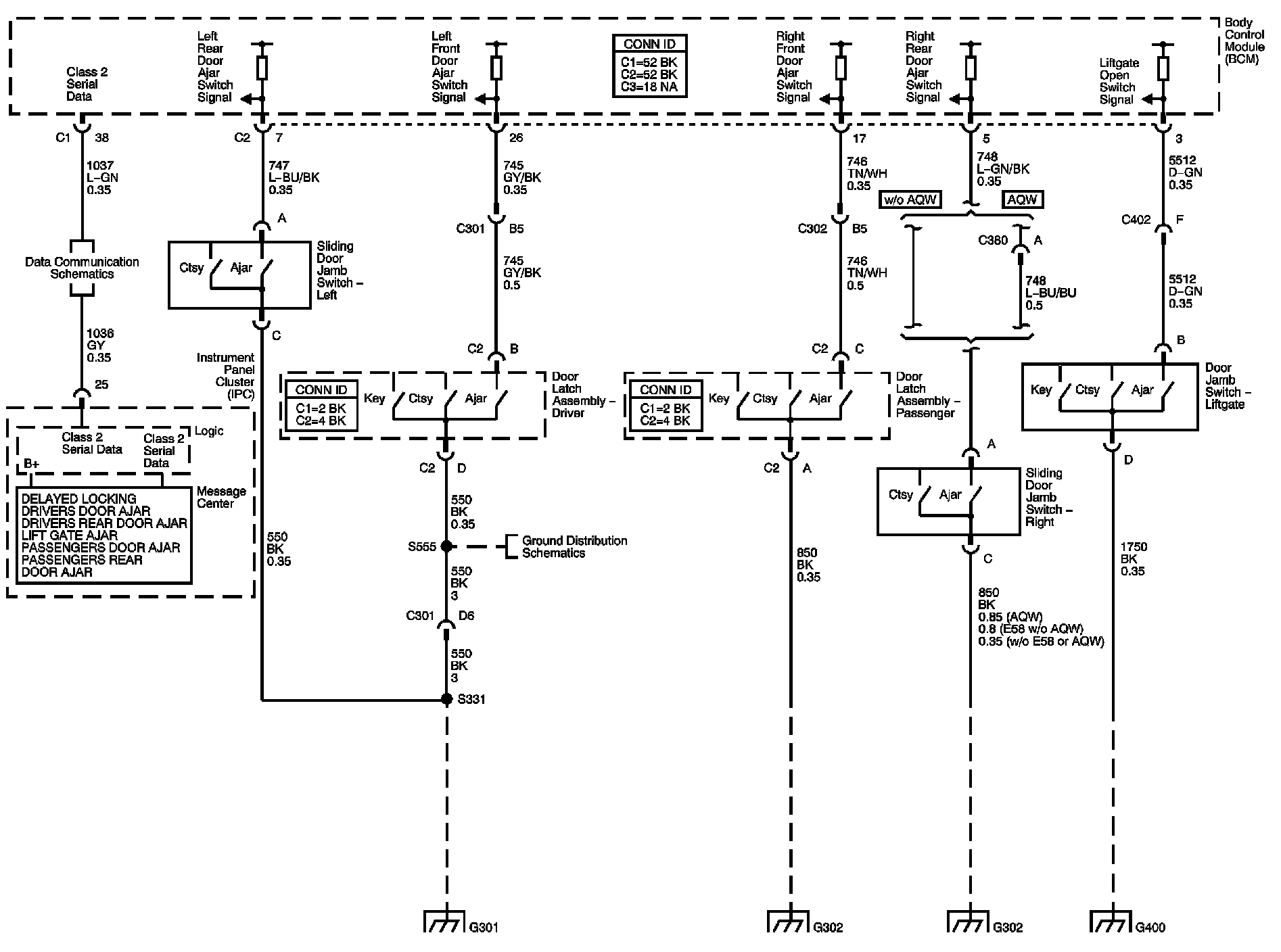

Indicators






Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
