Heating and Air Conditioning

HVAC Schematics

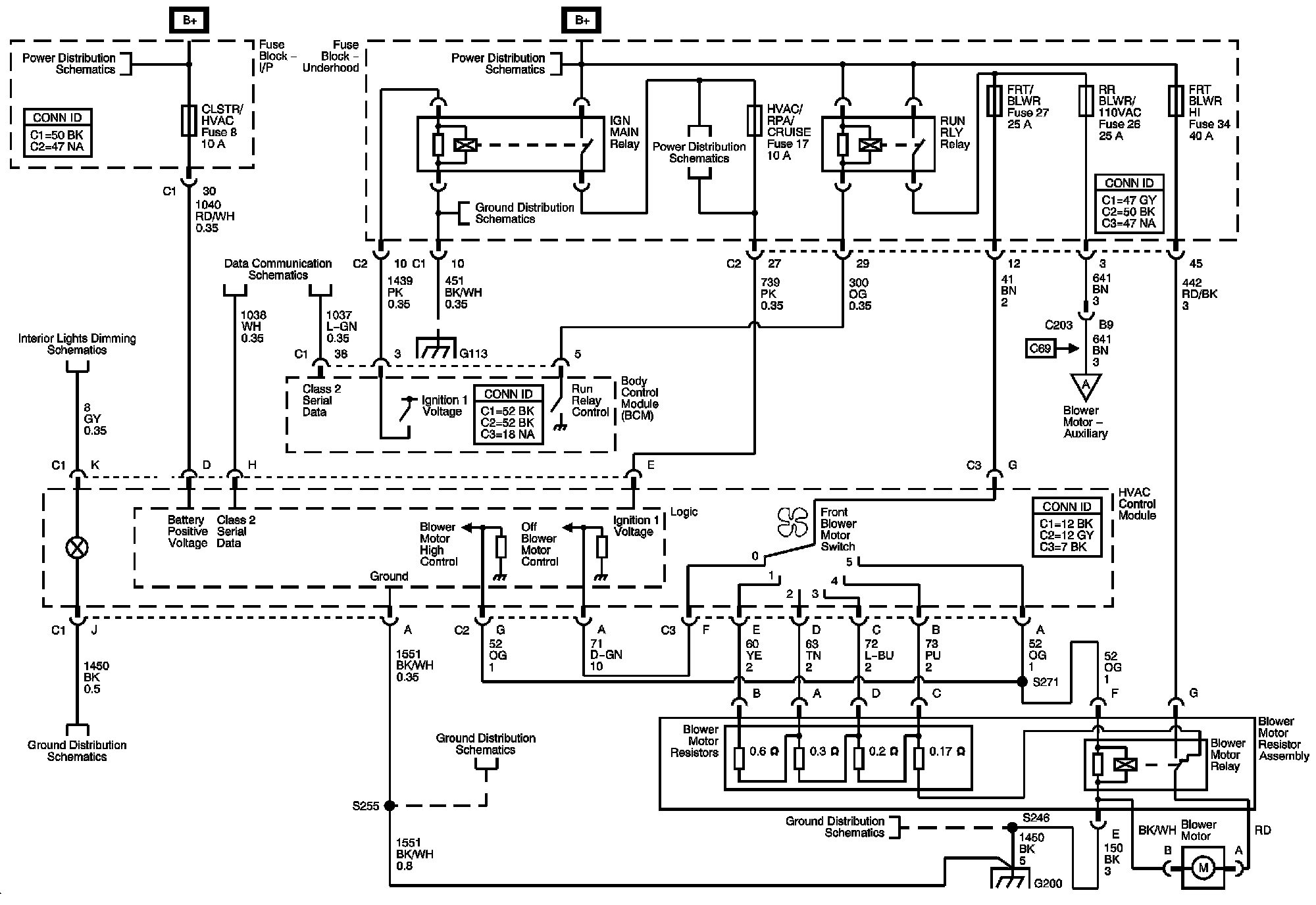

Front Blower Control, Ground, and Power

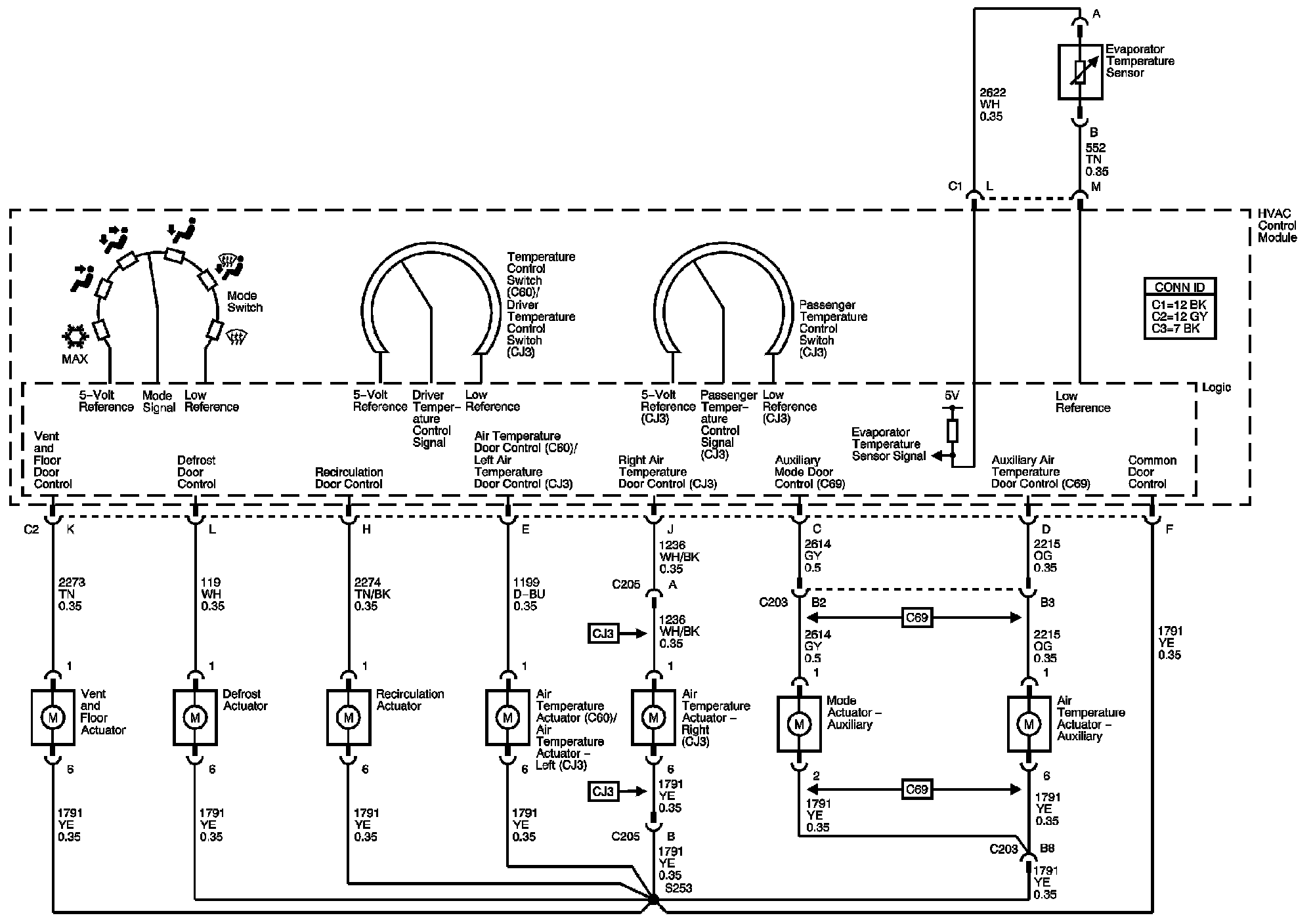

Air Delivery and Temperature Control

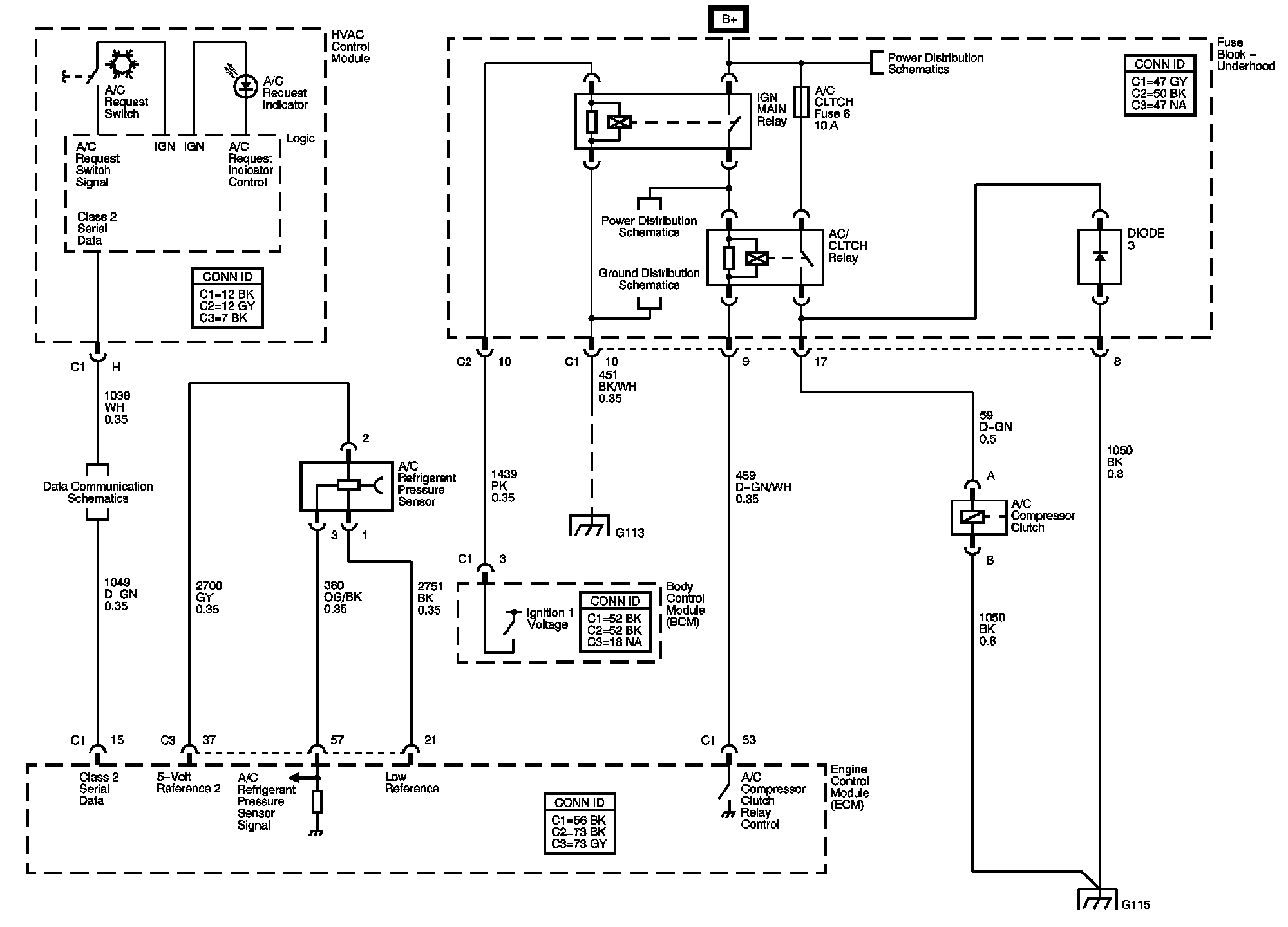

A/C Compressor Controls

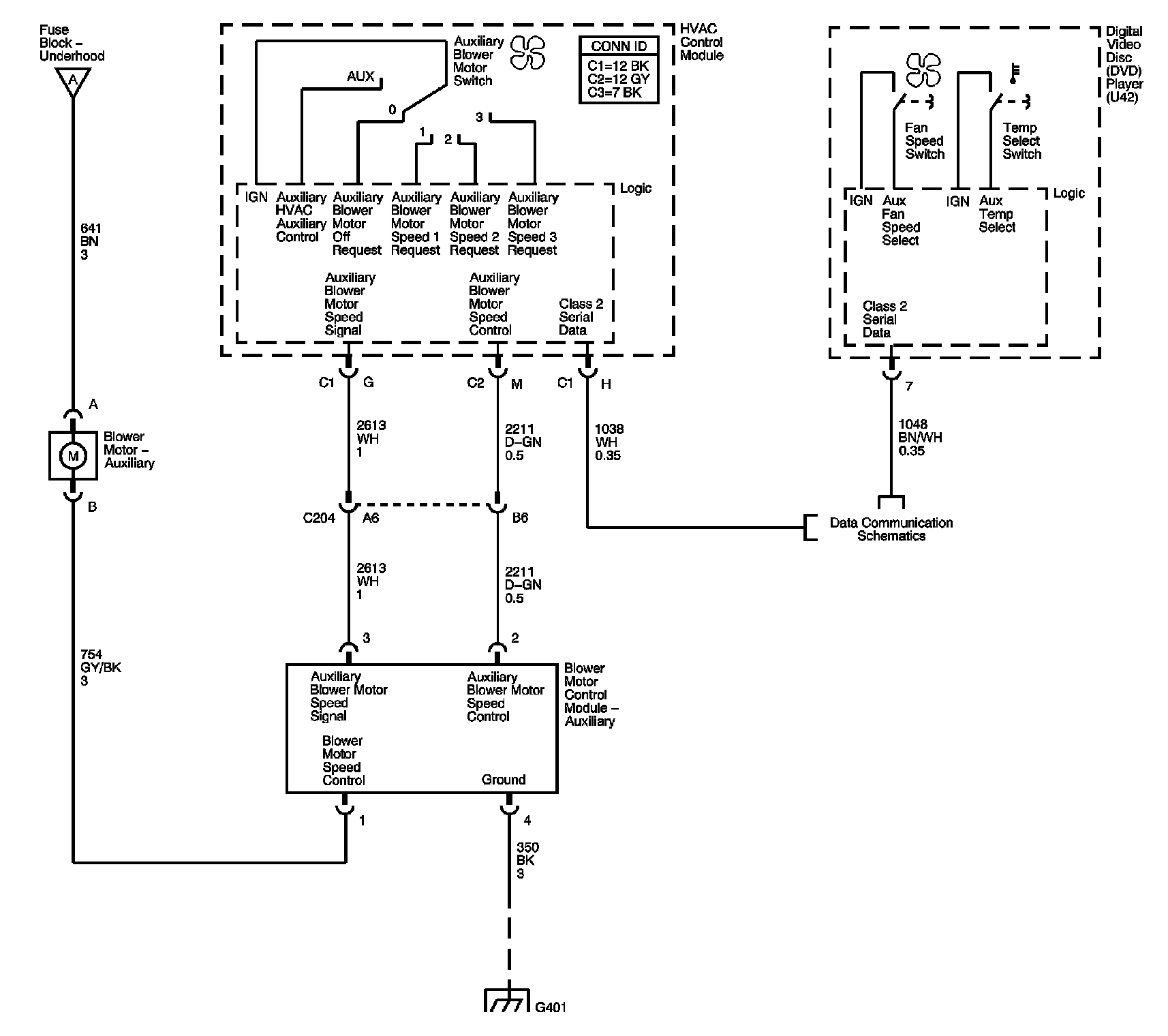

Auxiliary Blower Controls - C69






Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
