Video System Schematics (UMS)



Video System Schematics (UMS)

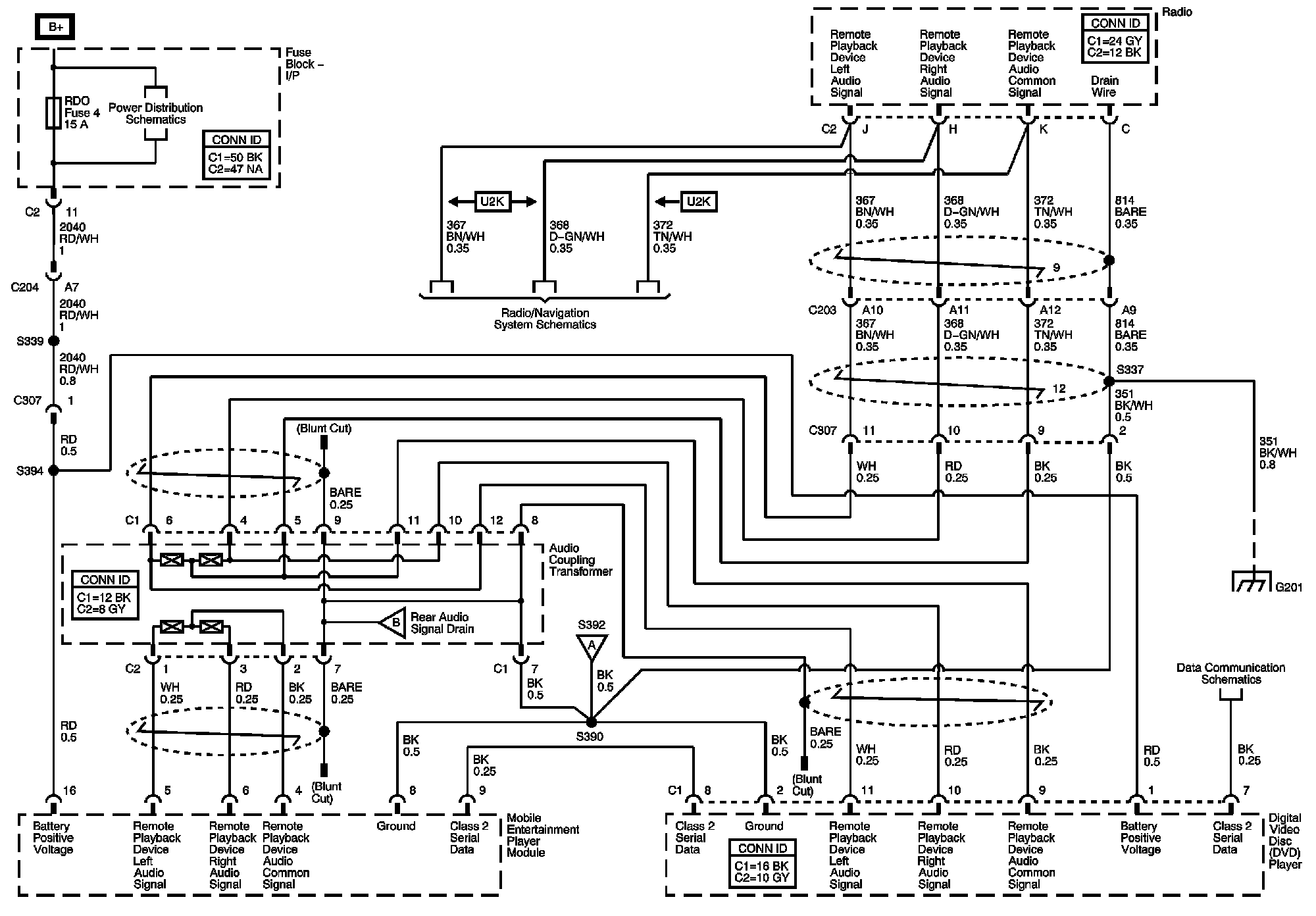

Ground, Power, Serial Data, and Front Audio Signals

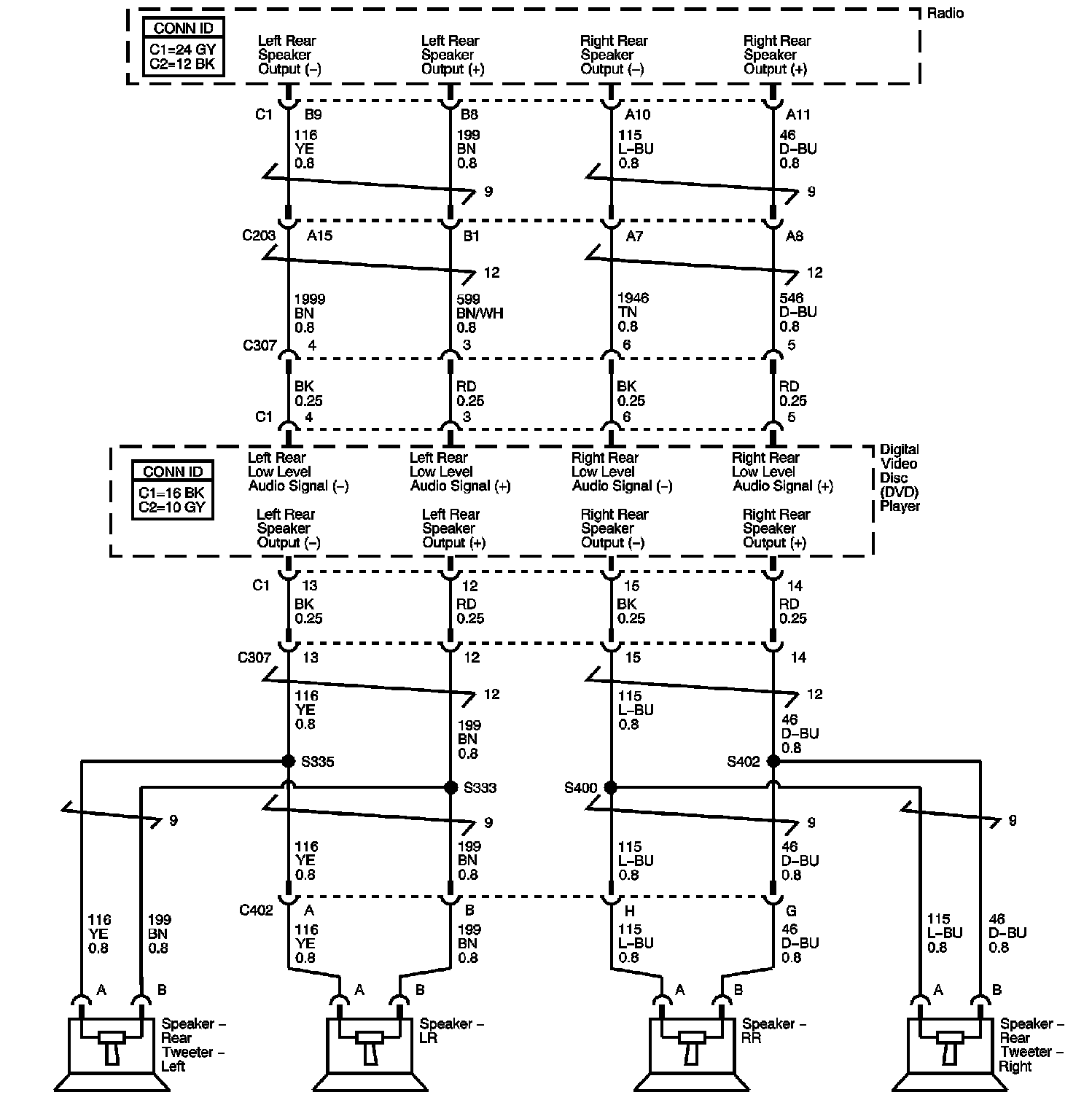

Rear Audio Output

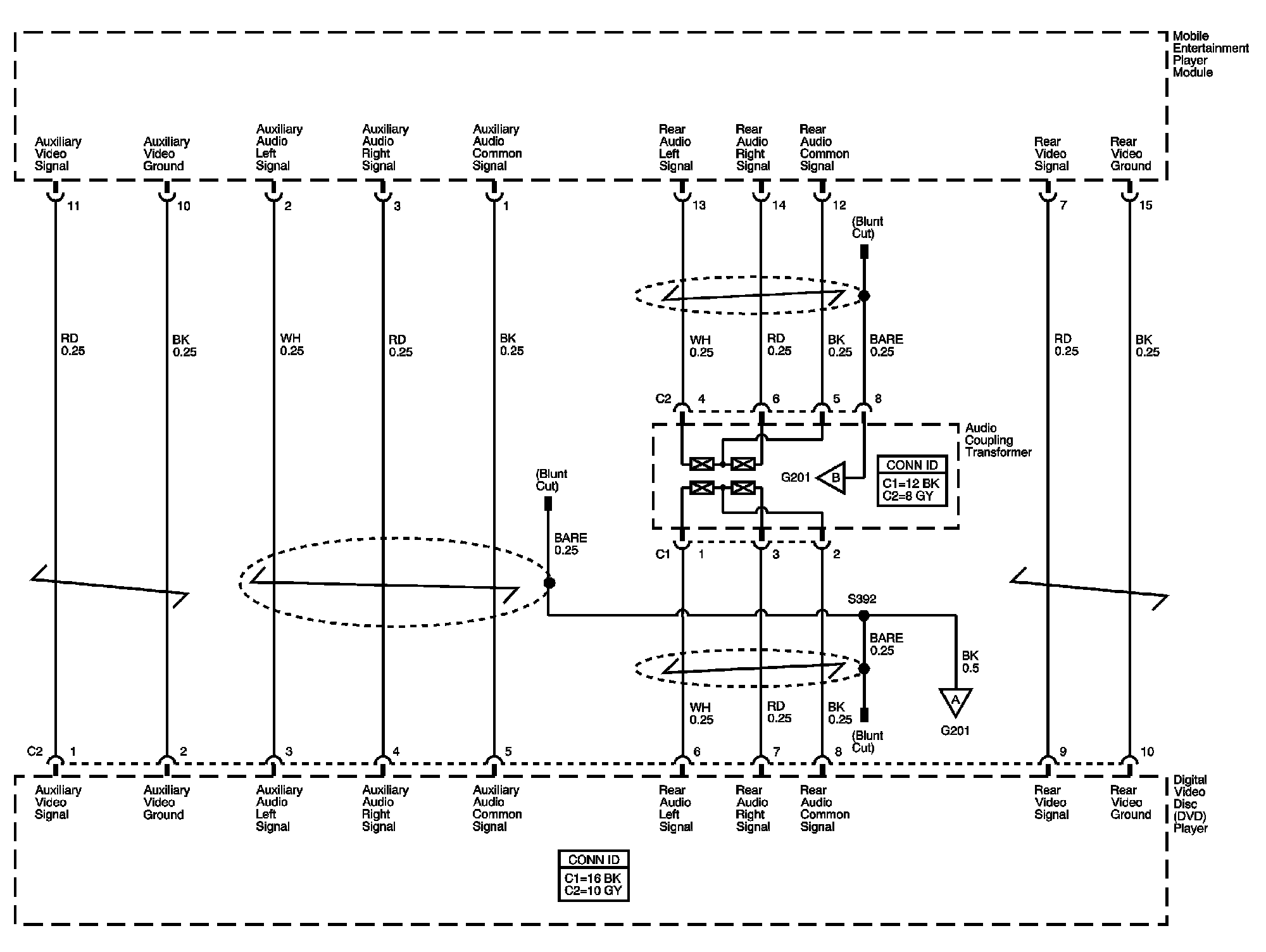

Auxiliary and Rear Audio and Video Signals






Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
