C108



Power and Grounding Component Views

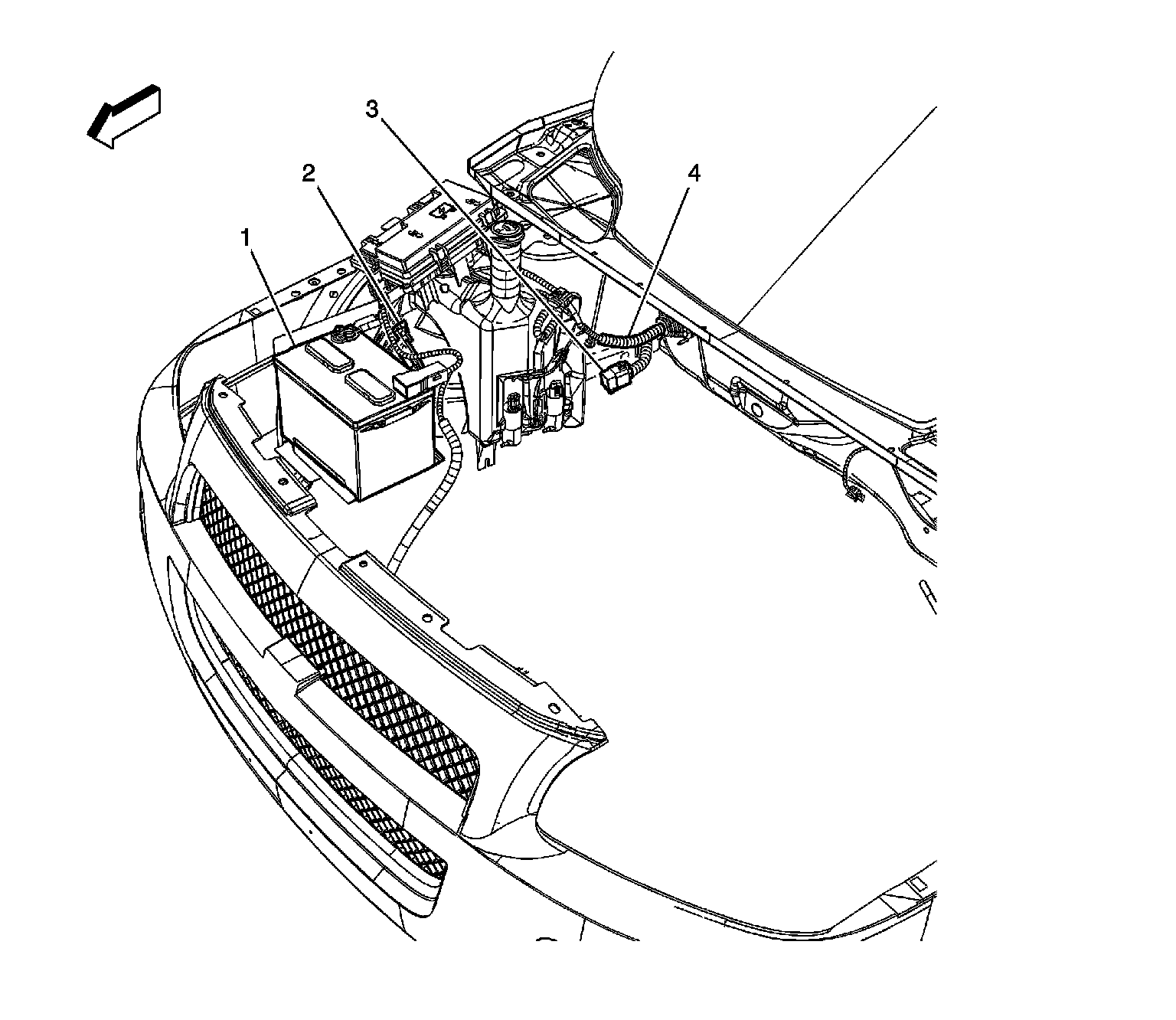

Right Side of Engine Compartment




1 - Battery
2 - C108 I/P Harness to Battery Cable Harness
3 - Rear Window Washer Fluid Pump Relay
4 - I/P Harness
