C279



Inline Harness Connector End Views

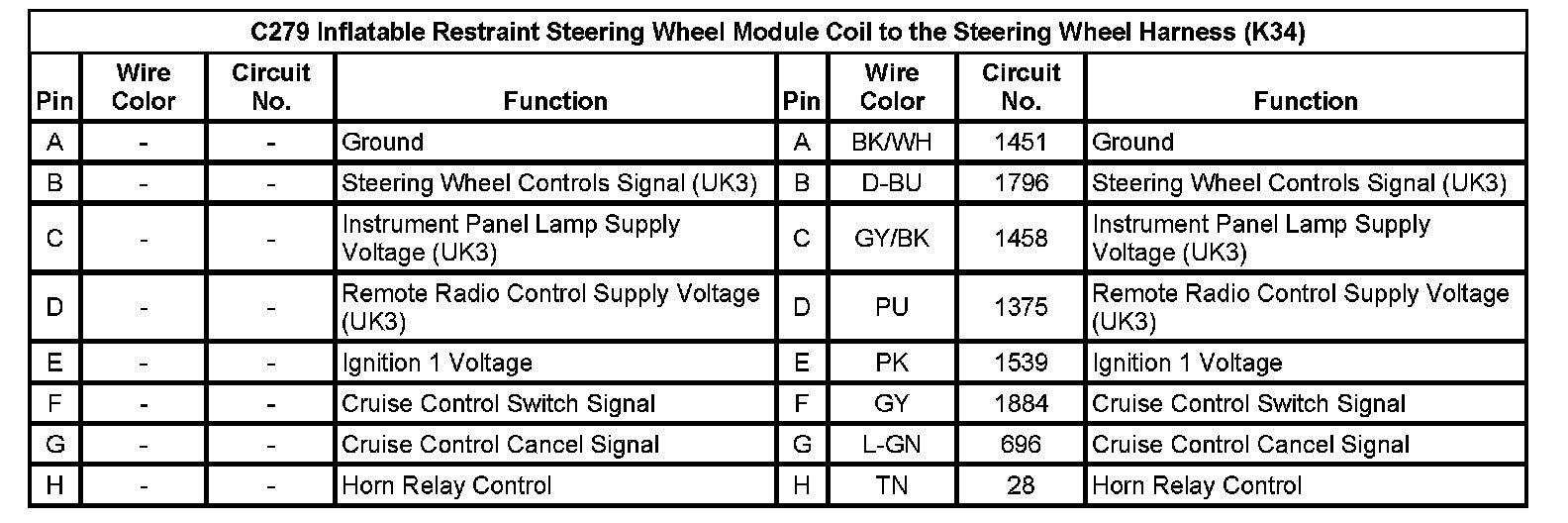

C279 Inflatable Restraint Steering Wheel Module Coil to the Steering Wheel Harness (K34)













C279 Inflatable Restraint Steering Wheel Module Coil to the Steering Wheel Harness (w/o K34)
