C314



Inline Harness Connector End Views

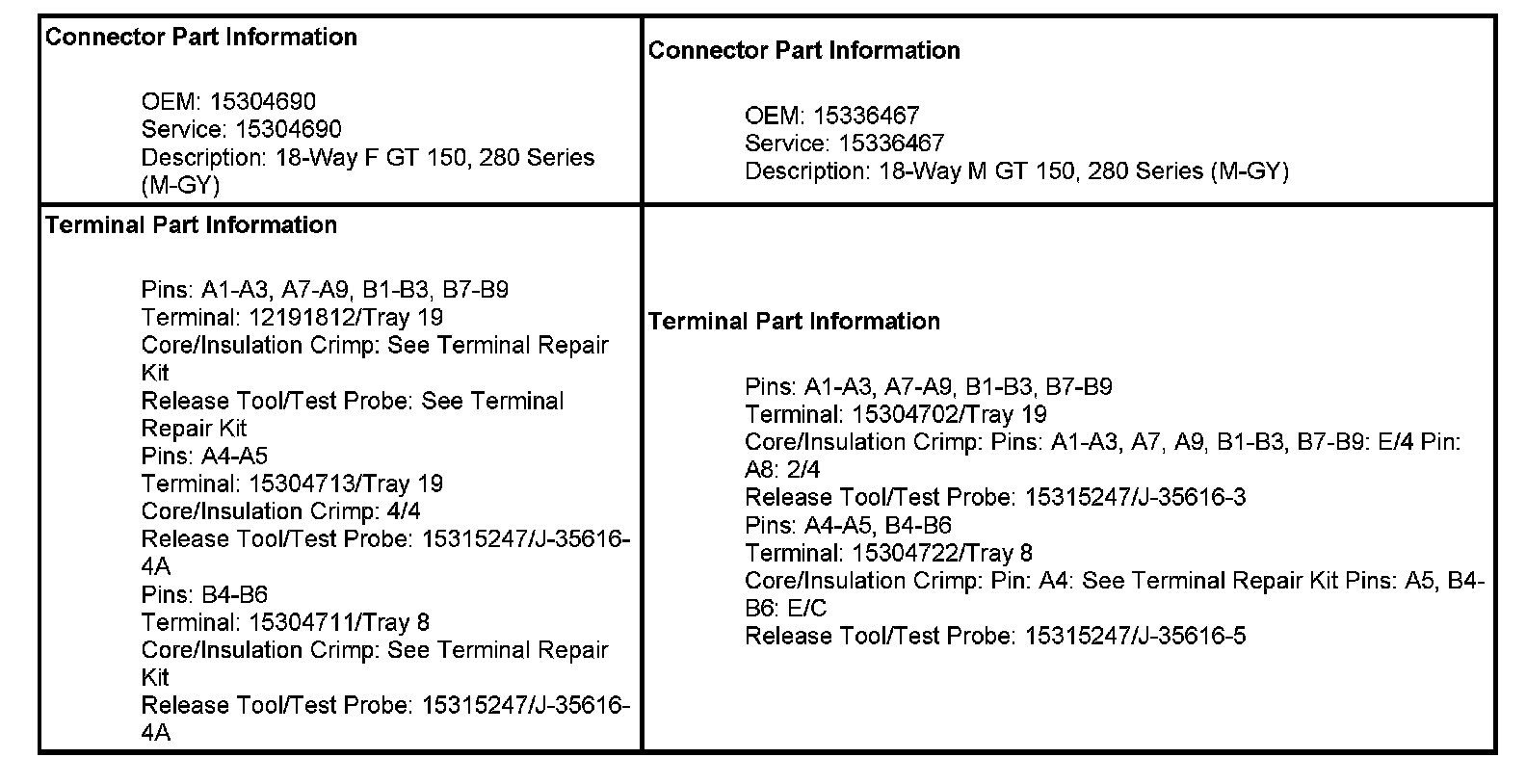

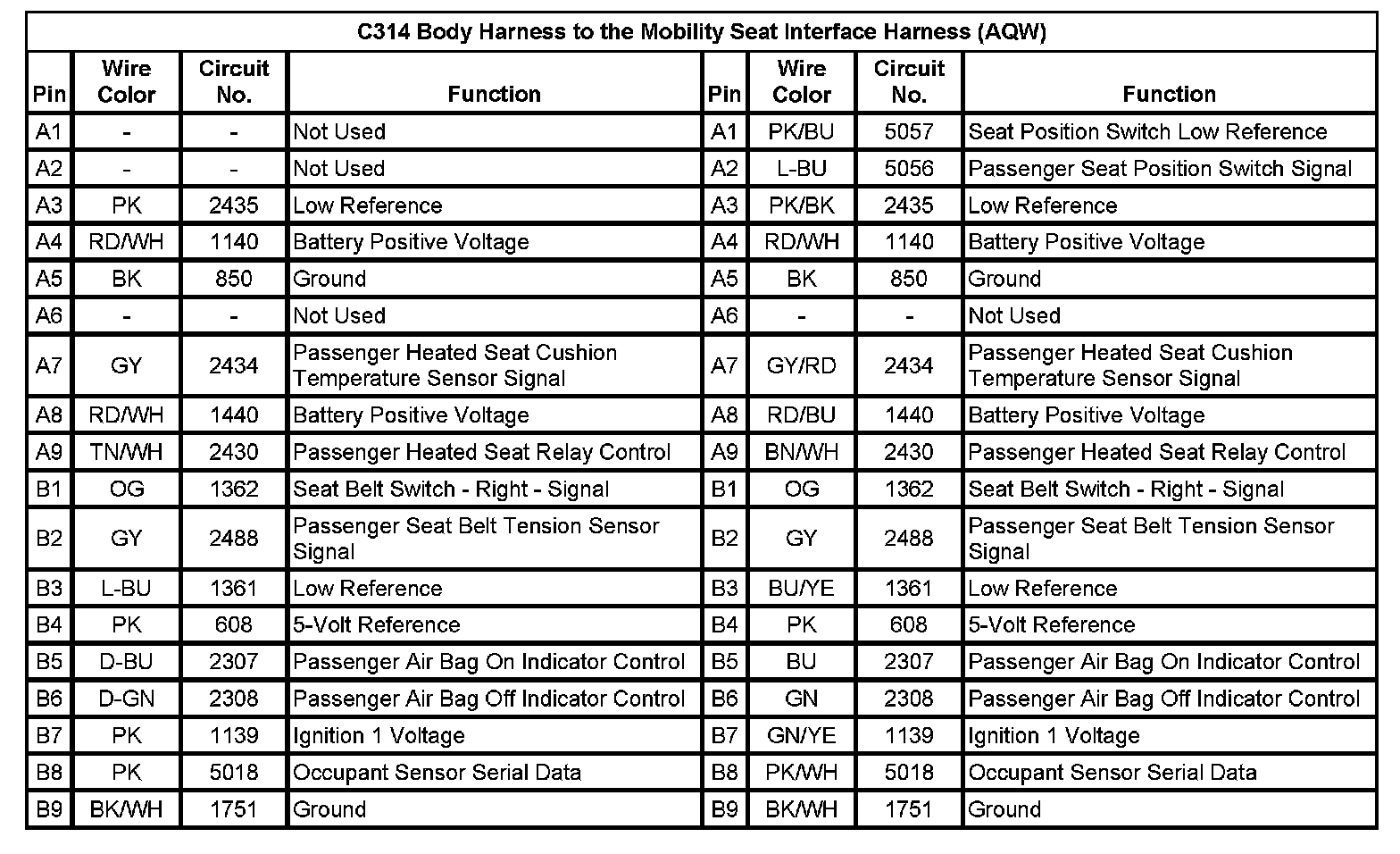

C314 Body Harness to the Mobility Seat Interface Harness (AQW)

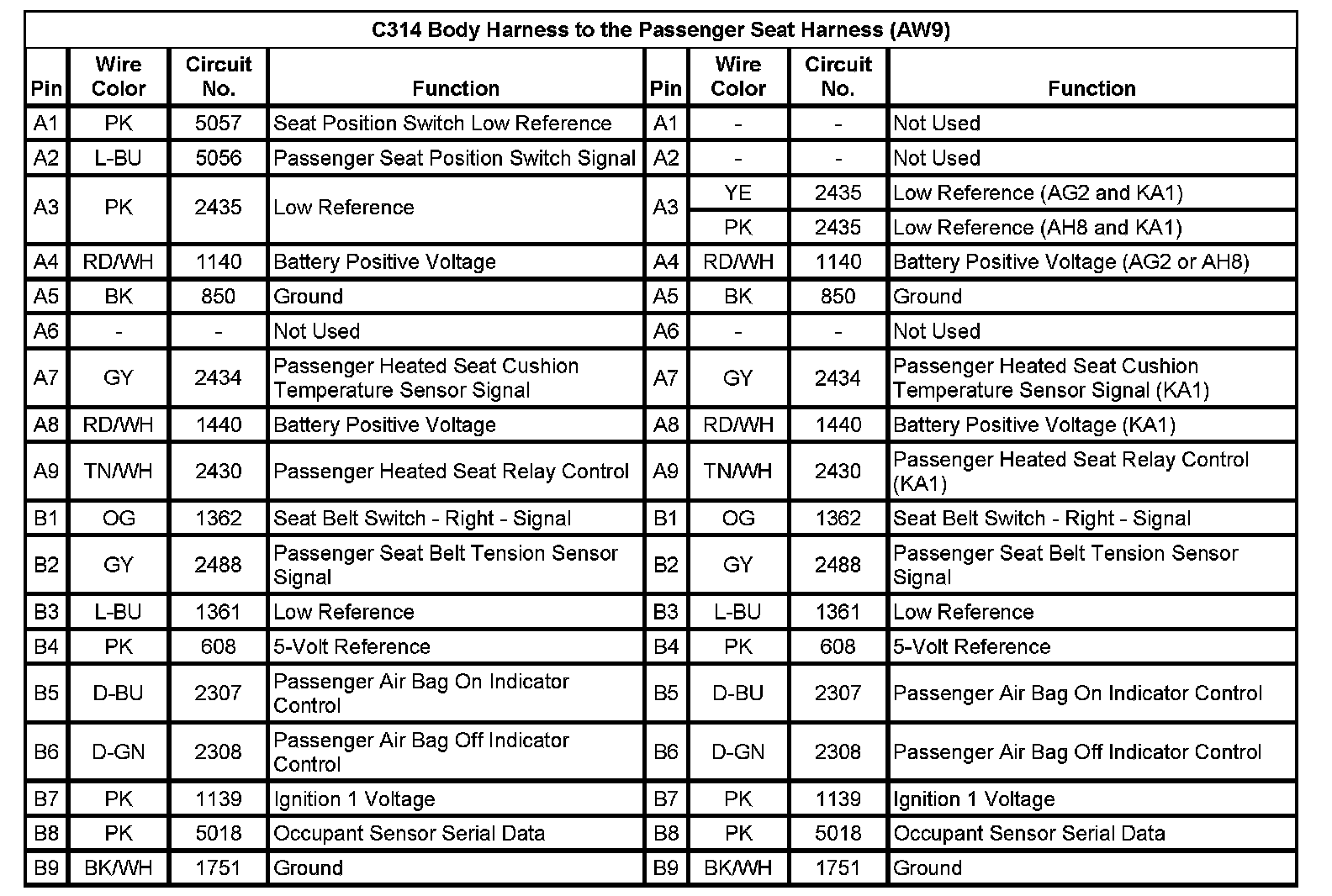

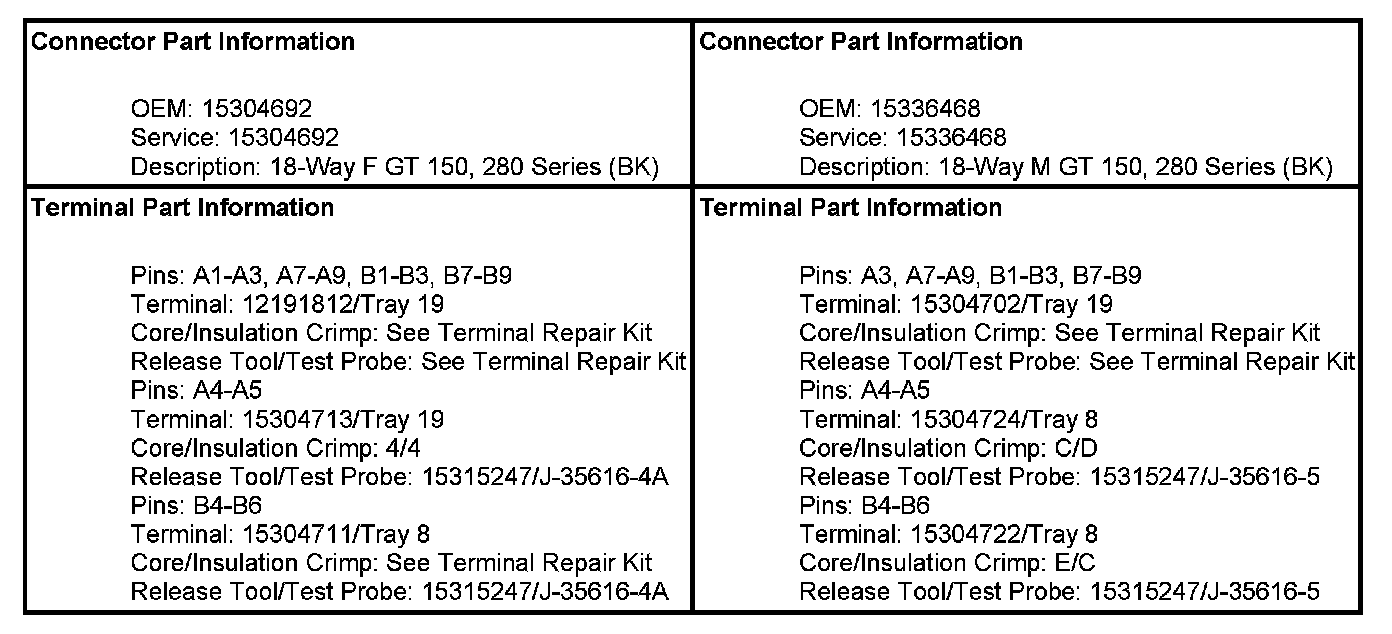

C314 Body Harness to the Passenger Seat Harness (AW9)

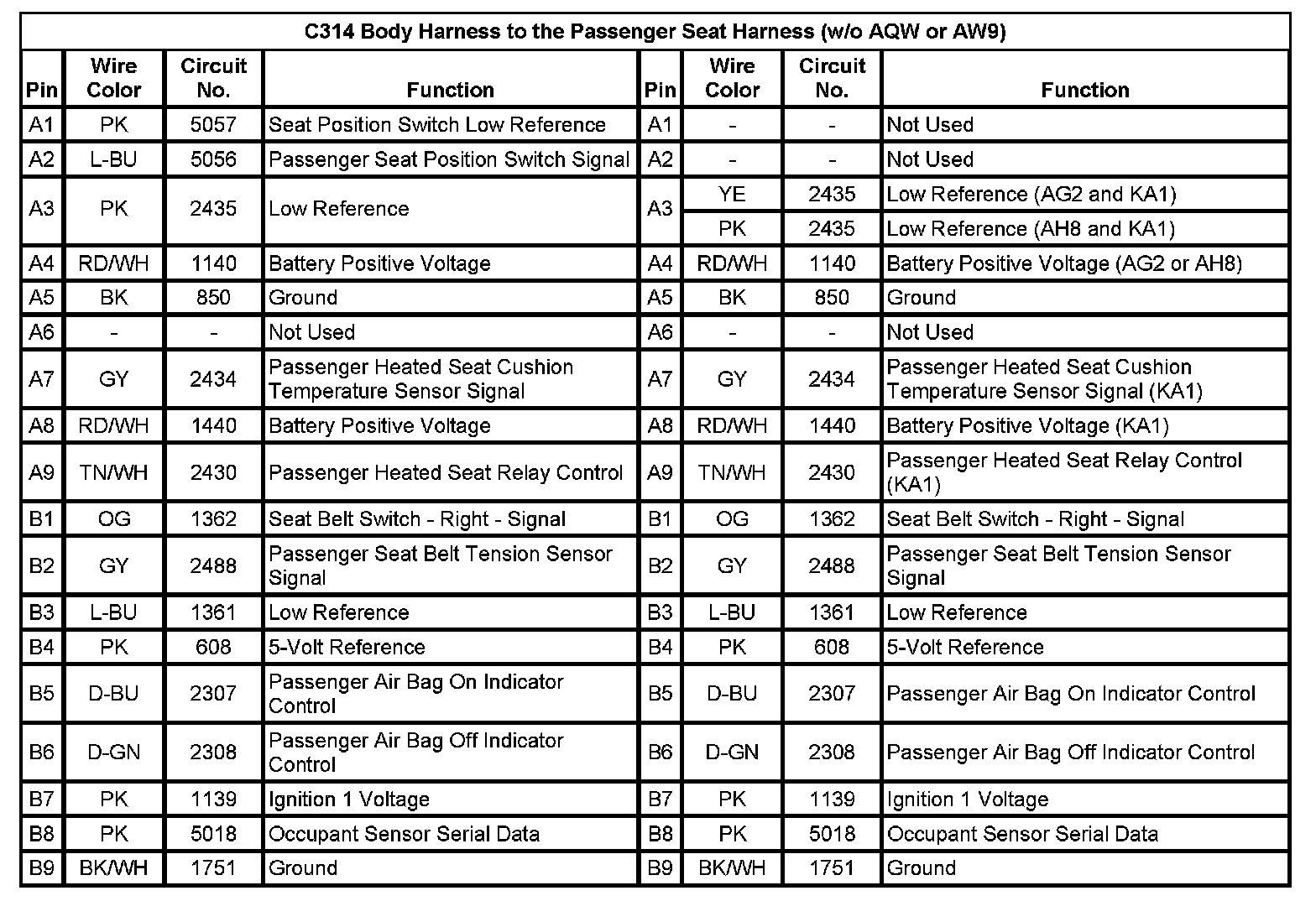

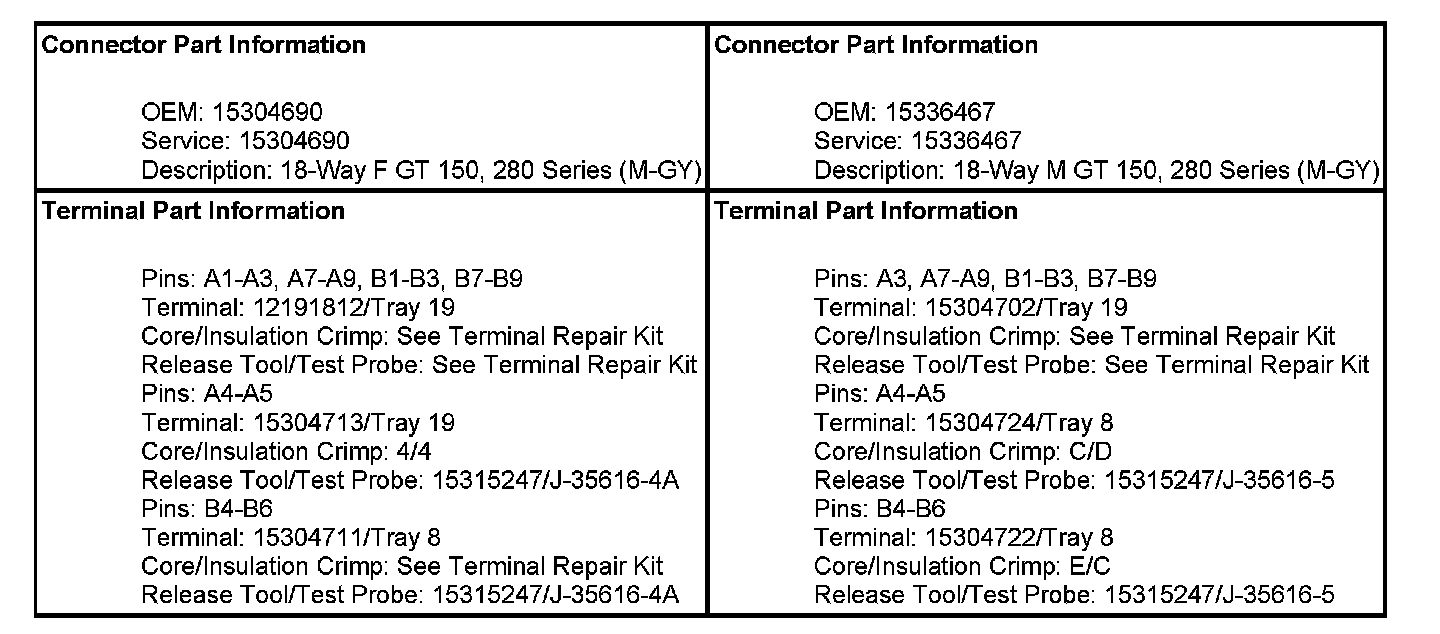

C314 Body Harness to the Passenger Seat Harness (w/o AQW or AW9)
