C203
C203
Inline Harness Connector End Views
C203 Body Harness to the I/P Harness

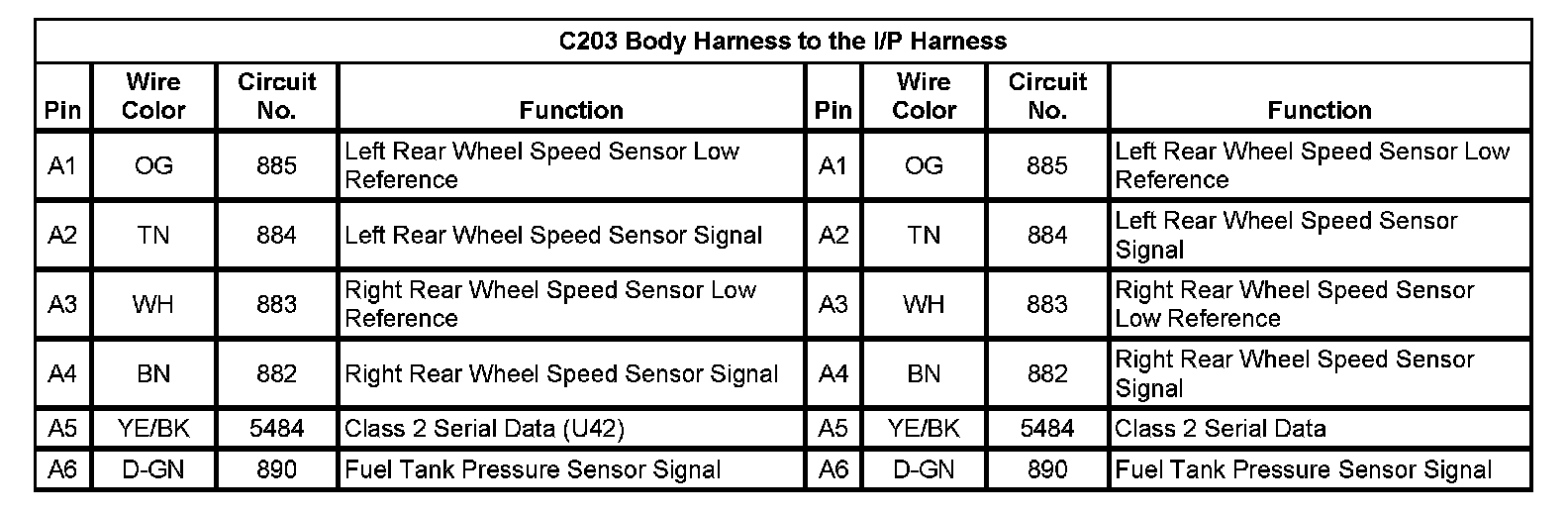

C203 Body Harness To The I/P Harness (Pin A1 To A6):
