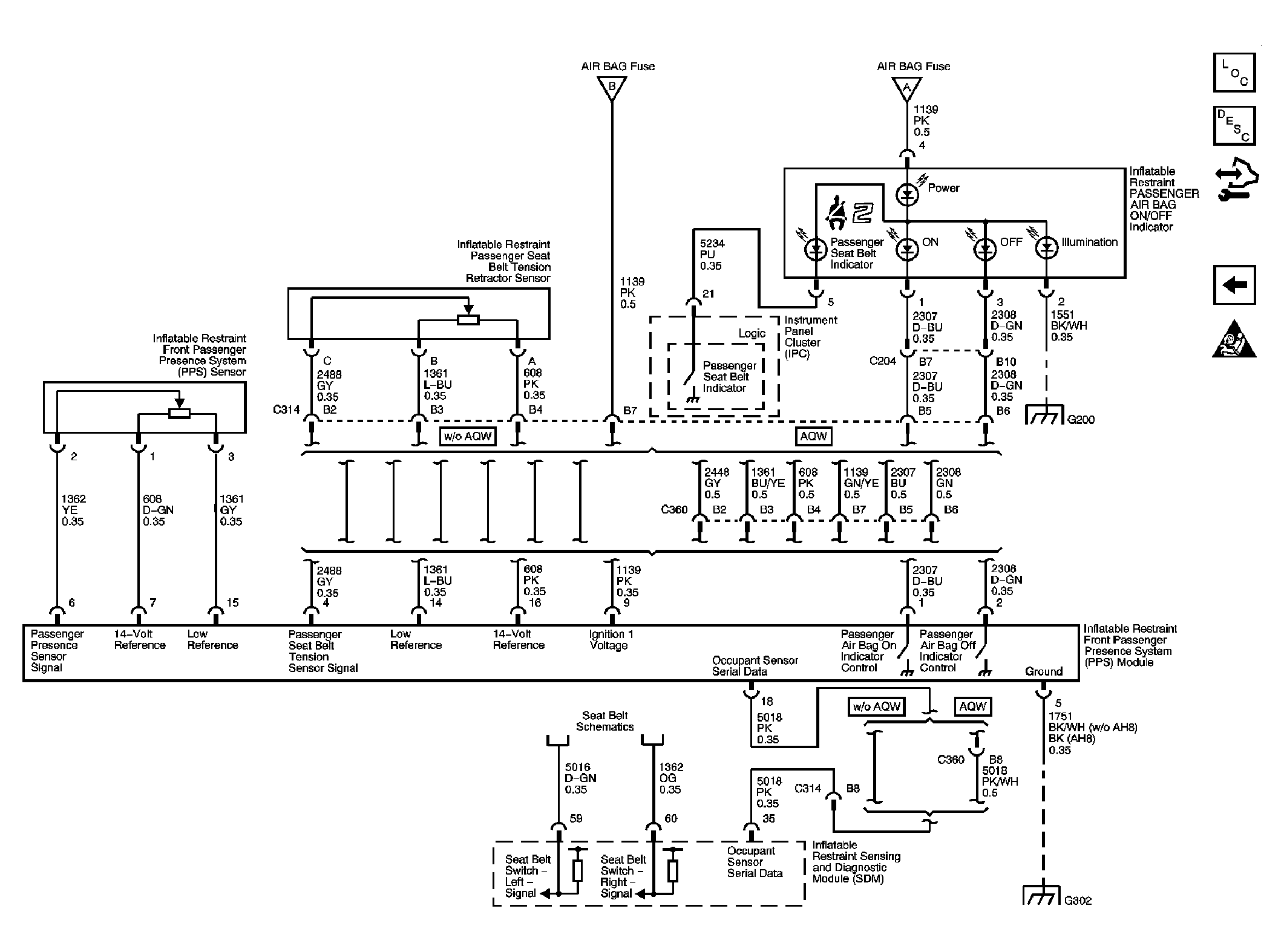

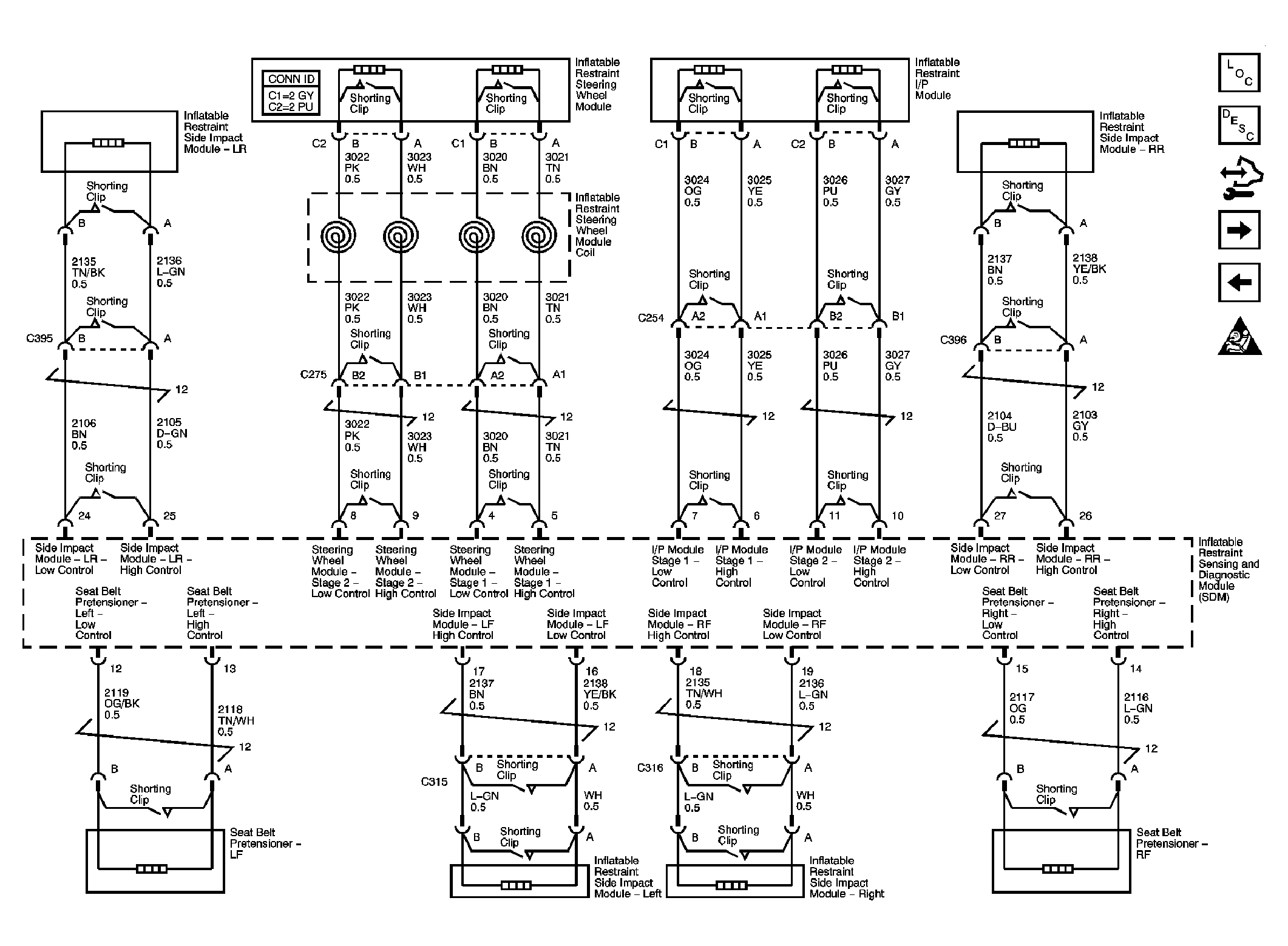

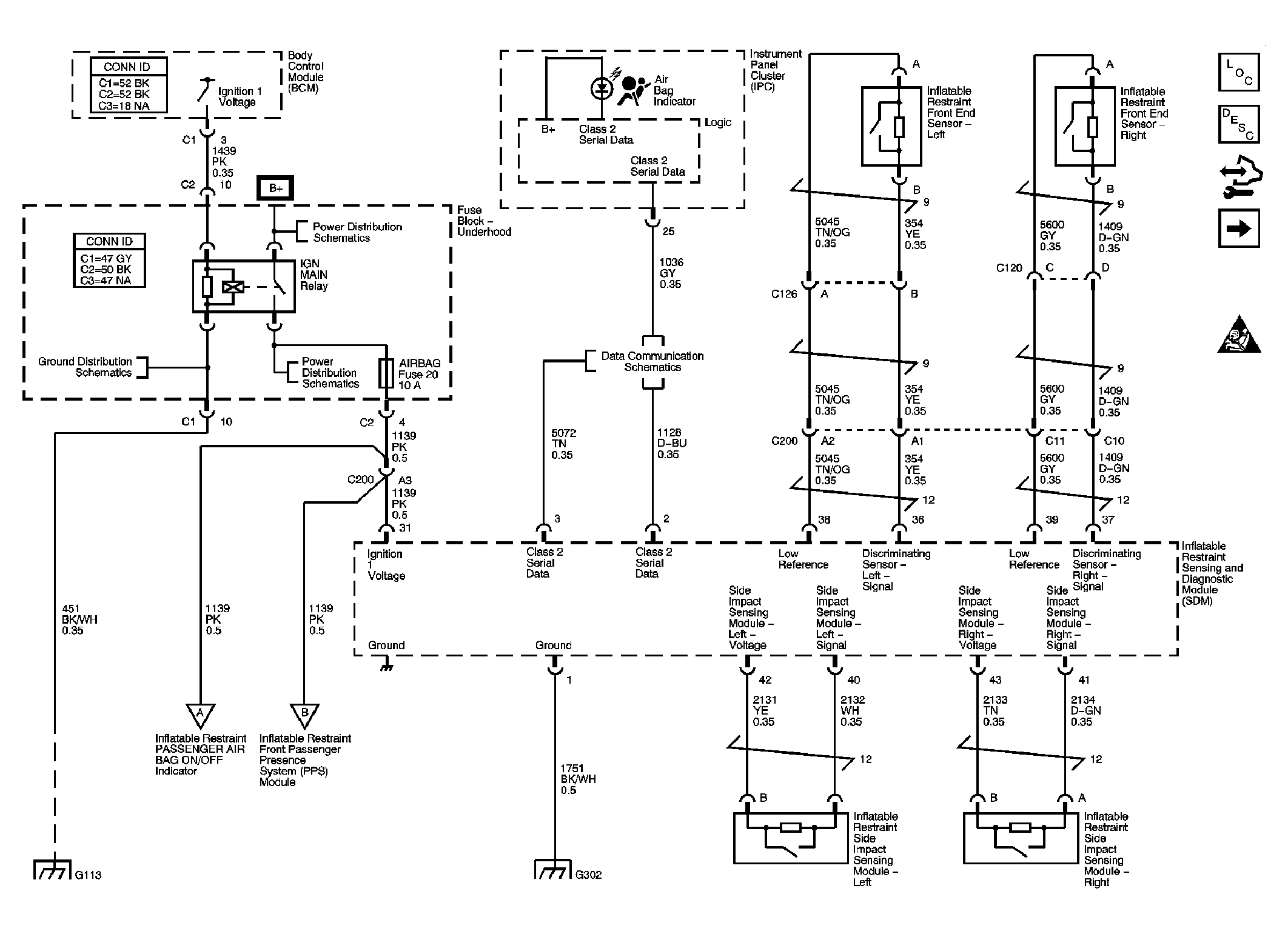

Home >> Chevrolet >> 2007 >> Uplander Base, 3.9 W >> Repair and Diagnosis >> Restraints >> Air Bag, SRS >> Supplemental Inflatable Restraint System >> Schematic and Routing Diagrams >> SIR Schematics (AW9)
