Instrument Panel Center Air Outlet Replacement

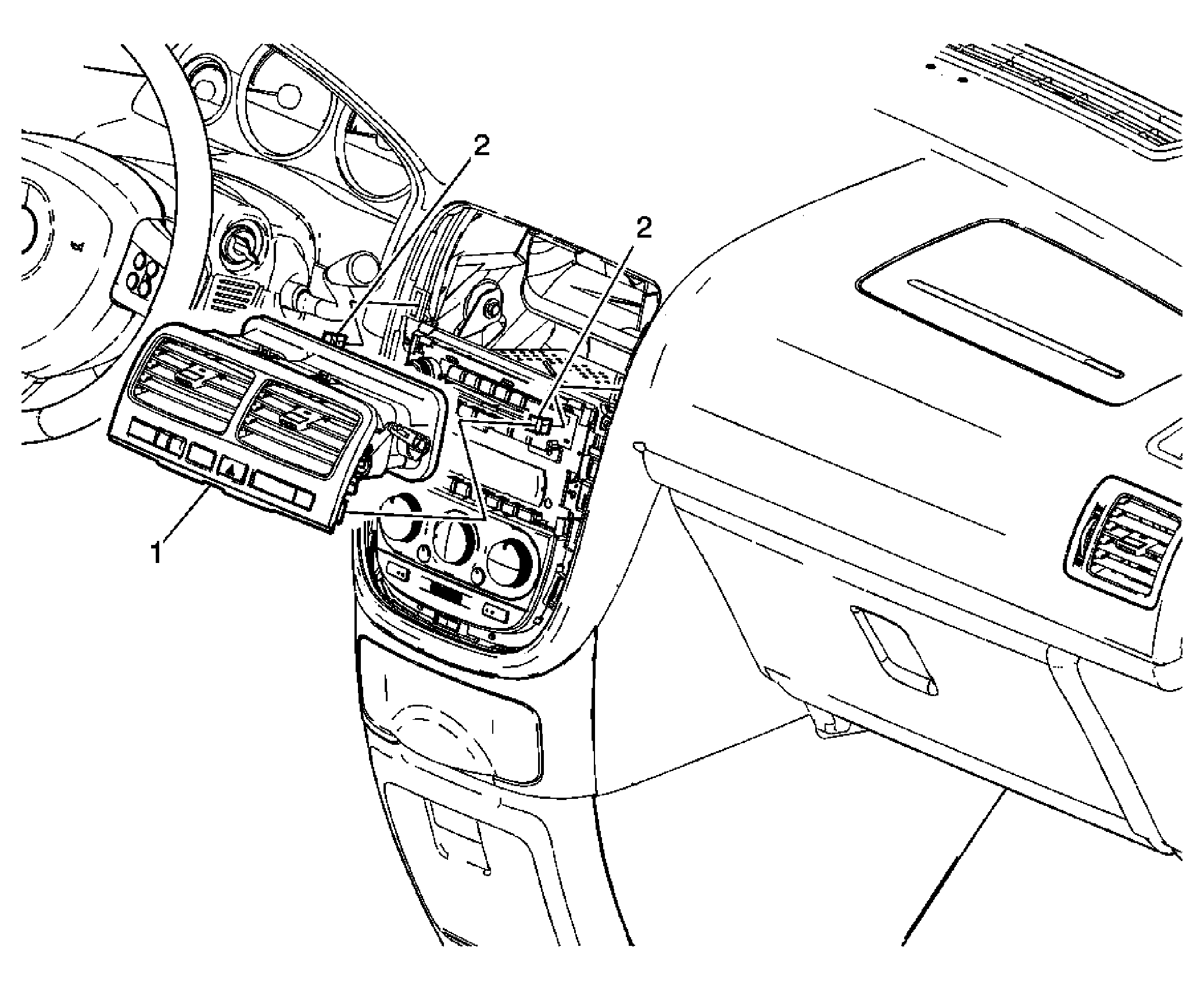

Fig 1: Instrument Panel Center Air Outlet
GM1750453Courtesy of GENERAL MOTORS CORP.
Instrument Panel Center Air Outlet Replacement

Callout Component Name
1 Instrument Panel Air Outlet Assembly - Center
Tip:
  1. Use a flat-bladed plastic trim tool to remove the air outlet from the instrument panel (I/P).
  2. Disconnect the electrical connectors.
  3. When replacing the air outlet assembly transfer all necessary components.
2 Retainer Clips (Qty: 2)
