HVAC Schematics

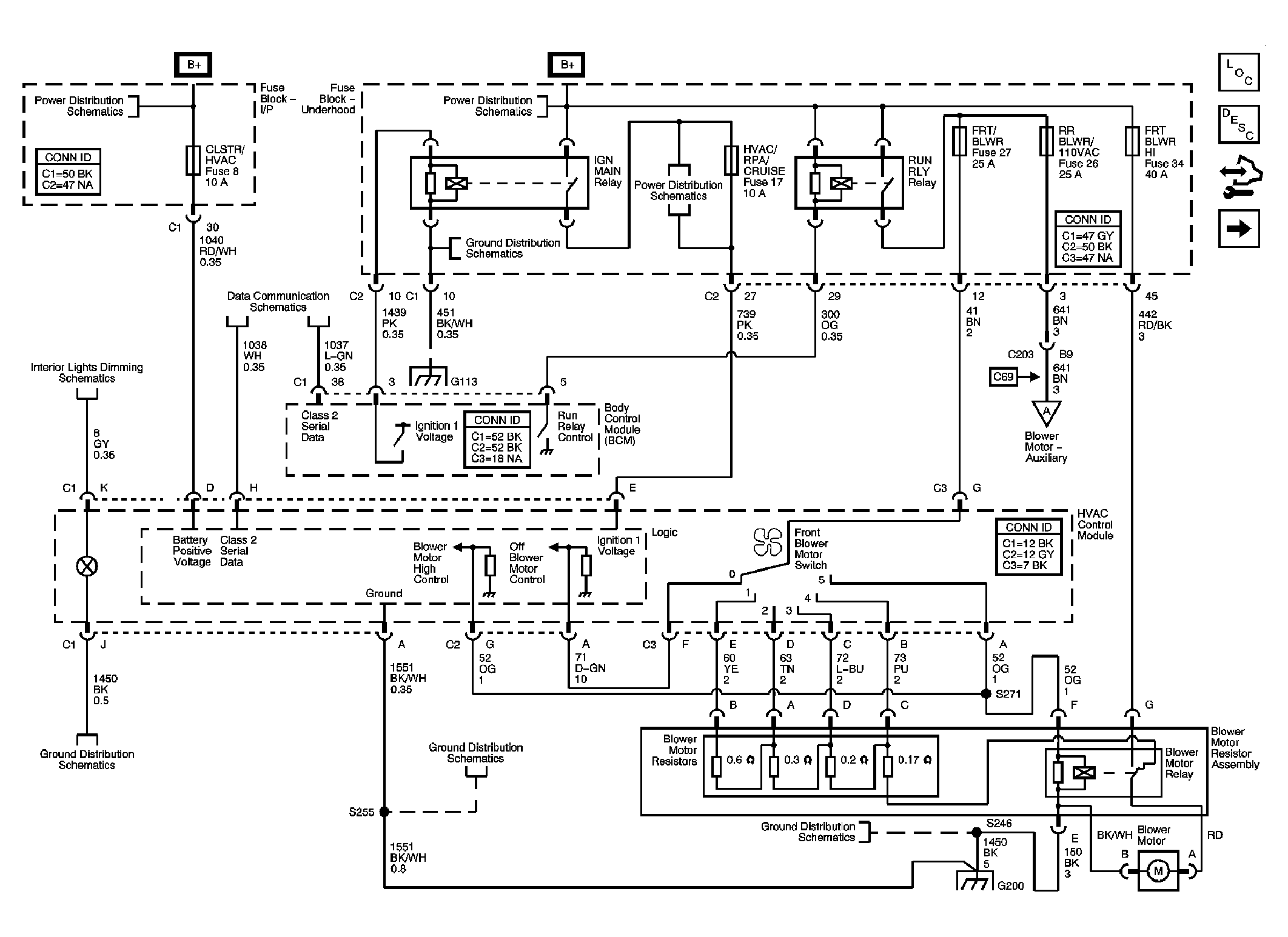

Fig 1: Front Blower Control, Ground, and Power
GM1740079Courtesy of GENERAL MOTORS CORP.

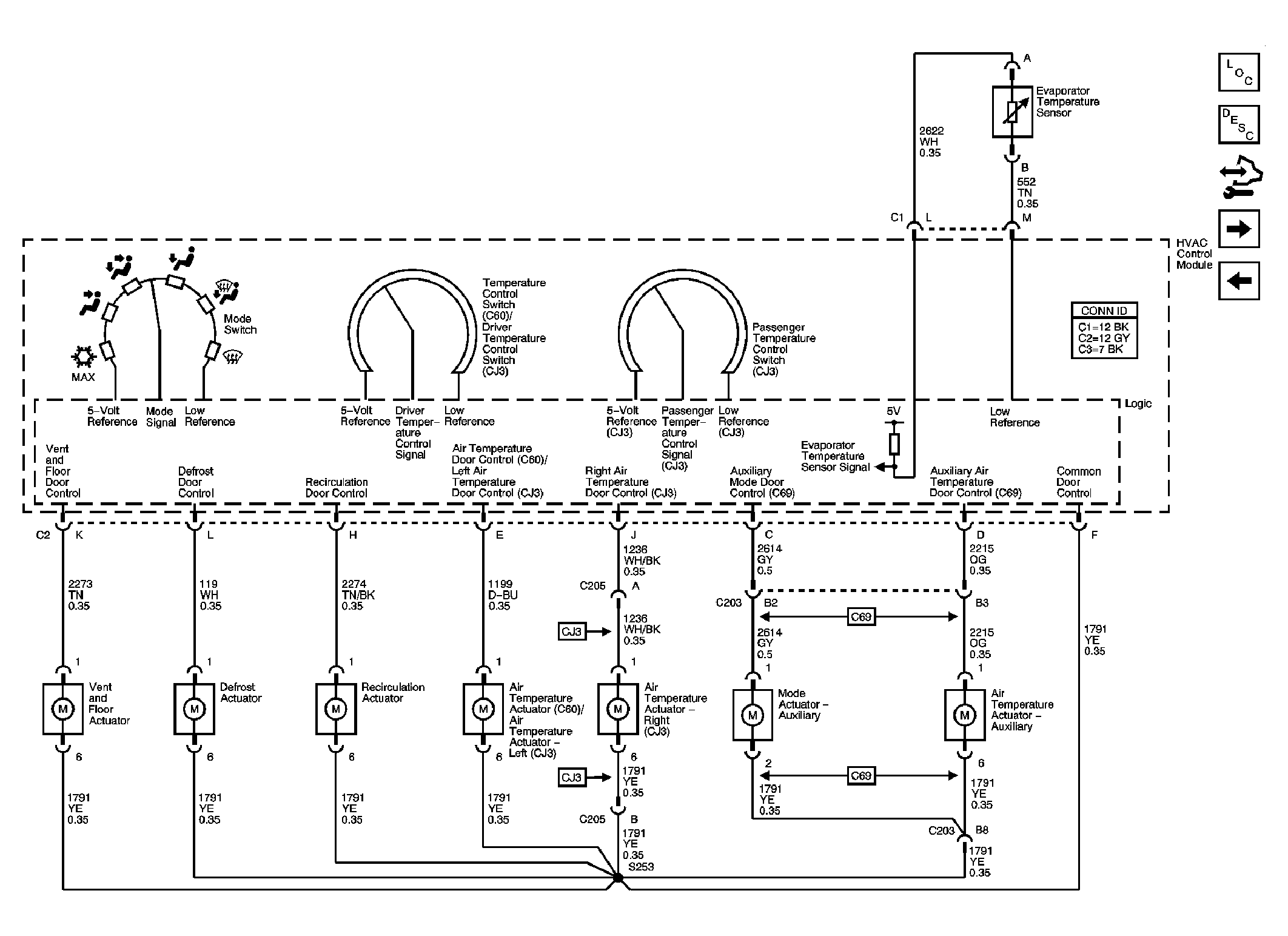

Fig 2: Air Delivery and Temperature Control
GM1740080Courtesy of GENERAL MOTORS CORP.

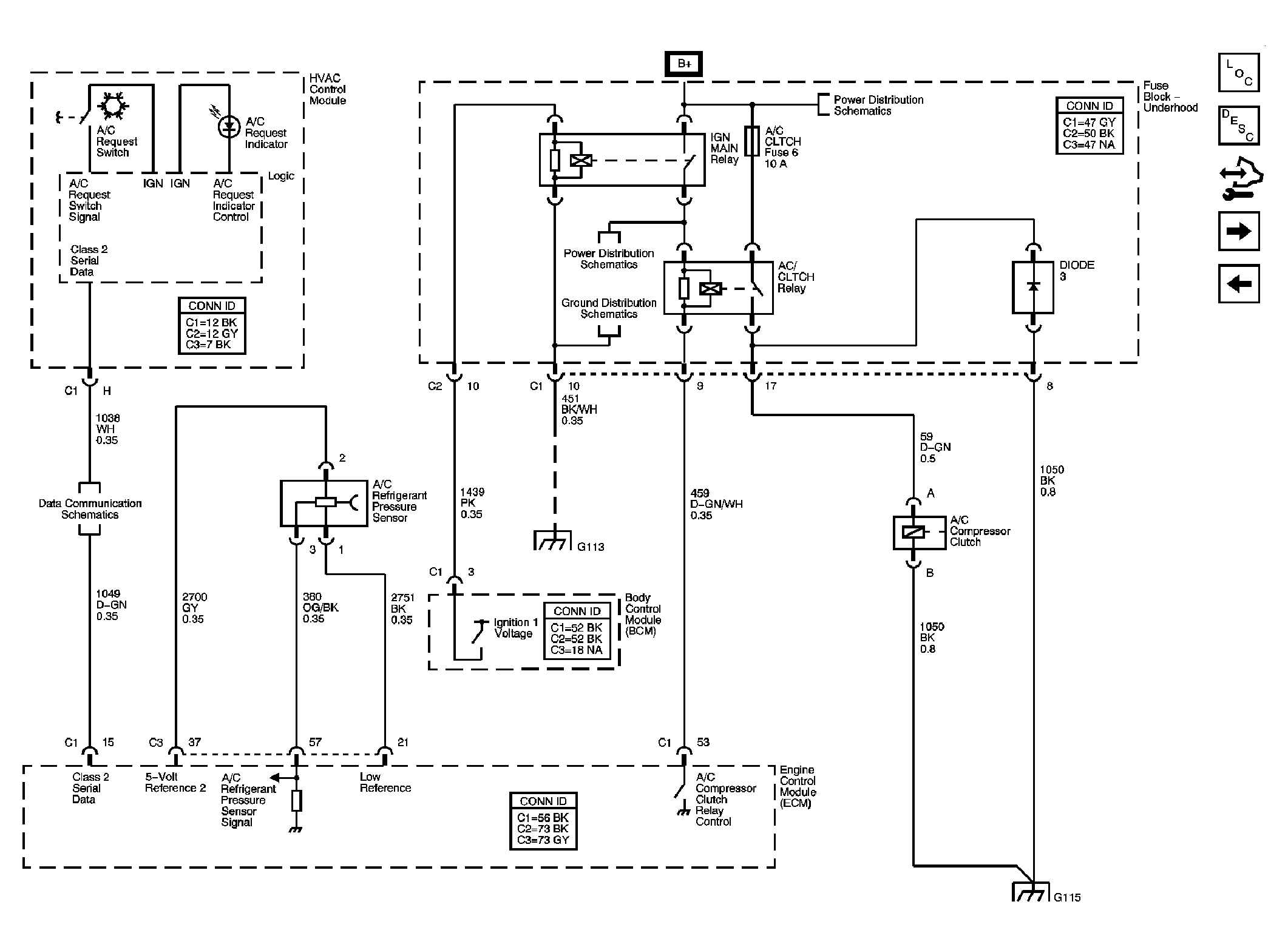

Fig 3: A/C Compressor Controls
GM1740082Courtesy of GENERAL MOTORS CORP.

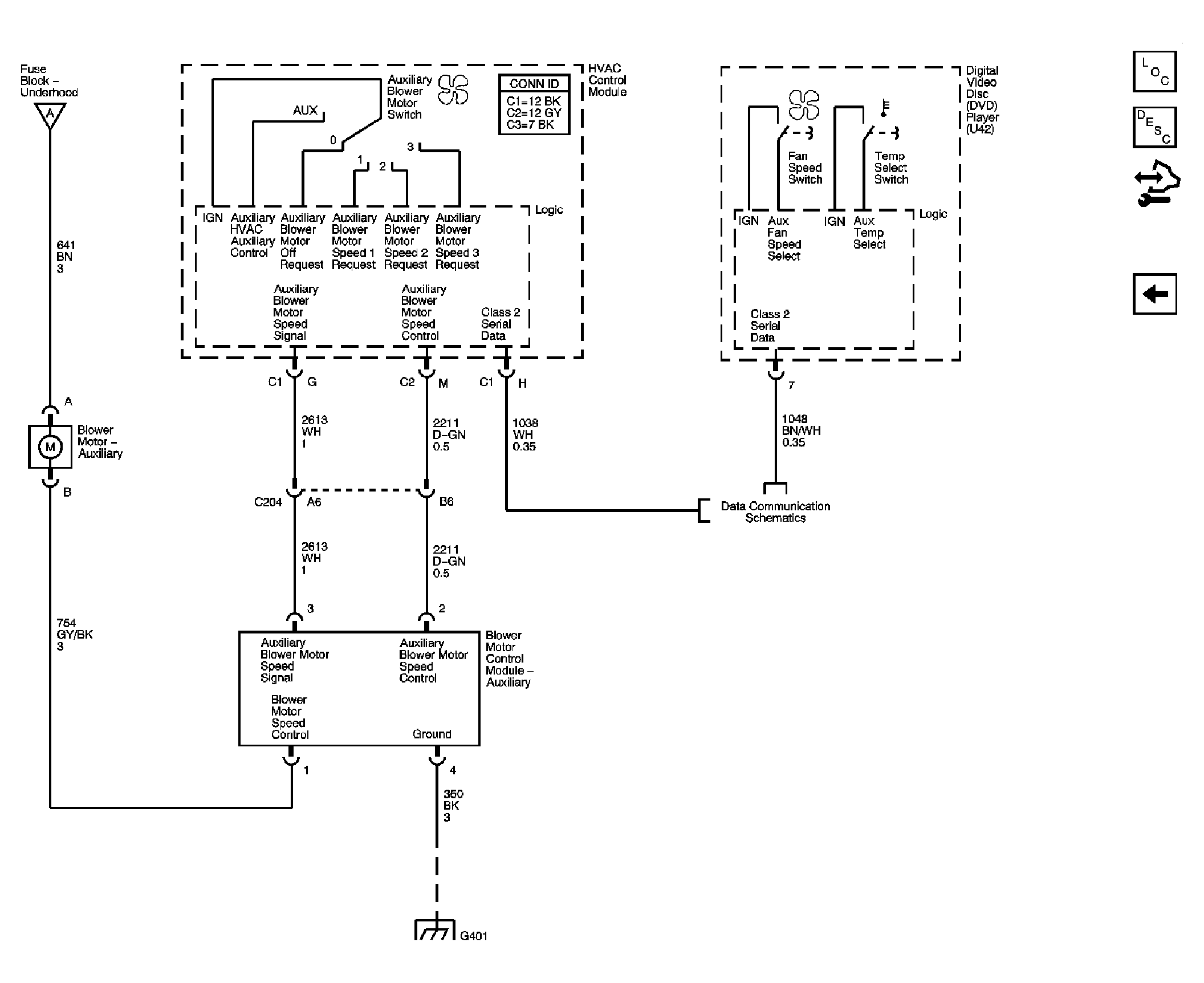

Fig 4: Auxiliary Blower Controls - C69
GM1740083Courtesy of GENERAL MOTORS CORP.
