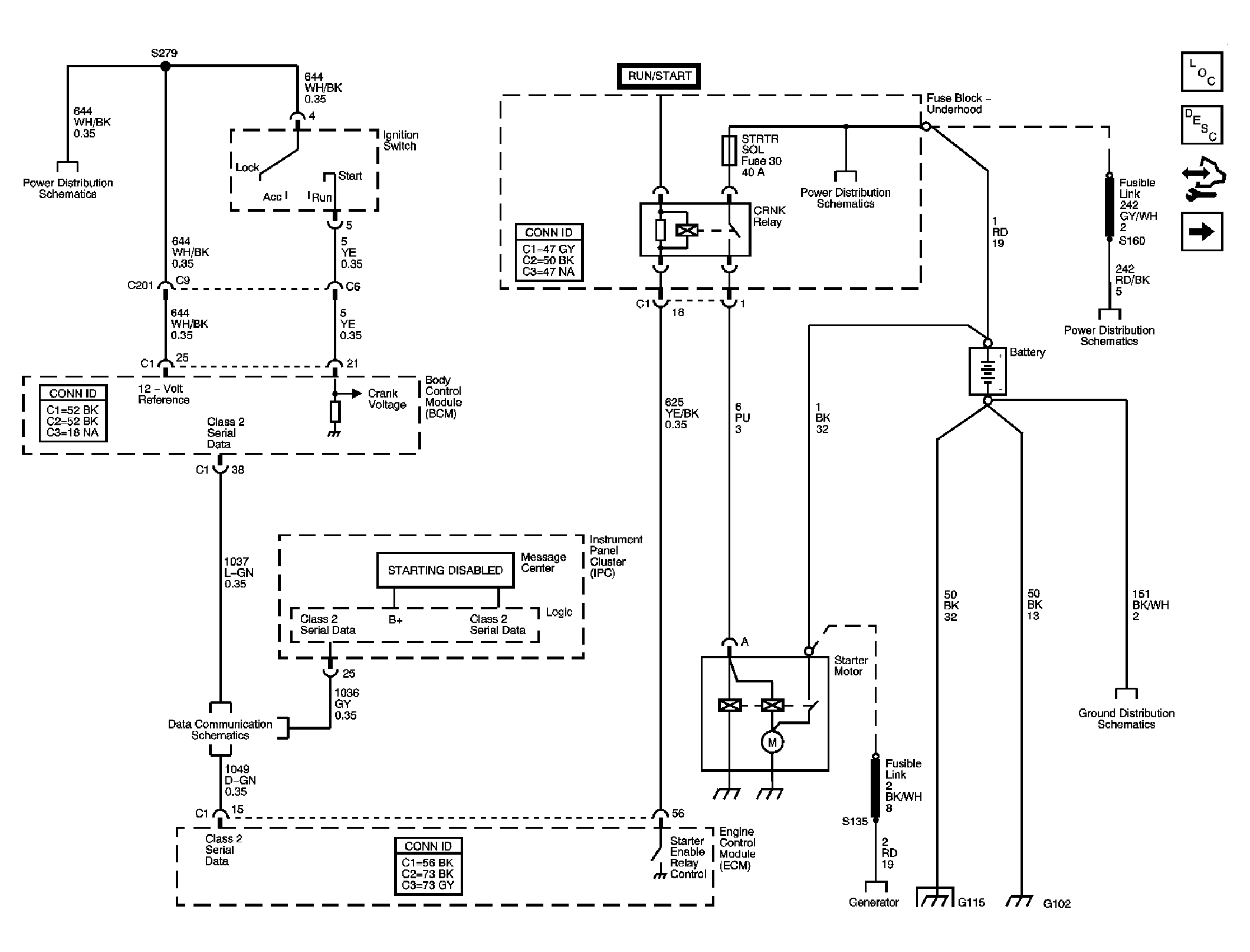

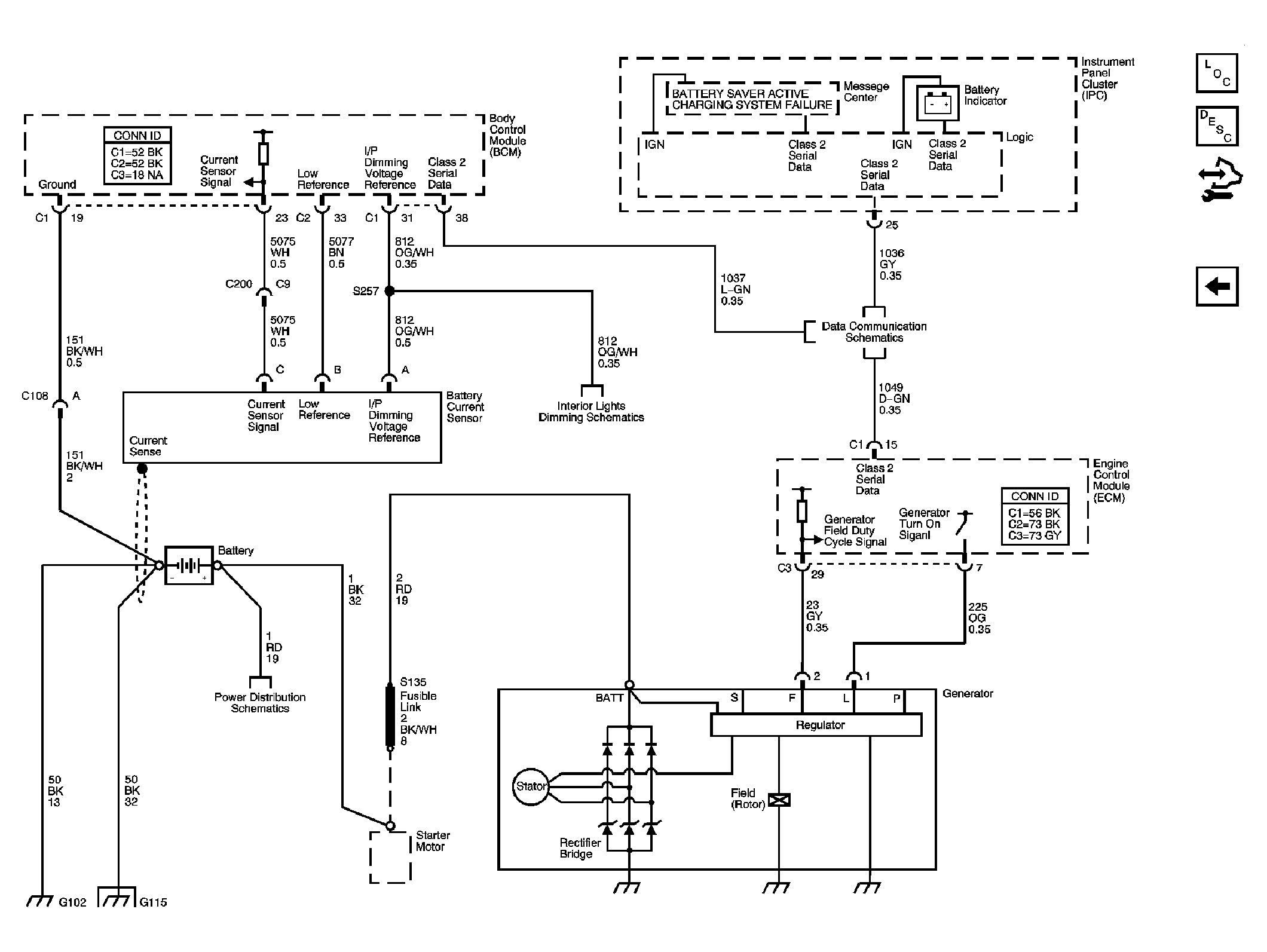

Home >> Chevrolet >> 2007 >> Uplander Base, 3.9 W >> Repair and Diagnosis >> Engine Mechanical >> Starter >> Battery, Charging System And Starting System >> Schematic and Routing Diagrams >> Starting and Charging Schematics
