Cigar Lighter/Power Outlet Schematics

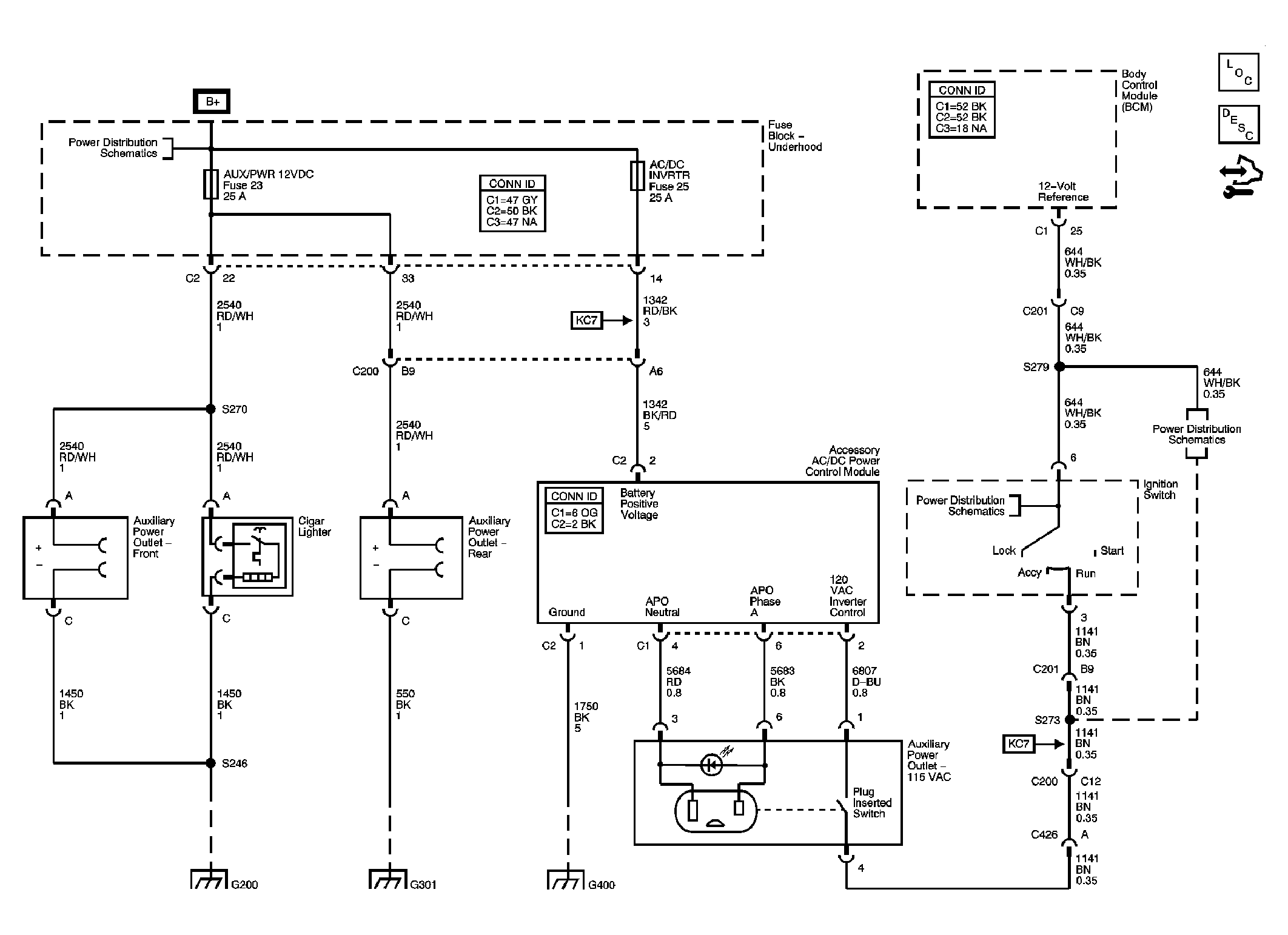

Fig 1: Cigar Lighter/Power Outlet Schematic

GM1740022

Courtesy of GENERAL MOTORS CORP.
