Instrument Cluster Schematics

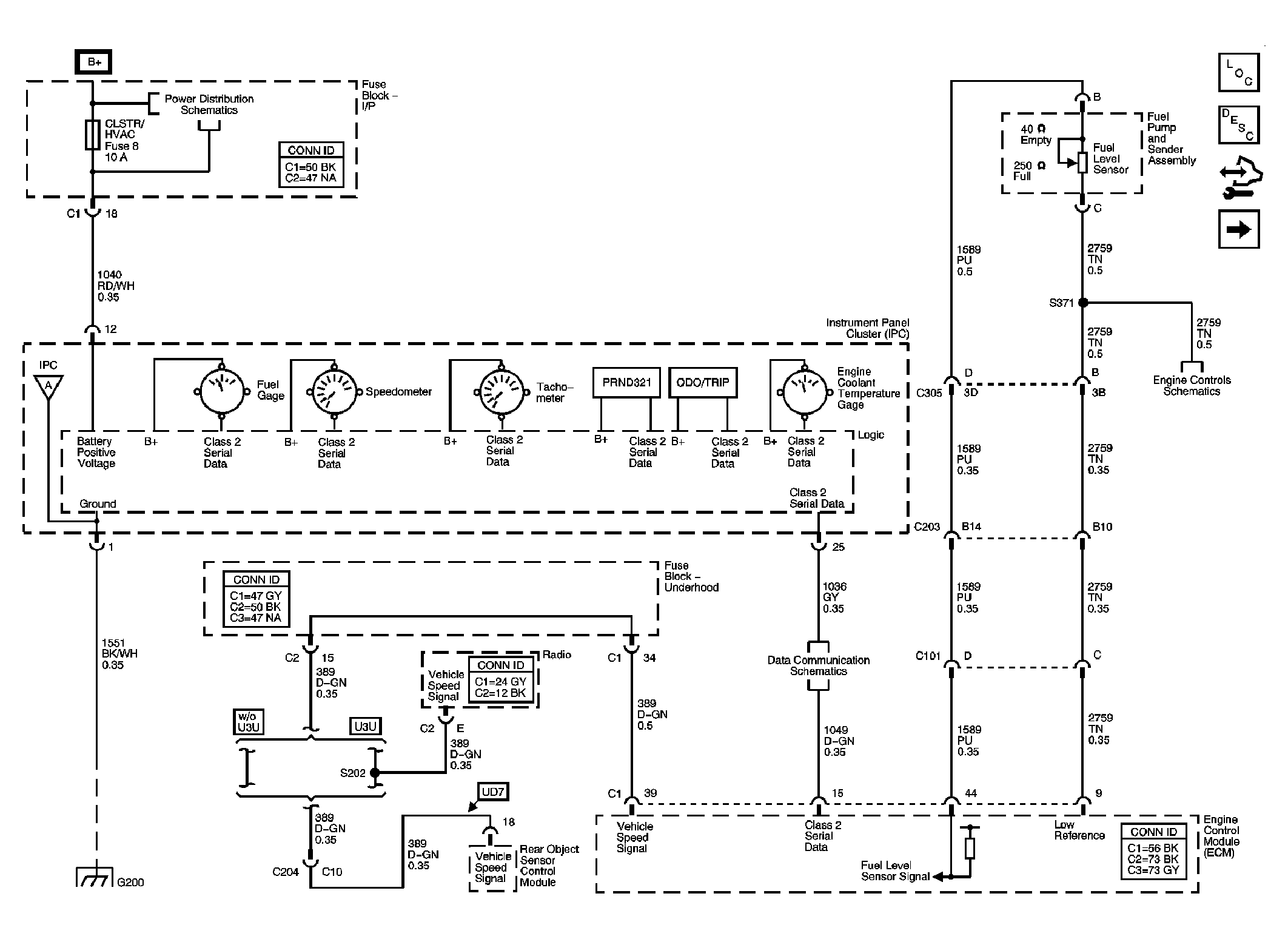

Fig 1: Gages, Ground, and Power
GM1740088Courtesy of GENERAL MOTORS CORP.

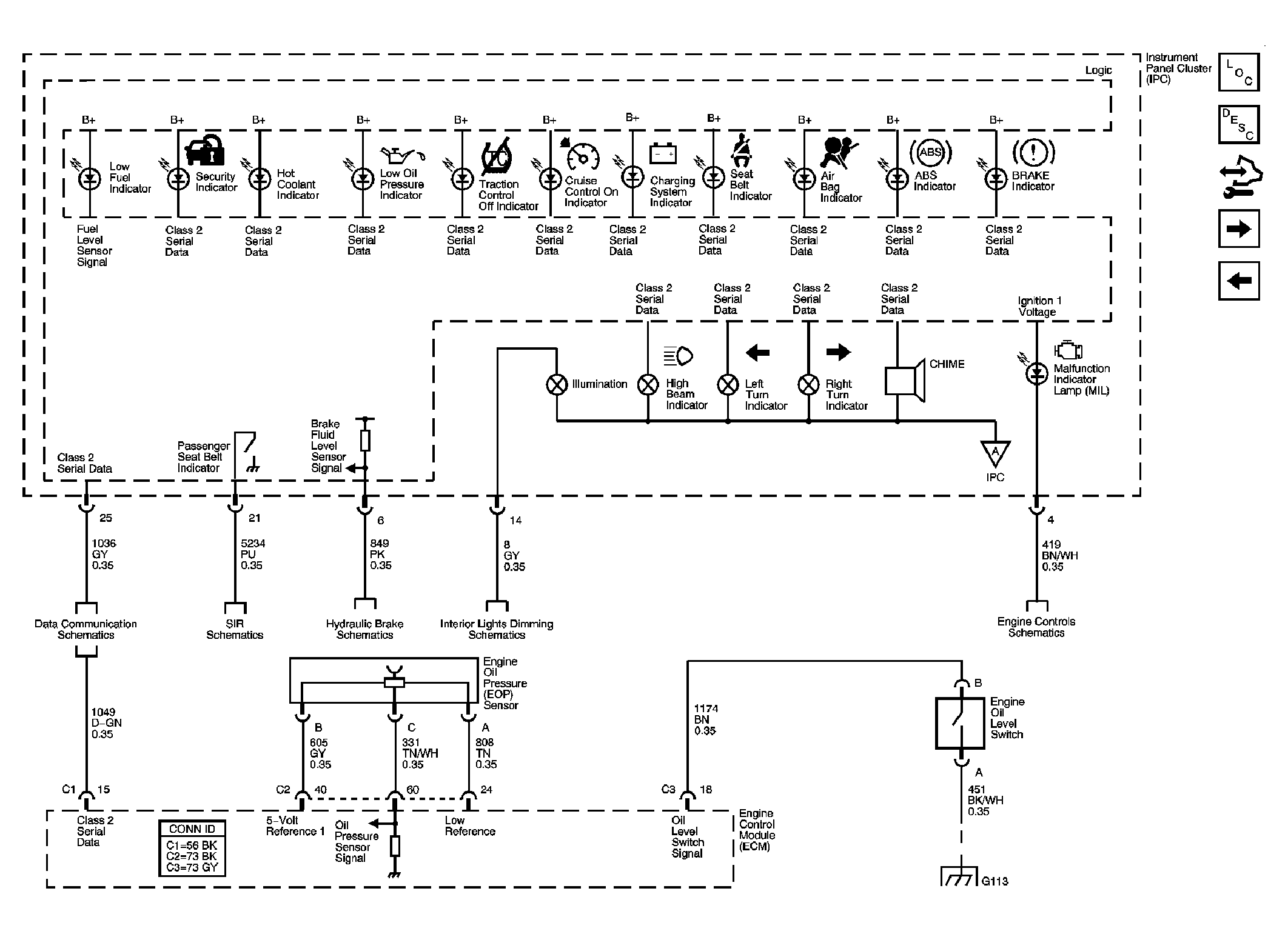

Fig 2: Indicators and Lighting
GM1740090Courtesy of GENERAL MOTORS CORP.

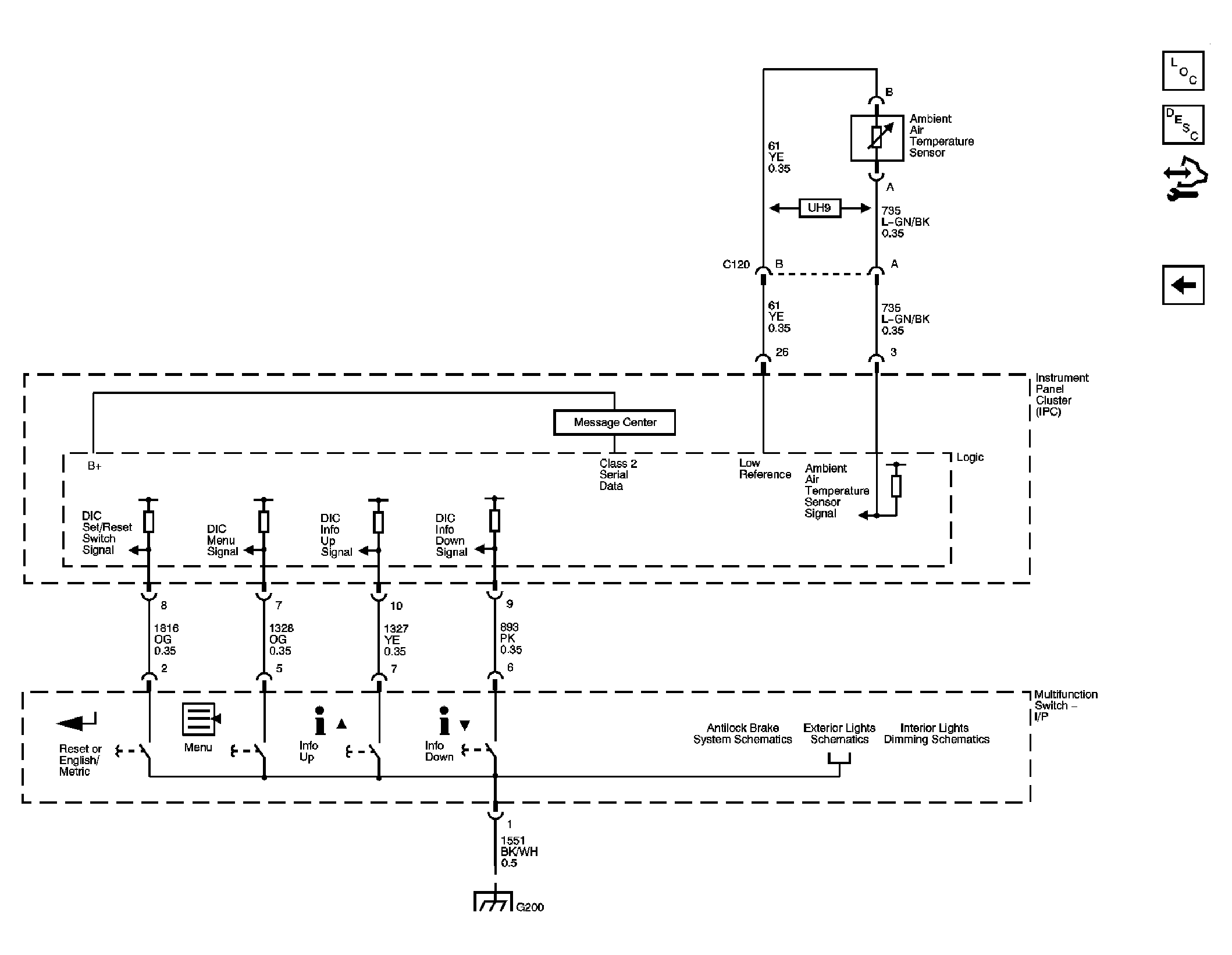

Fig 3: Messages
GM1740092Courtesy of GENERAL MOTORS CORP.
