Driver Seat Schematics

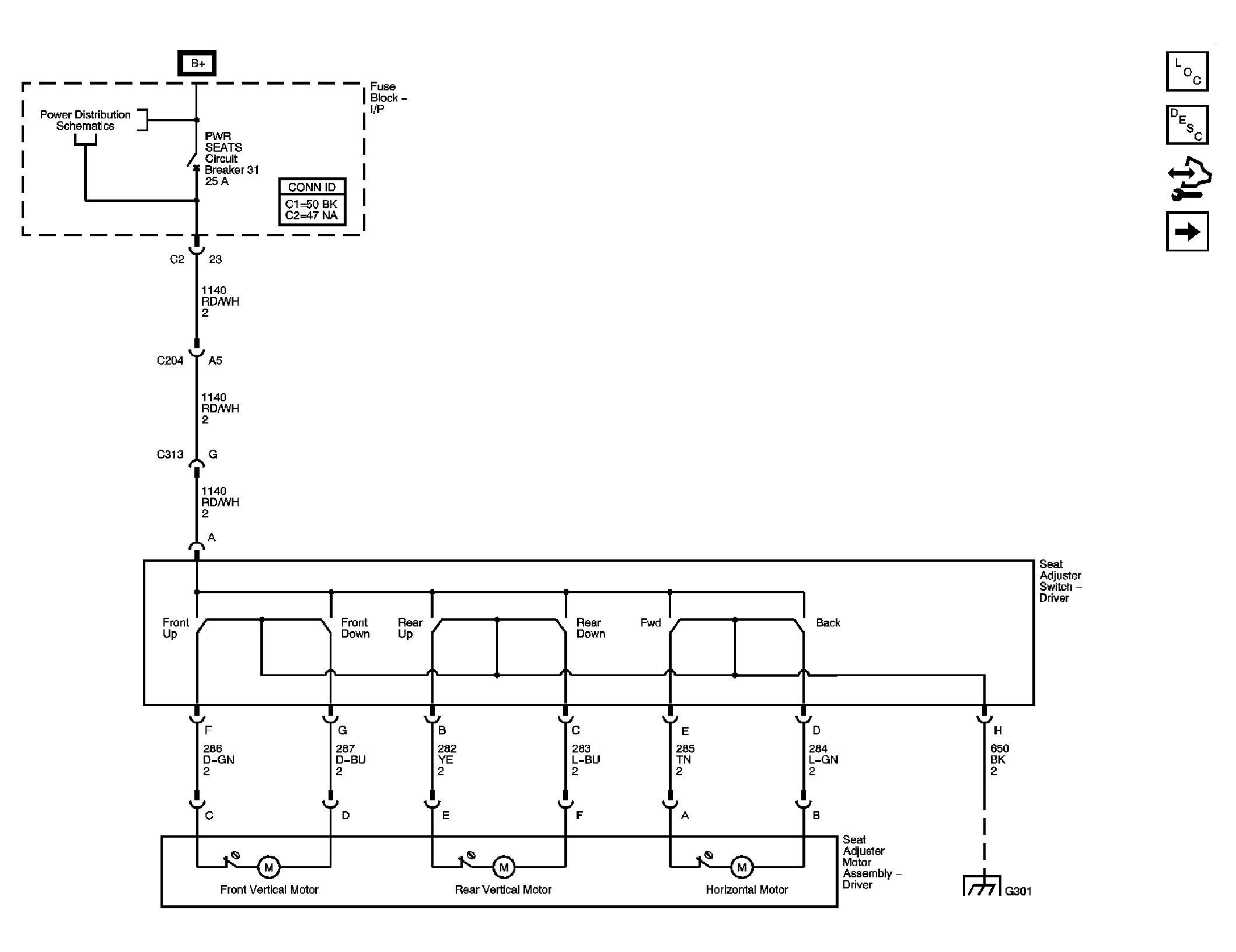

Fig 1: Power Seat

GM1740129

Courtesy of GENERAL MOTORS CORP.

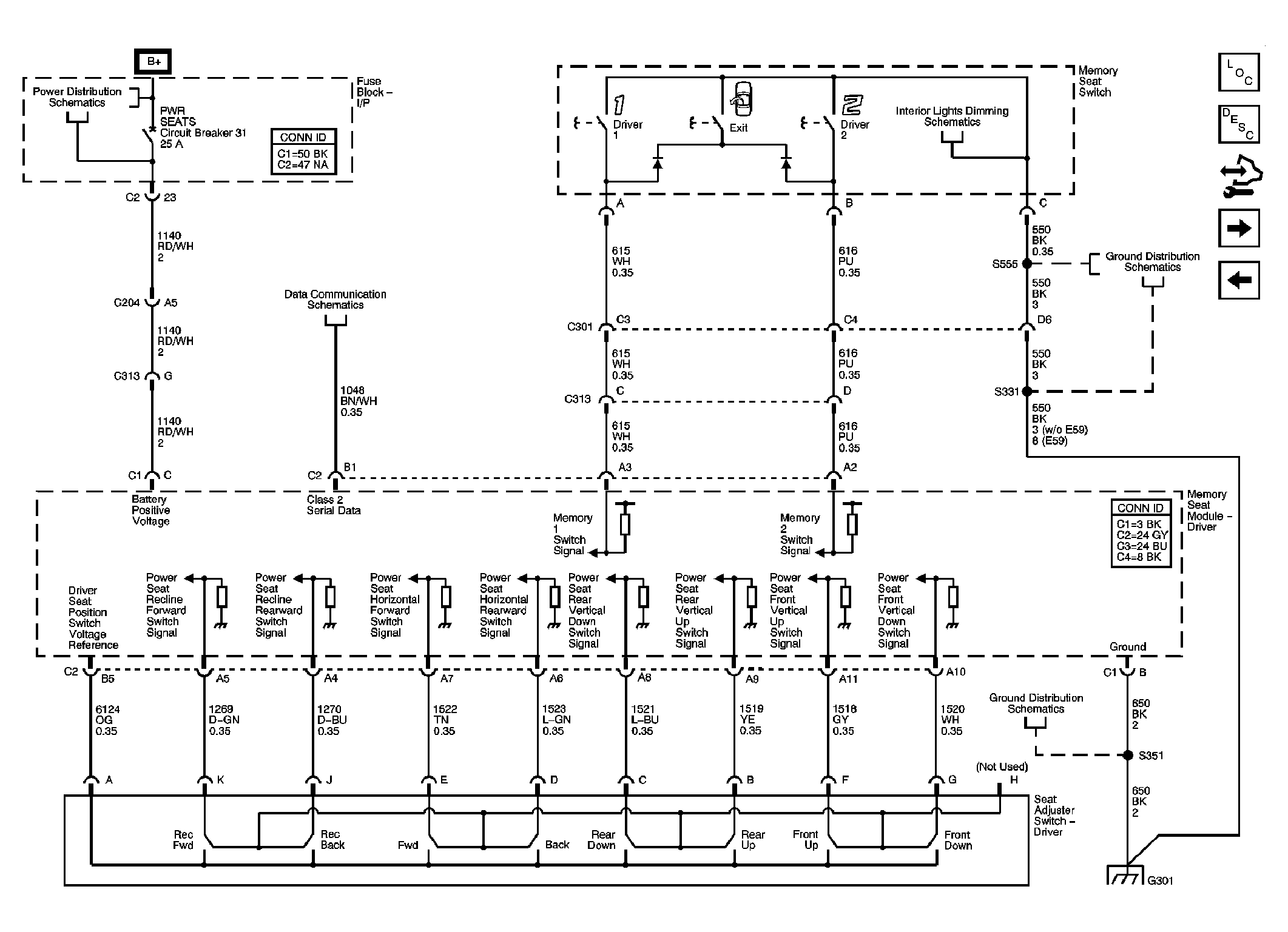

Fig 2: Memory Seat Controls

GM1740131

Courtesy of GENERAL MOTORS CORP.

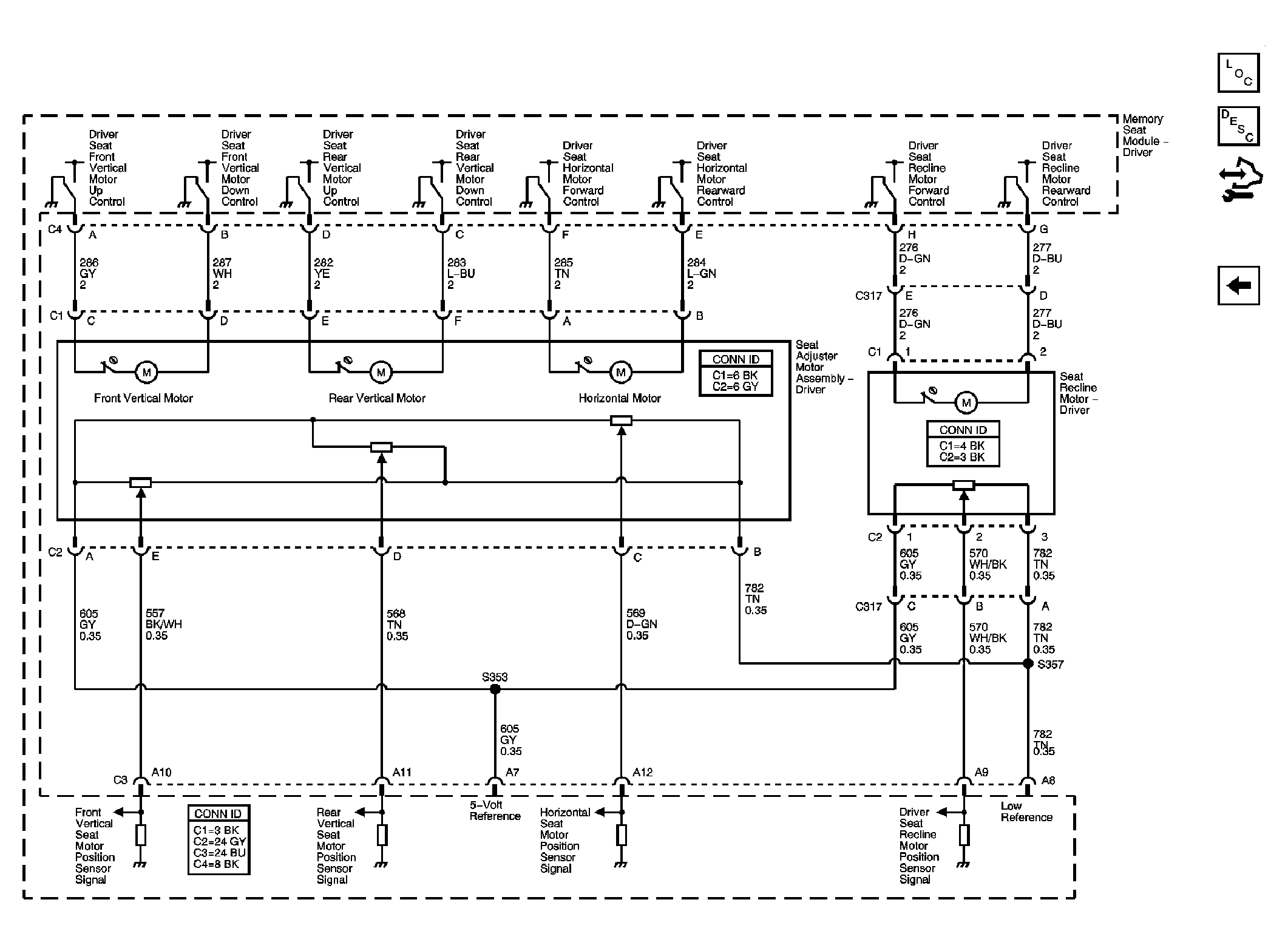

Fig 3: Memory Seat Motors and Sensors

GM1740132

Courtesy of GENERAL MOTORS CORP.
