Inflator Air Valve Opening Cover Replacement

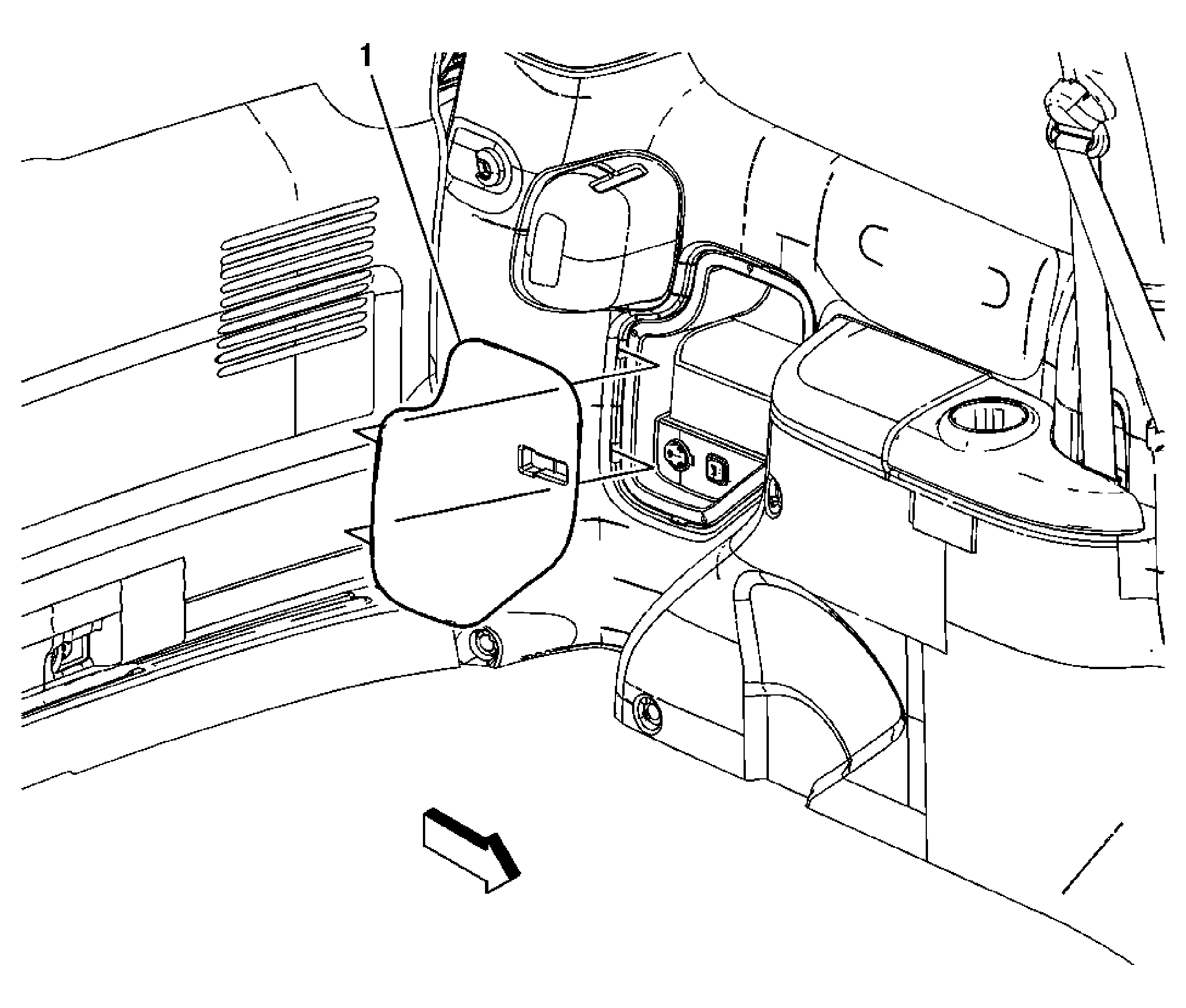

Fig 1: Replacing Inflator Air Valve Opening Cover
GM1793901Courtesy of GENERAL MOTORS CORP.
Inflator Air Valve Opening Cover Replacement

Callout Component Name
1 Inflator Air Valve Opening Cover Assembly
Tip:
  1. Open the cover using the latch.
  2. Remove the cover from the hinges and trim panel.
