Front End Sheet Metal Diagonal Brace Replacement (Buick)
Front End Sheet Metal Diagonal Brace Replacement (Buick)

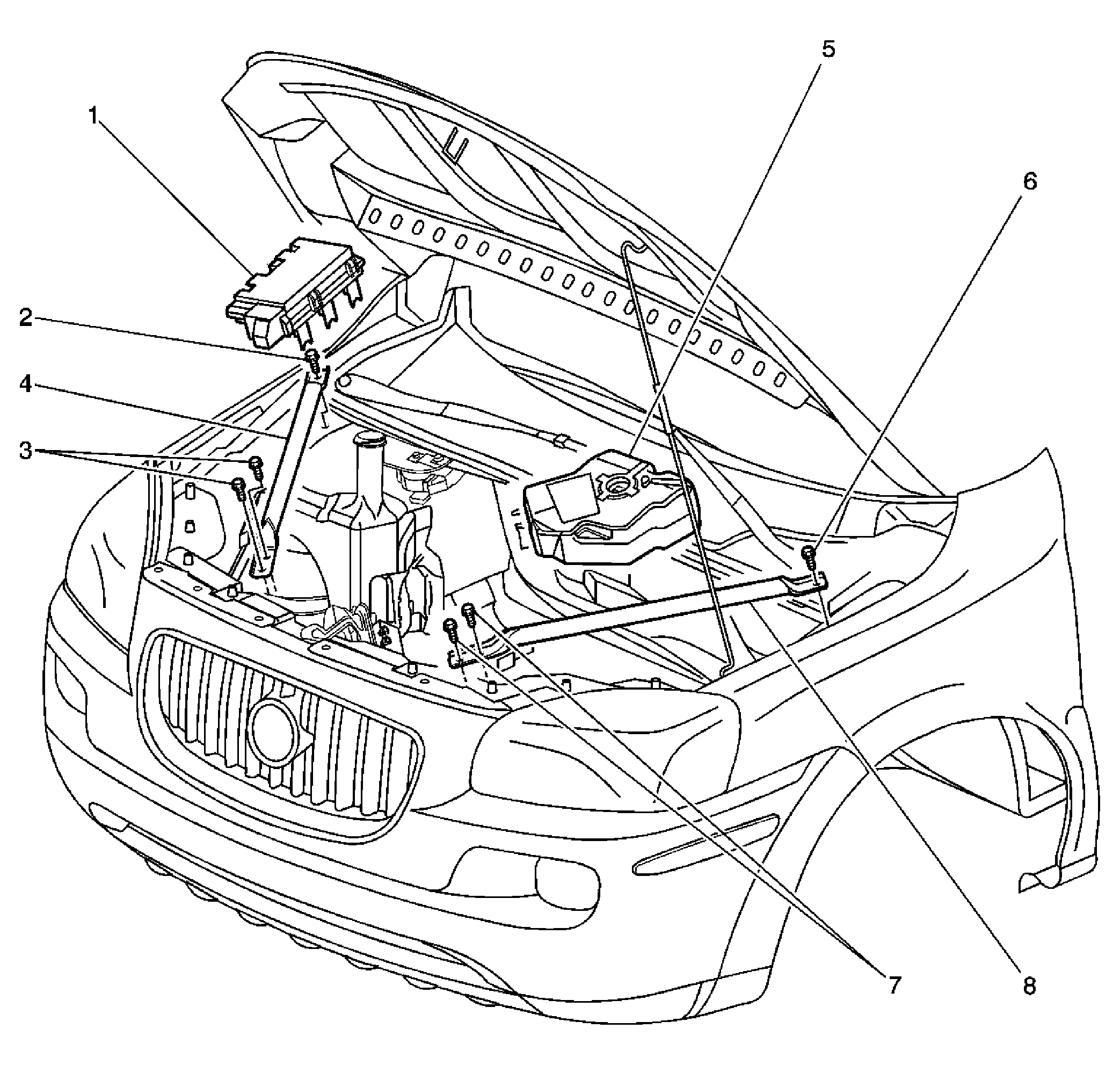

| Callout | Component Name |
|---|---|
| Front End Sheet Metal Right Diagonal Brace Replacement | |
| 1 | Accessory Wiring Junction Block Assembly Refer to Underhood Electrical Center or Junction Block Replacement . |
| 2 | Front End Sheet Metal Diagonal Brace Bolt
NOTE:
Refer to Fastener Notice
.
Tighten: 47 N.m (35 lb ft) |
| 3 | Front End Sheet Metal Diagonal Brace Bolt Tighten: 14 N.m (124 lb in) |
| 4 | Front End Sheet Metal Diagonal Brace |
| Front End Sheet Metal Left Diagonal Brace Replacement | |
| 5 | Coolant Recovery Reservoir Assembly Refer to Coolant Recovery Reservoir Replacement . |
| 6 | Front End Sheet Metal Diagonal Brace Bolt Tighten: 47 N.m (35 lb ft) |
| 7 | Front End Sheet Metal Diagonal Brace Bolt Tighten: 14 N.m (124 lb in) |
| 8 | Front End Sheet Metal Diagonal Brace |
