Sliding Door Schematics

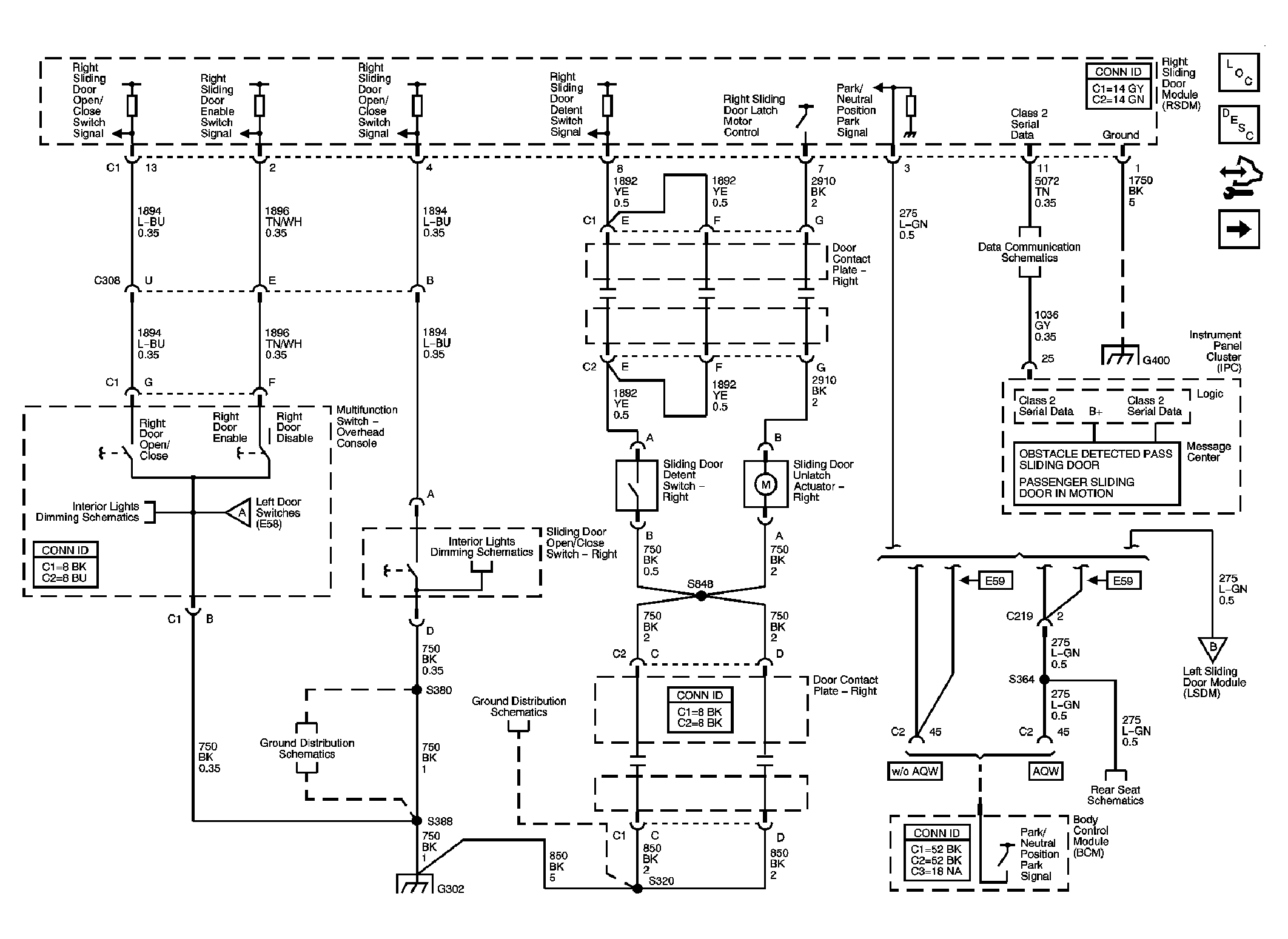

Fig 1: Right Door Controls
GM1740124Courtesy of GENERAL MOTORS CORP.

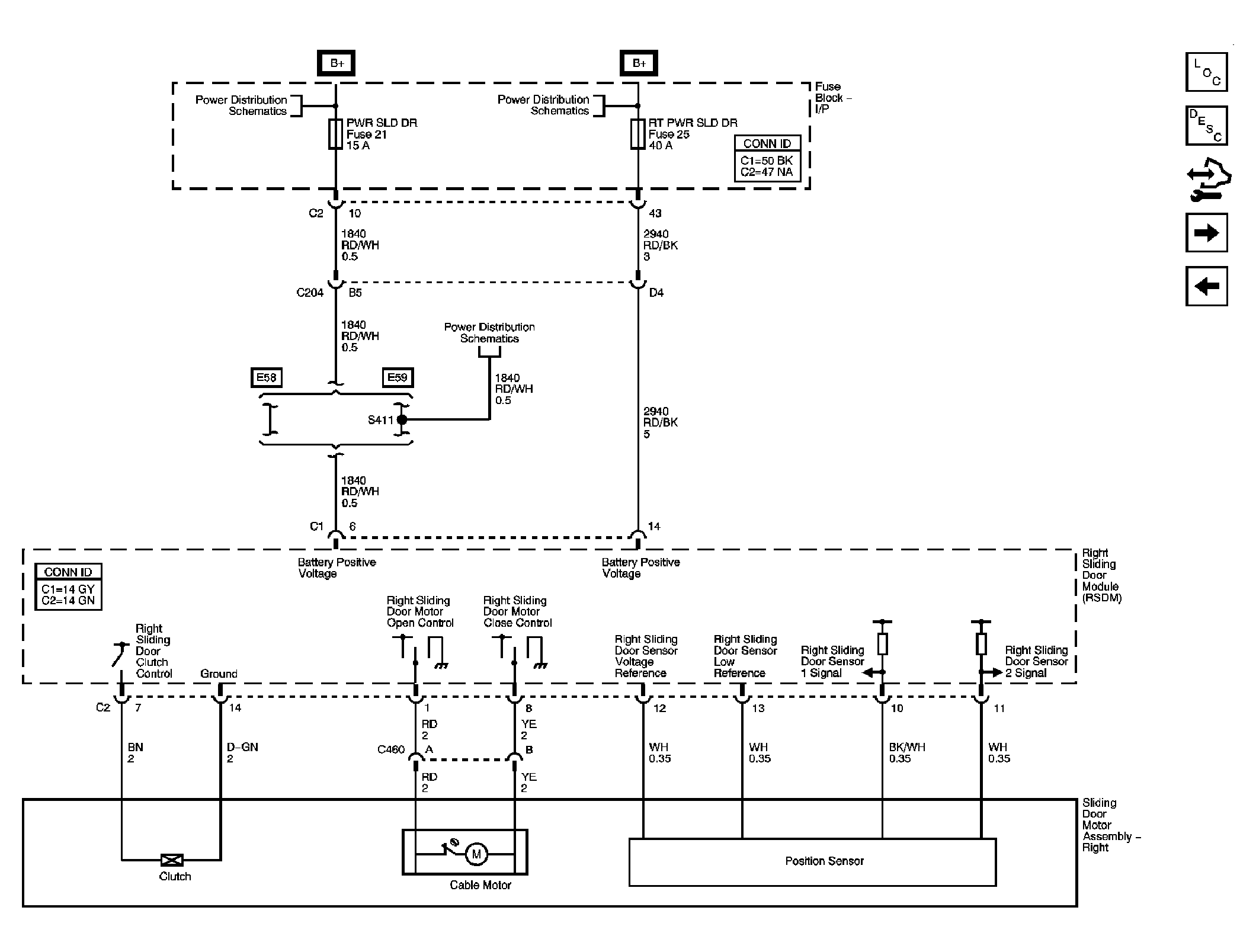

Fig 2: Right Door Motor
GM1740125Courtesy of GENERAL MOTORS CORP.

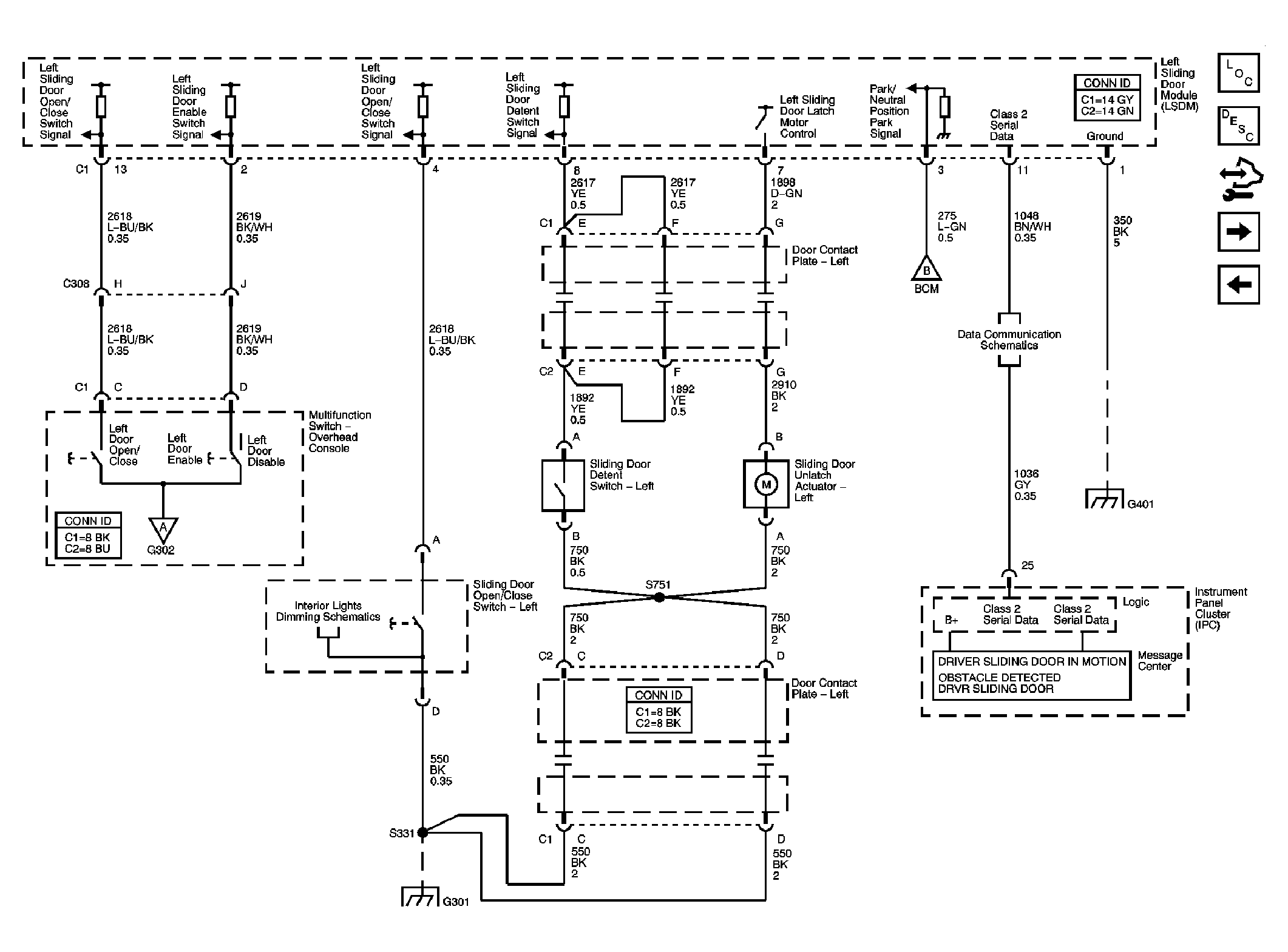

Fig 3: Left Door Controls
GM1740126Courtesy of GENERAL MOTORS CORP.

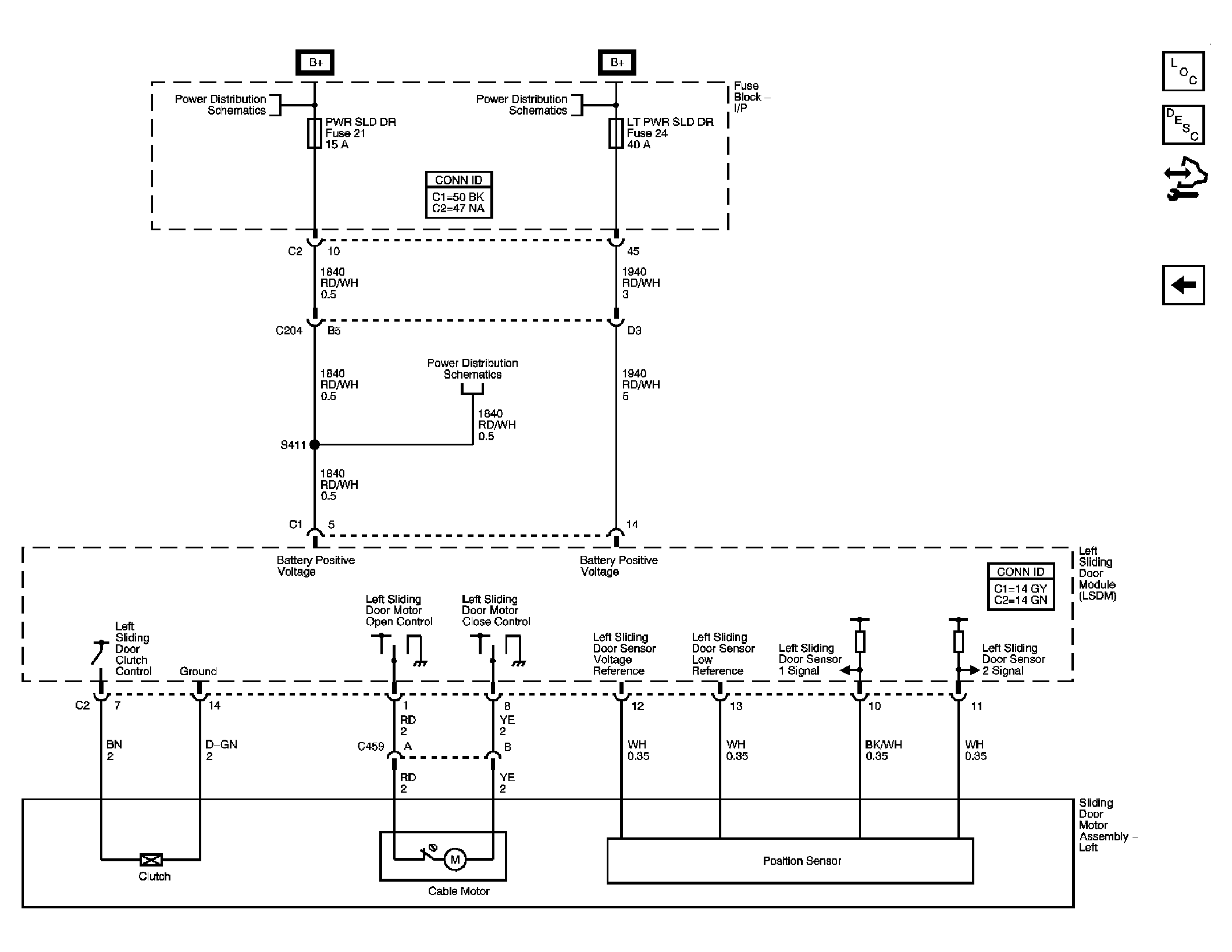

Fig 4: Left Door Motor
GM1740127Courtesy of GENERAL MOTORS CORP.
