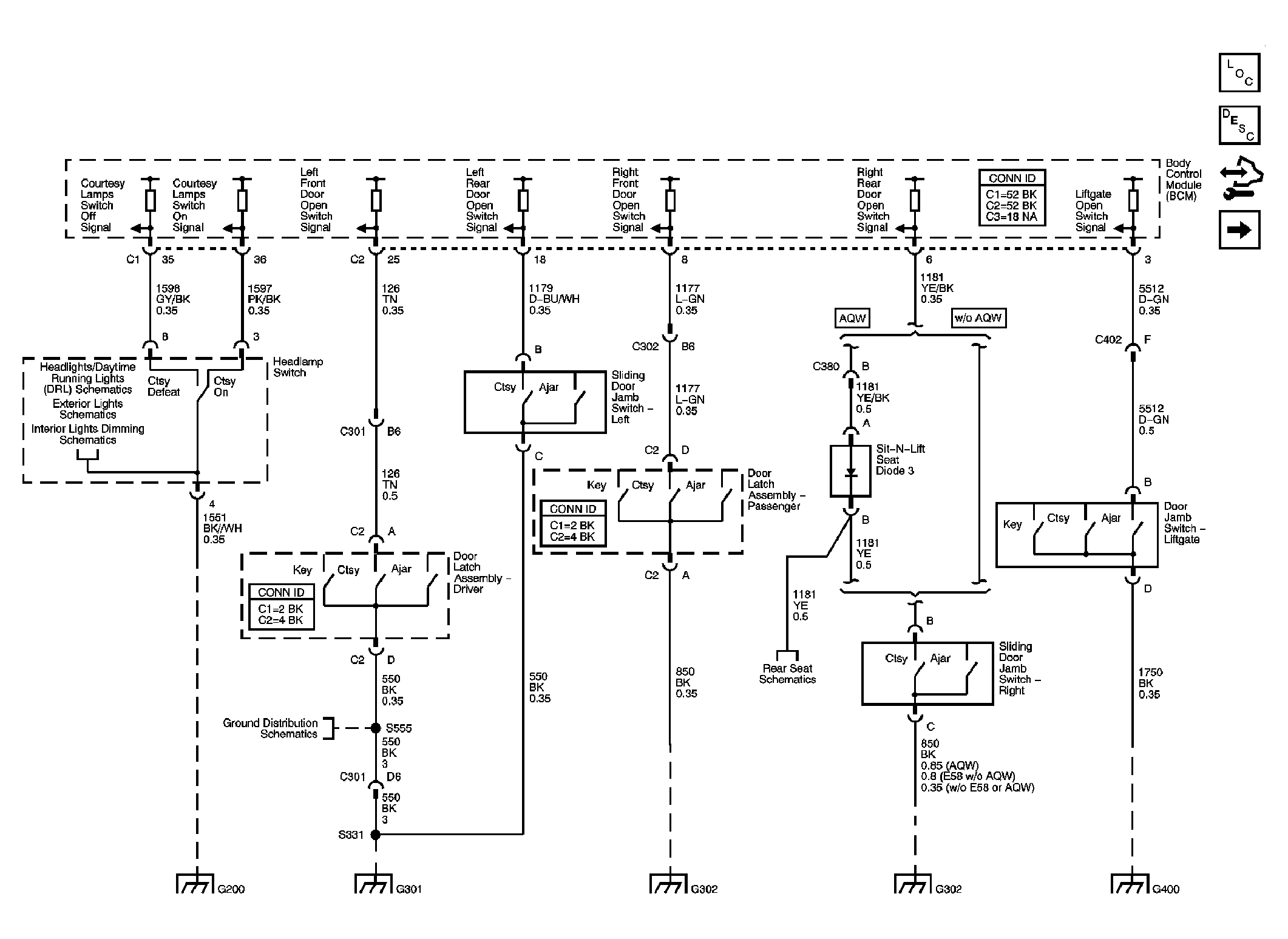

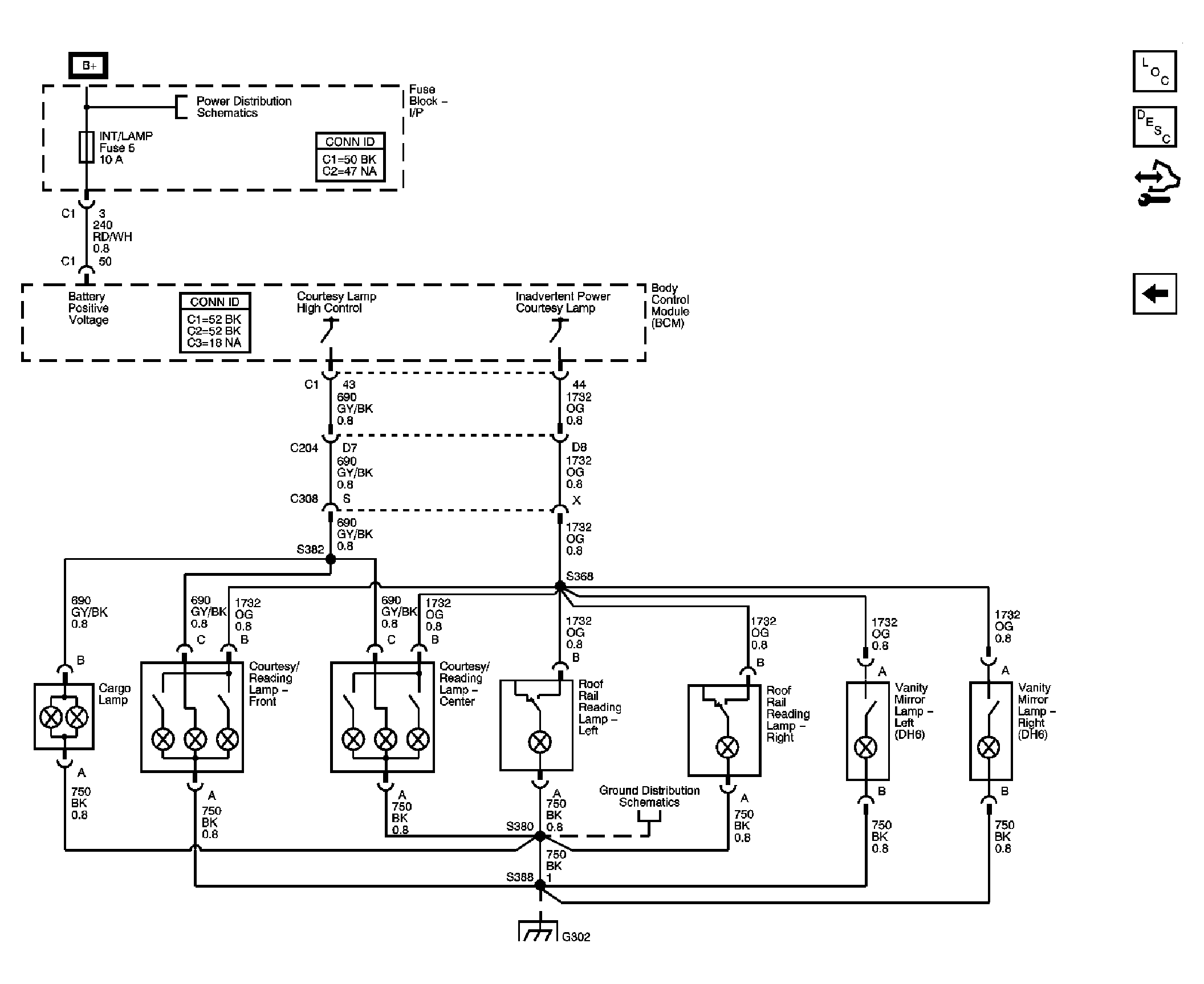

Home >> Chevrolet >> 2007 >> Uplander Base, 3.9 W >> Repair and Diagnosis >> Accessories & Equipment >> Interior/Illumination Lights >> Lighting Systems >> Schematic and Routing Diagrams >> Interior Lights Schematics
