Exterior Lights Schematics

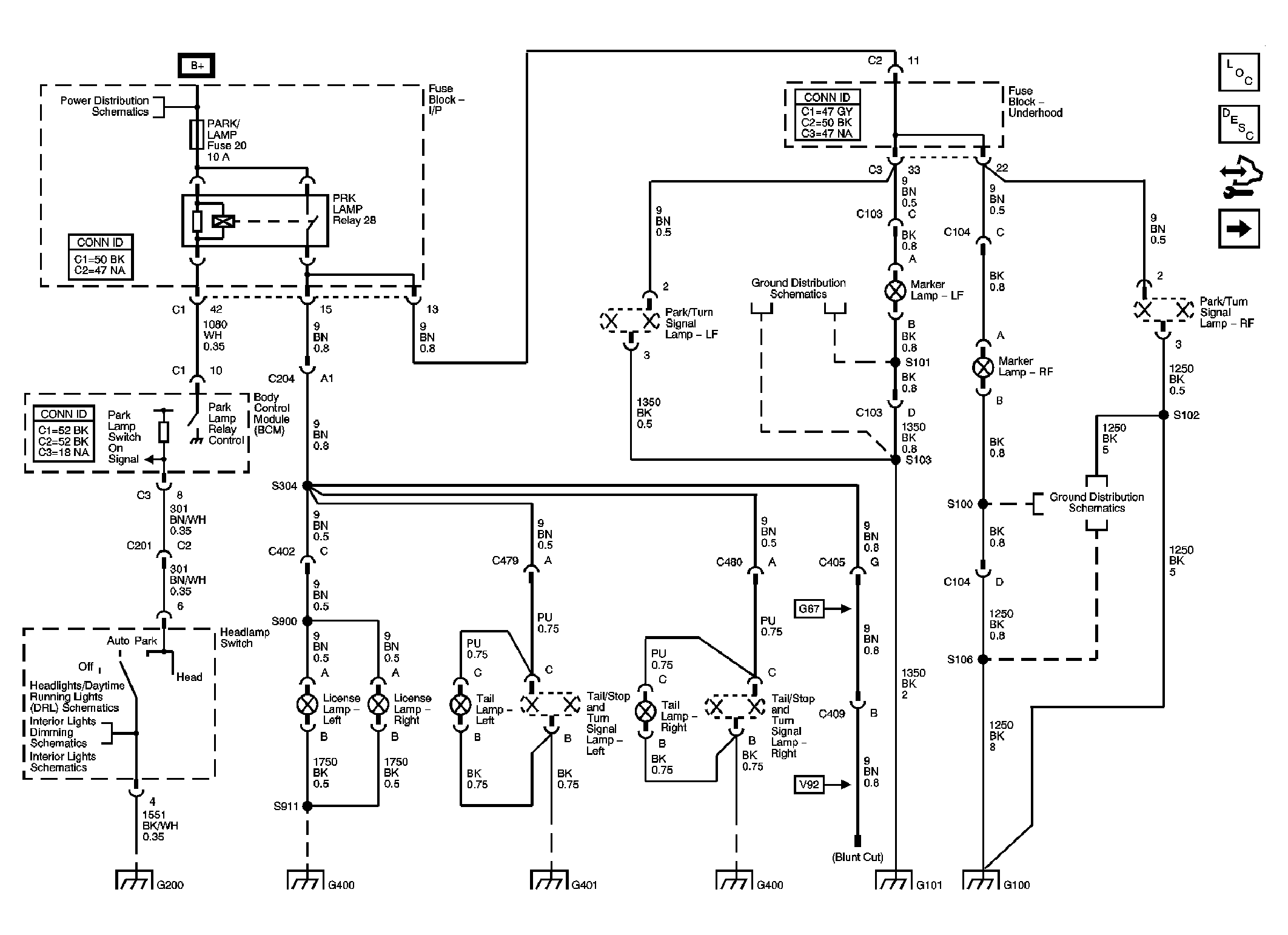

Fig 1: Park, Marker, and License Lamps
GM1740100Courtesy of GENERAL MOTORS CORP.

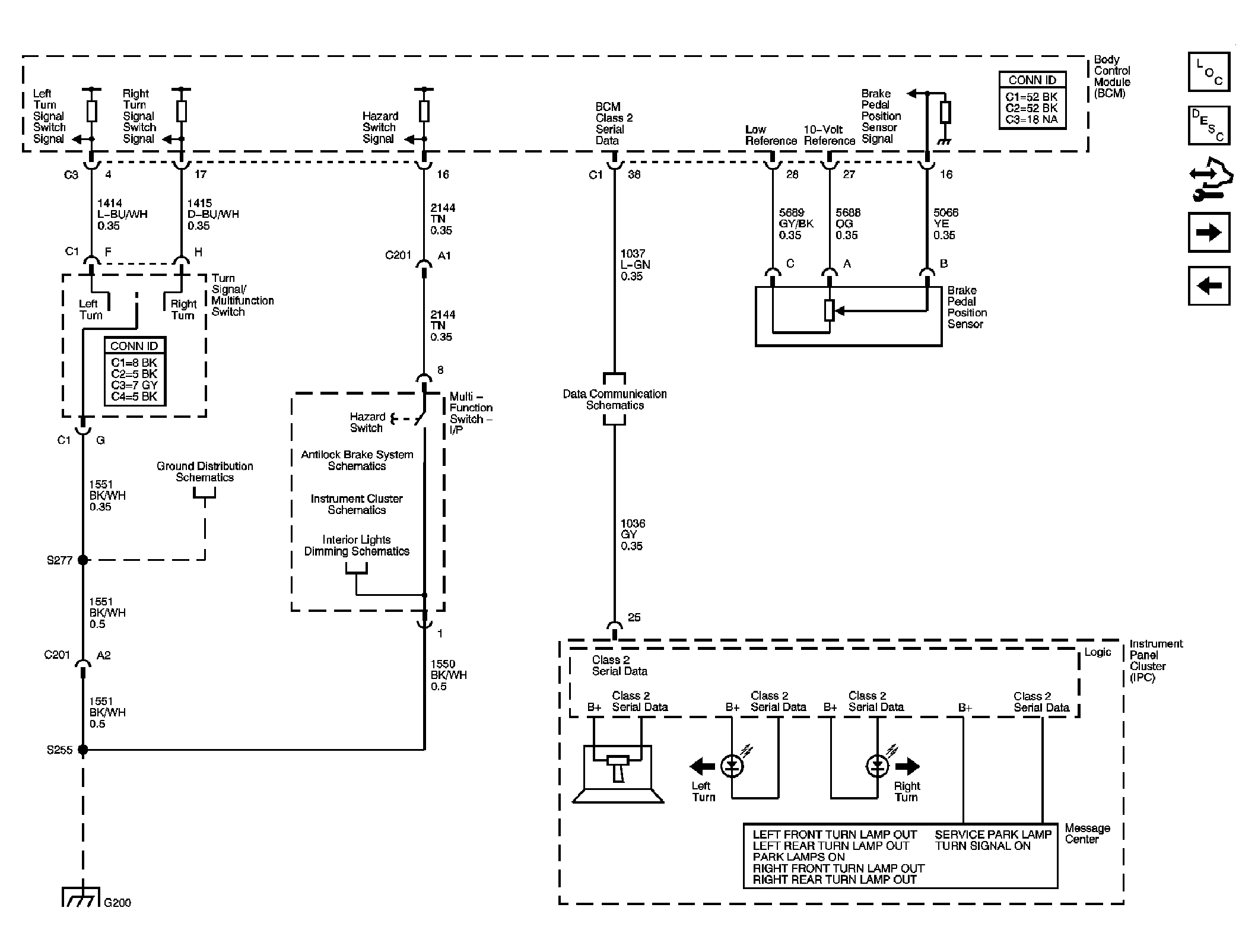

Fig 2: Stop/Turn Signal Lamps Controls and Indicators
GM1740101Courtesy of GENERAL MOTORS CORP.

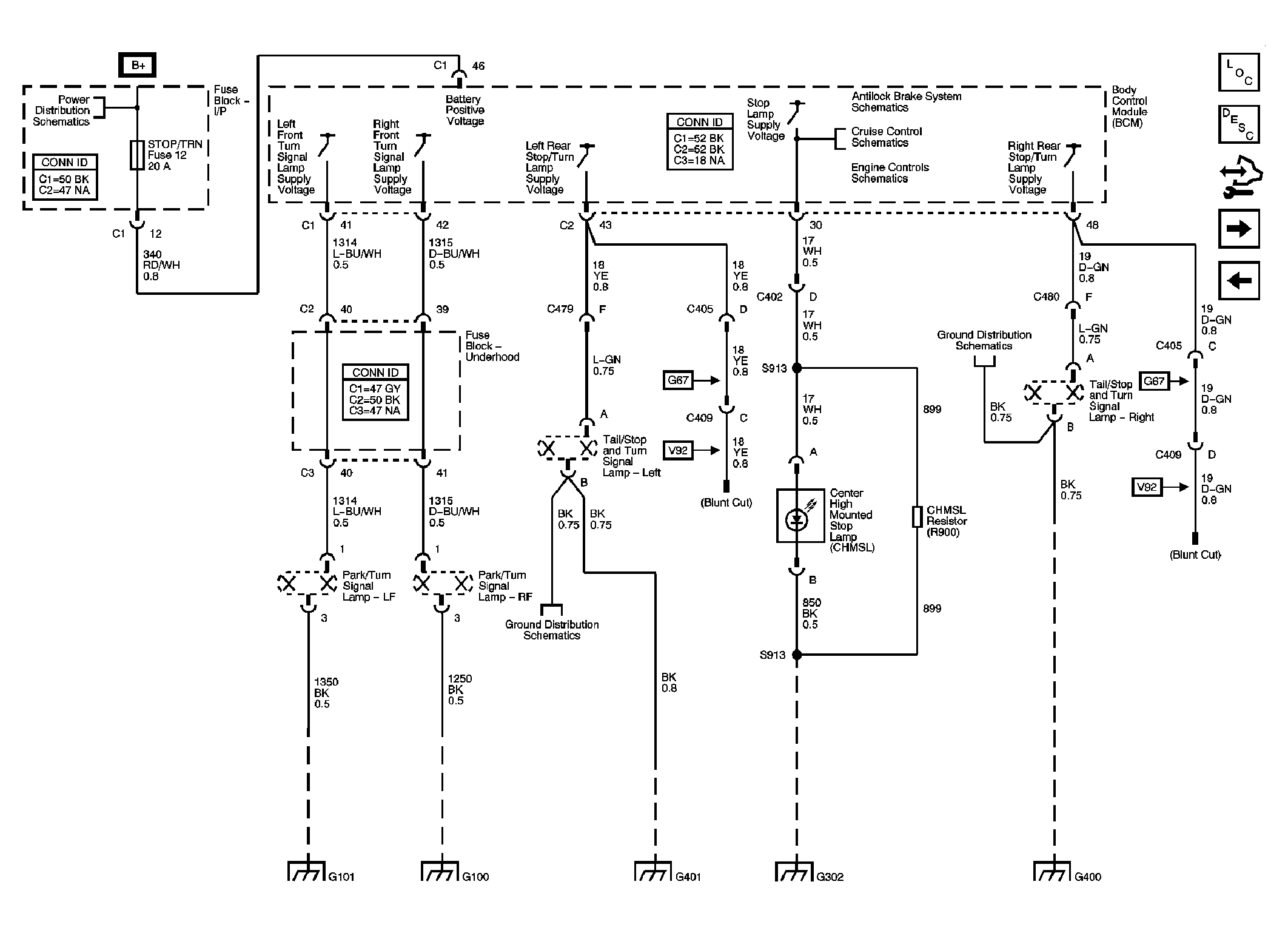

Fig 3: Stop/Turn Signal Lamps
GM1740102Courtesy of GENERAL MOTORS CORP.

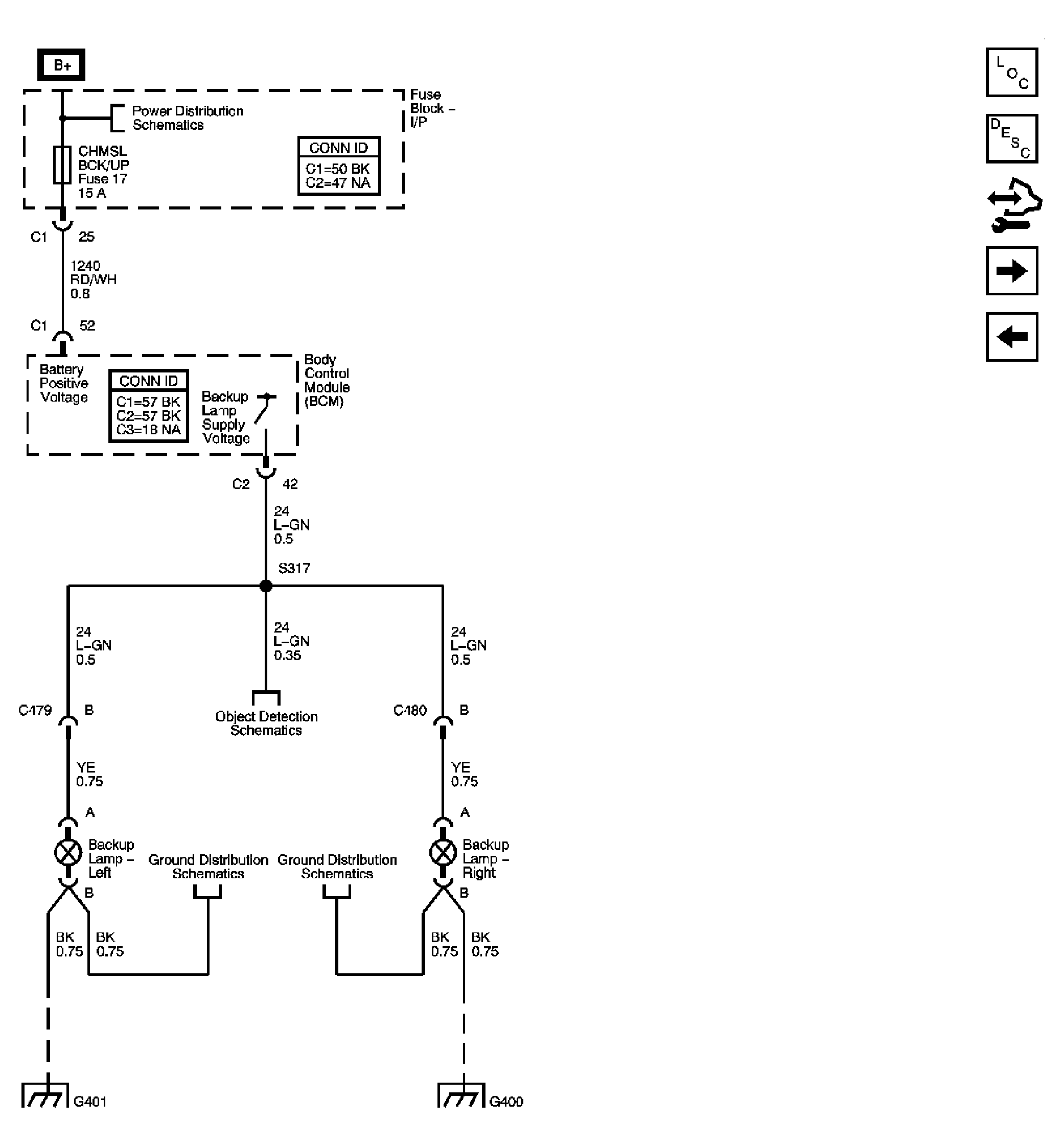

Fig 4: Backup Lamps
GM1740103Courtesy of GENERAL MOTORS CORP.

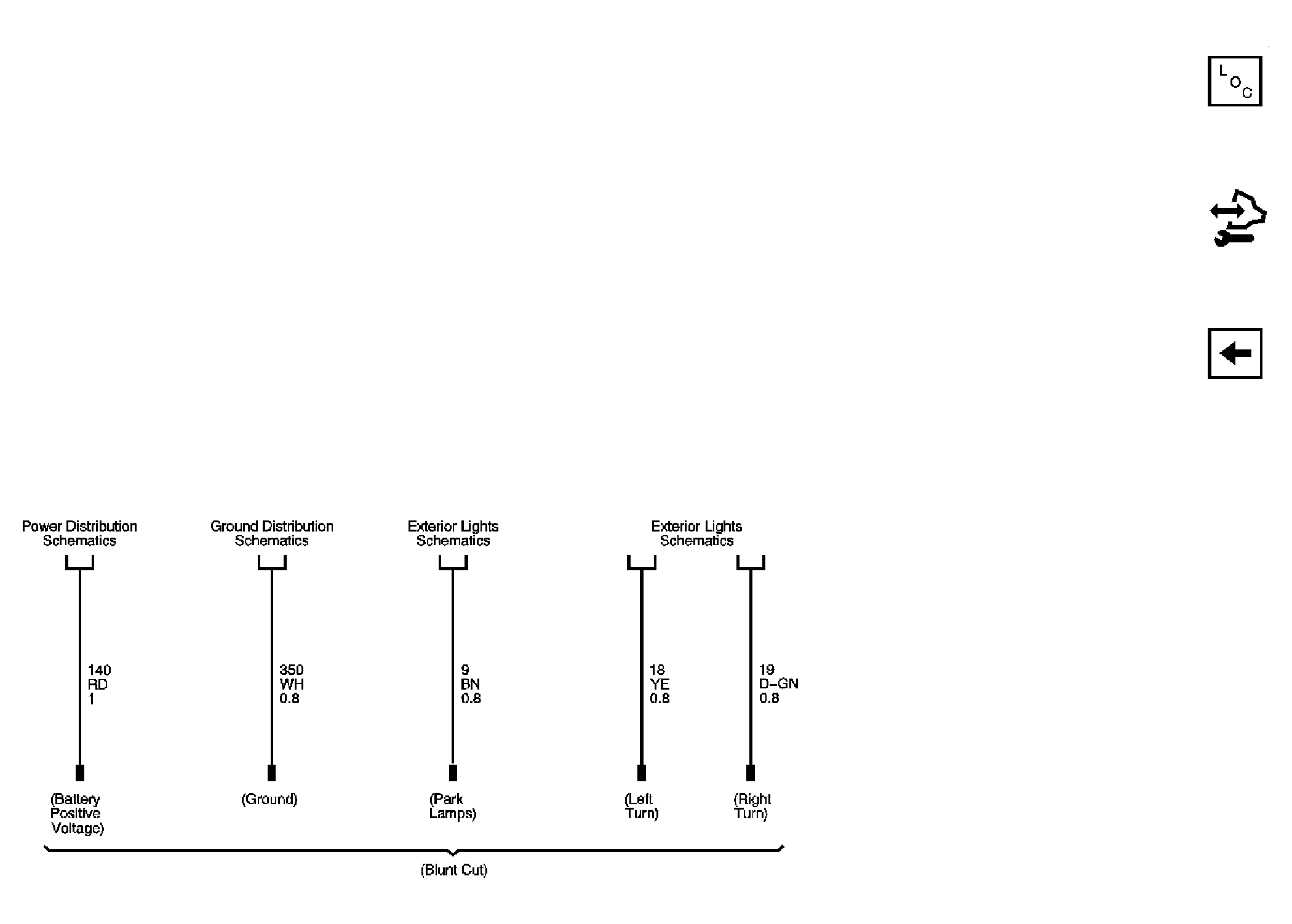

Fig 5: Trailer Wiring
GM1740104Courtesy of GENERAL MOTORS CORP.
