Park/Turn Signal Lamp Bulb Replacement
Park/Turn Signal Lamp Bulb Replacement
| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove either the LF or RF headlamp assembly in order to access the bulb socket. Refer to Headlamp Assembly or Headlamp Bulb and/or Cornering, Sidemarker, Park, Turn Signal Bulb Replacement . |
|

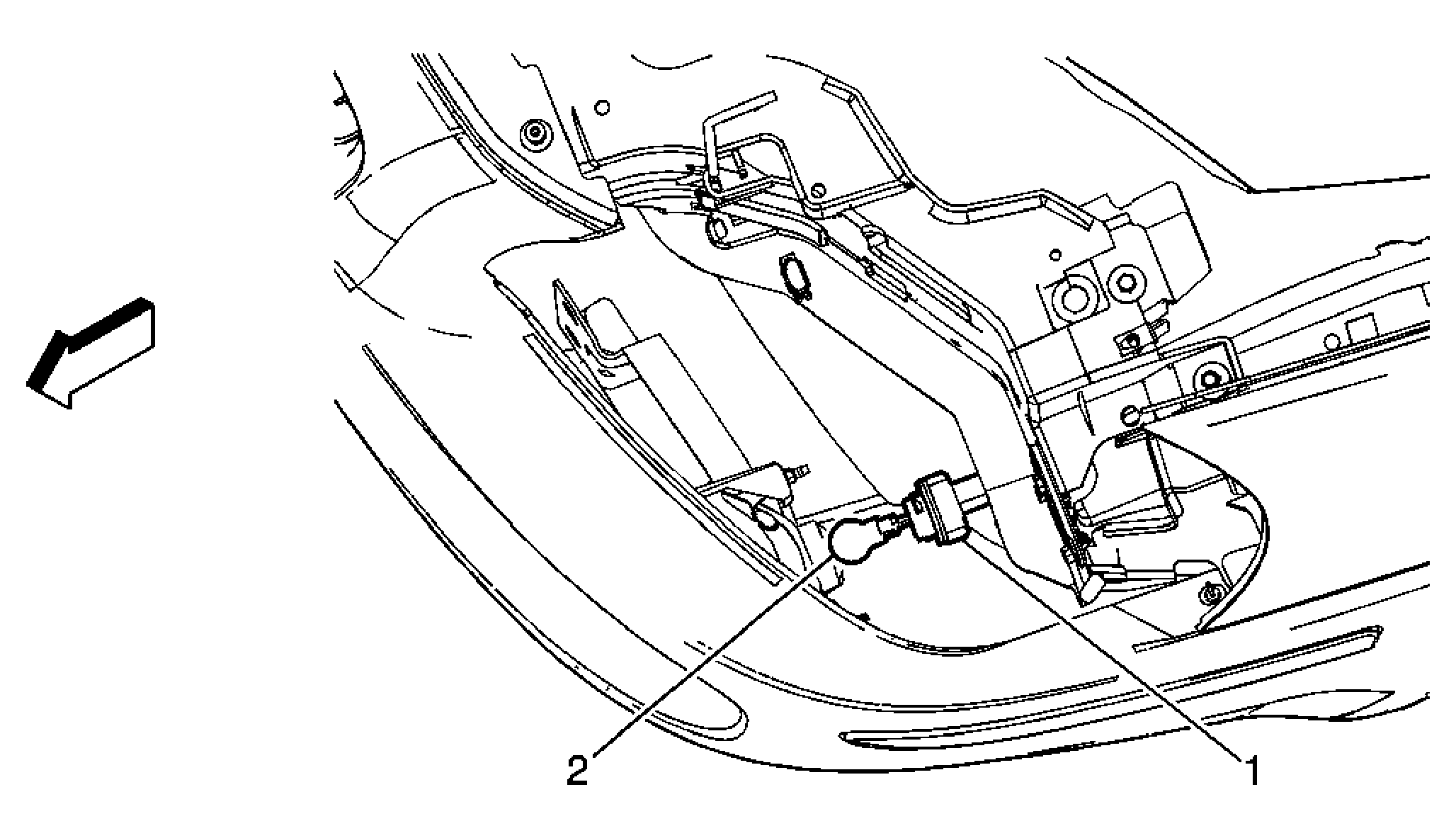

| 1 | Park Turn Day Time Running Lamp Socket Tip: Turn the socket a quarter turn counterclockwise and remove. |
| 2 | Park Turn Day Time Running Lamp Bulb Tip: Pull the bulb straight from the socket. |
