Headlamp Switch Replacement

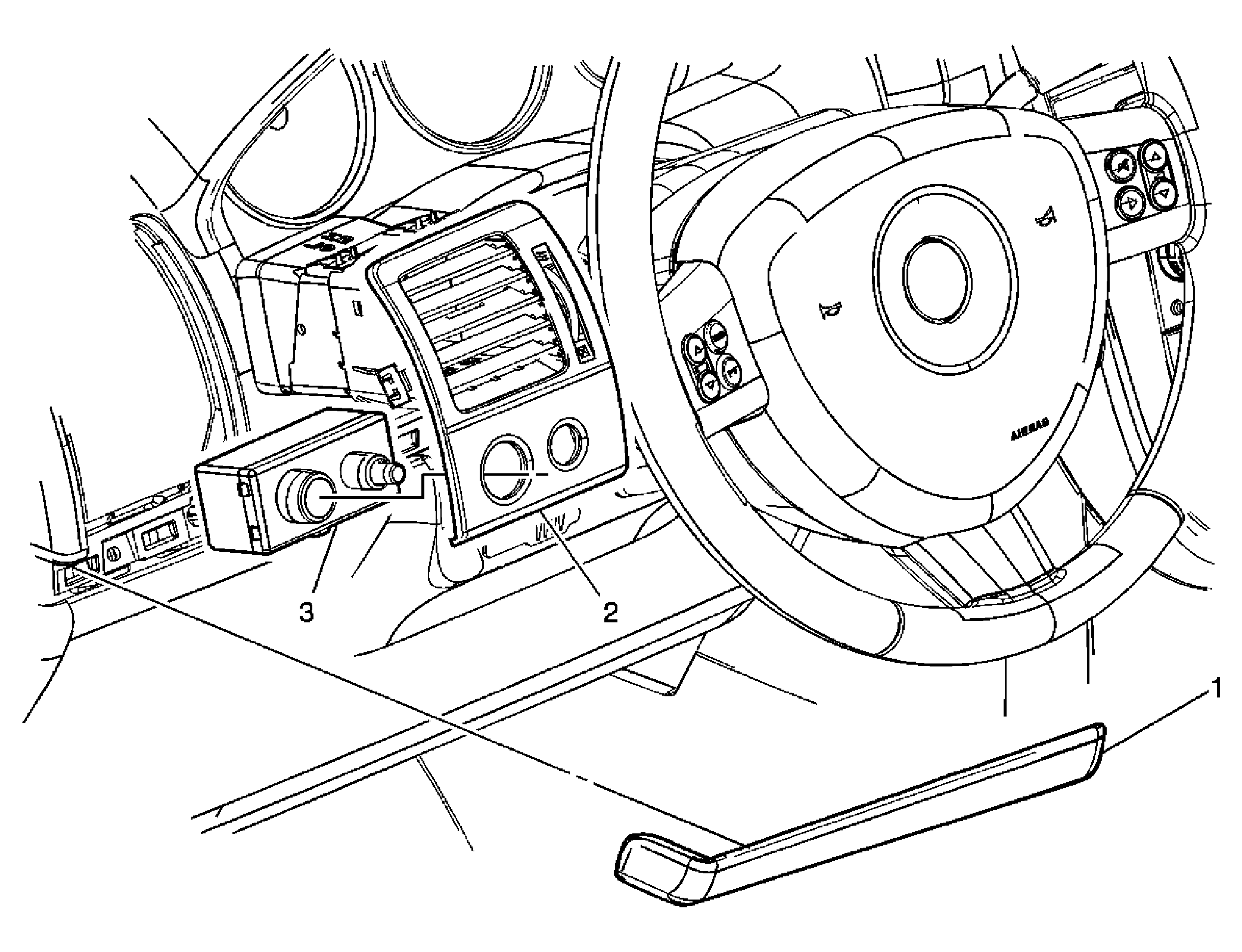

Fig 1: Headlamp Switch
GM1501466Courtesy of GENERAL MOTORS CORP.
Headlamp Switch Replacement

Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
Headlamp and Instrument Panel (I/P) Lamp Dimmer Switch Replacement
1 Molding Assembly, I/P Steering Column Opening
2 Outlet Assembly, I/P A/C Left
Tip:
  1. Pull rearward of the I/P to remove.
  2. Disconnect electrical connector from the headlamp switch.
3 Switch Assembly, Headlamp, and I/P Lamp Dimmer
