Dome Lamp Replacement

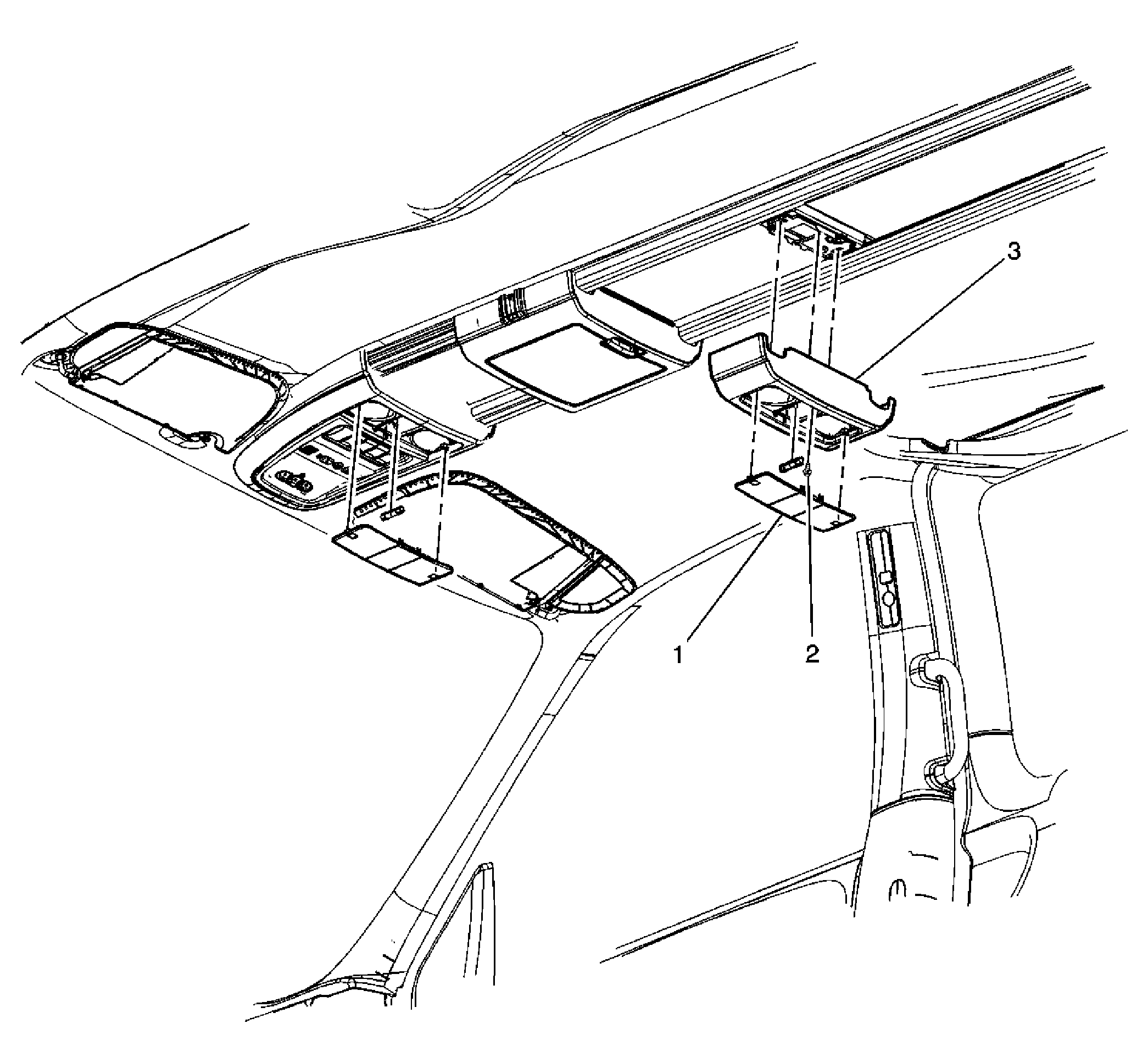

Fig 1: Dome Lamp
GM1547377Courtesy of GENERAL MOTORS CORP.
Dome Lamp Replacement

Callout Component Name
1 Lens, Dome Lamp
2 Screw, Dome Lamp (Qty: 1)
NOTE: Refer to Fastener Notice .

Tighten:  2 N.m (18 lb in)
3 Lamp Assembly, Dome
