Dome Lamp Bulb Replacement

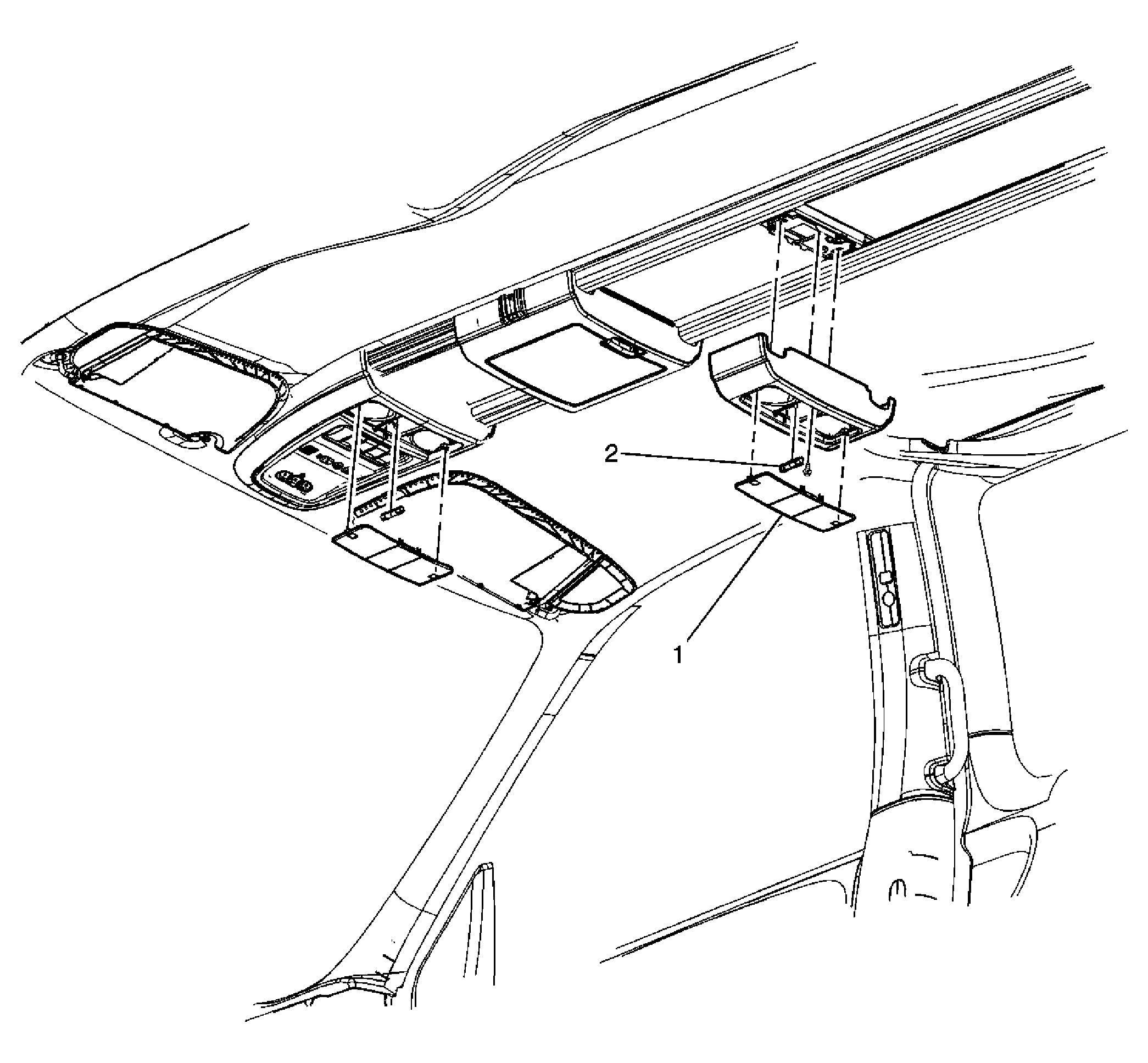

Fig 1: Dome Lamp Bulb
GM1547375Courtesy of GENERAL MOTORS CORP.
Dome Lamp Bulb Replacement

Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1 Lens, Dome Lamp
2 Bulb, Dome Lamp
