Displays and Gages Component Views

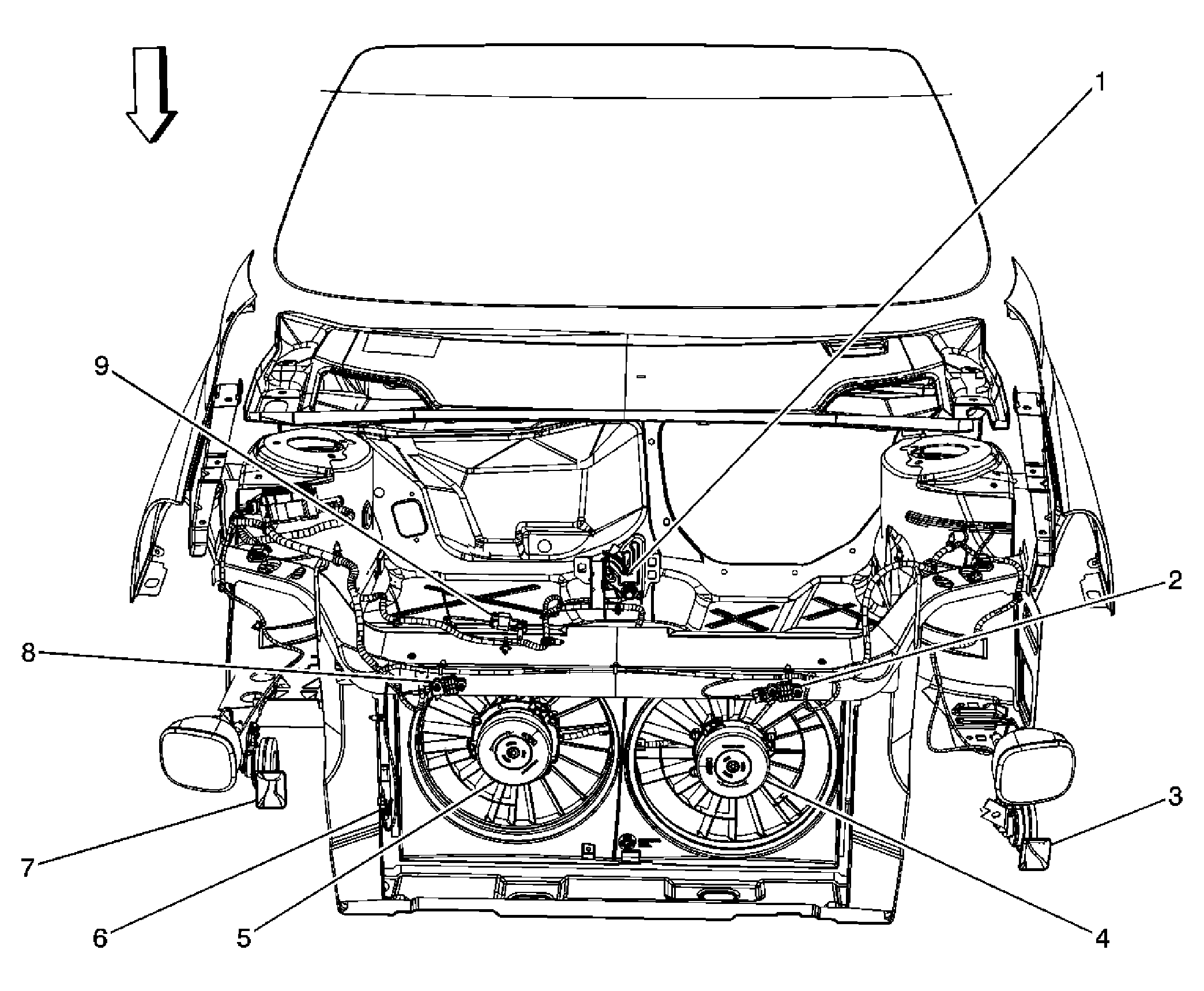

Fig 1: Engine Compartment Components (Forward Lamp Harness)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Hood Ajar Switch (AP3 or AP8)
2	Inflatable Restraint Front End Sensor - Left
3	Horn - Left
4	Cooling Fan - Left
5	Cooling Fan - Right
6	Ambient Air Temperature Sensor (UH8 or UH9)
7	Horn - Right
8	Inflatable Restraint Front End Sensor - Right
9	Hood Ajar Switch Connector (AP3 or AP8)

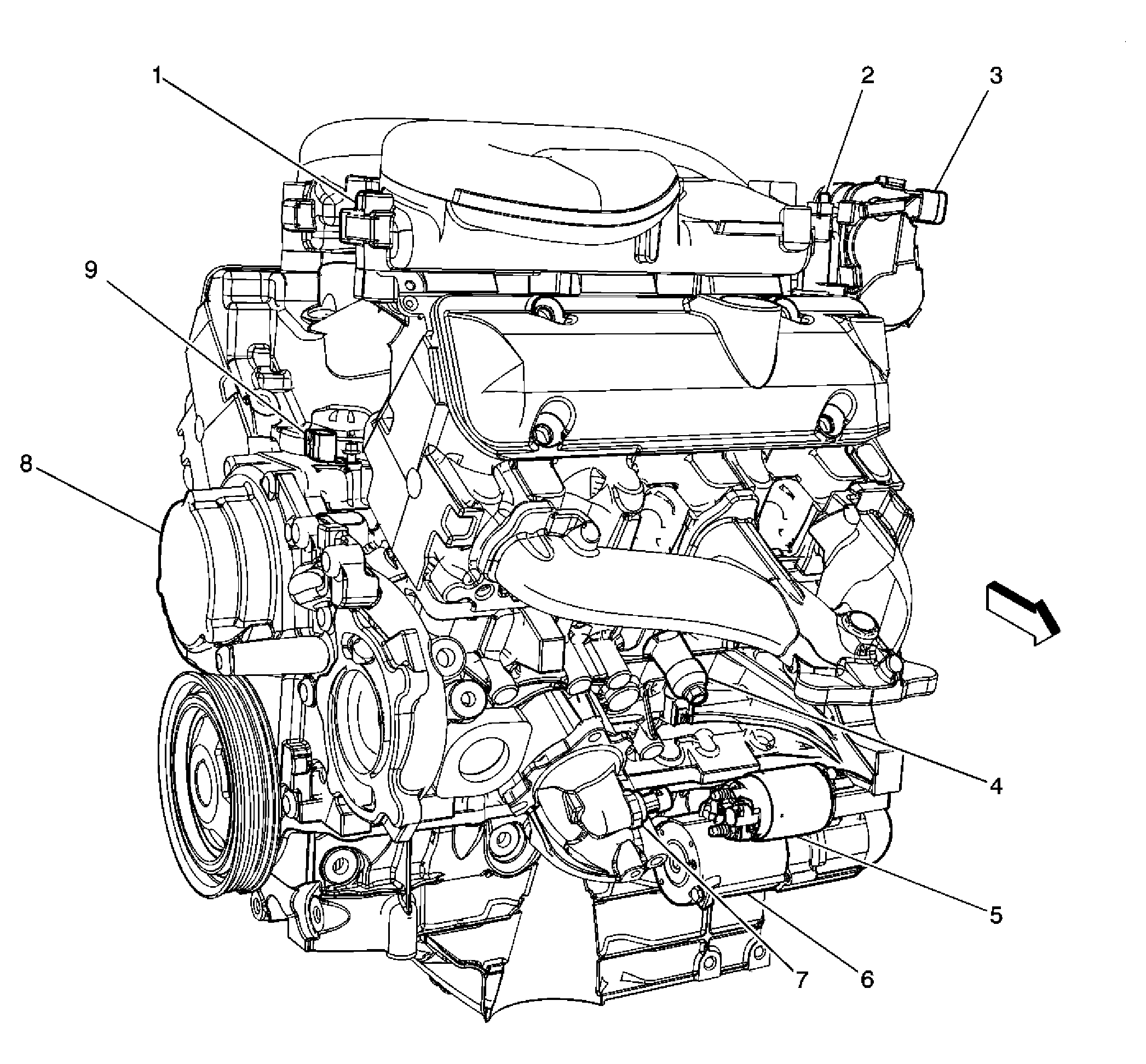

Fig 2: Front of the Engine (LGD/LZ9)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Intake Manifold Tuning (IMT) Solenoid Valve
2	Evaporative Emission (EVAP) Canister Purge Solenoid Valve
3	Throttle Actuator Control (TAC) Module
4	Knock Sensor (KS) 2
5	Starter Solenoid
6	Starter Motor
7	Engine Oil Pressure (EOP) Sensor
8	Camshaft Position (CMP) Actuator Solenoid
9	Camshaft Position (CMP) Sensor

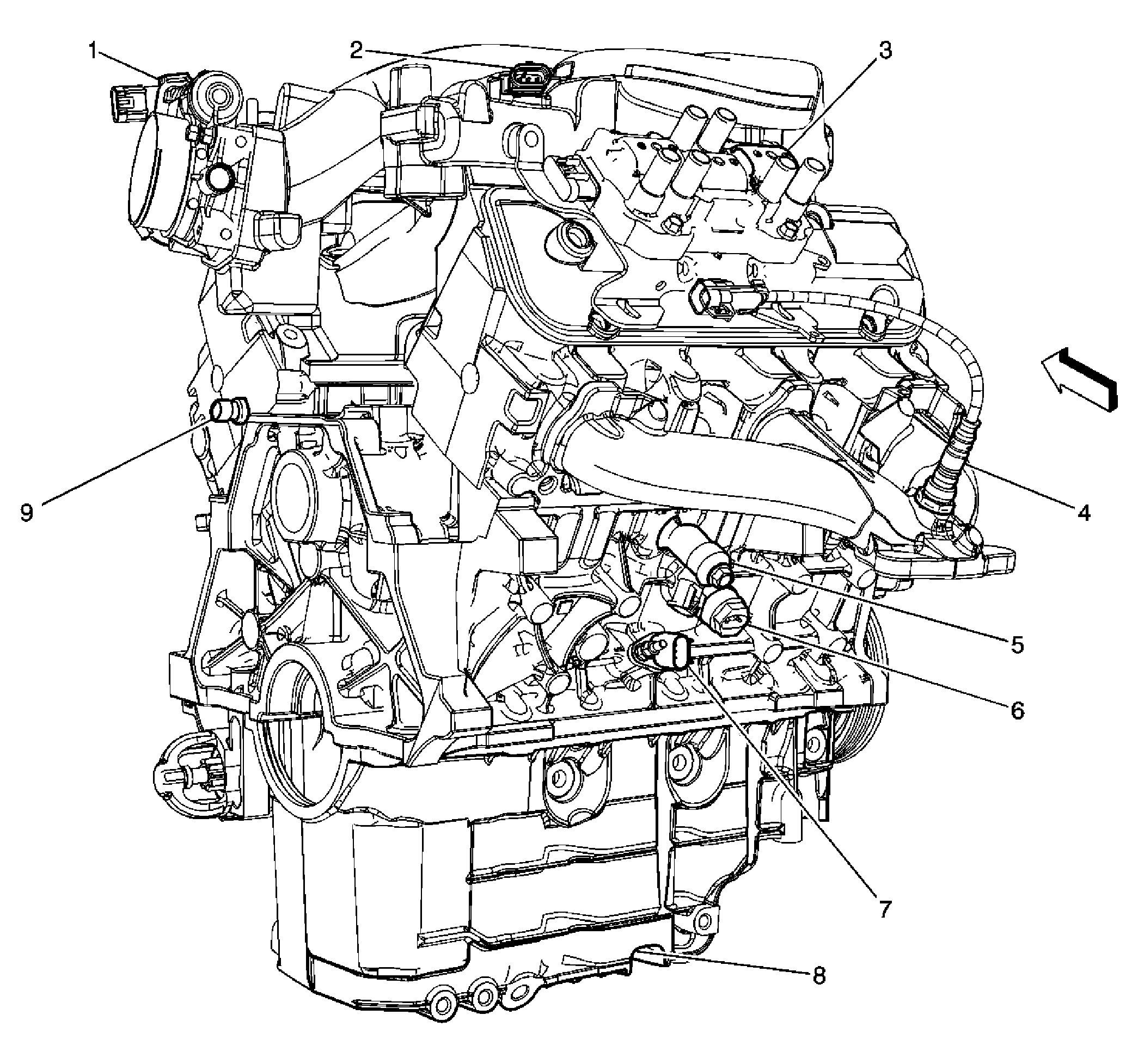

Fig 3: Rear of the Engine (LGD/LZ9)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Throttle Actuator Control (TAC) Module
2	Manifold Absolute Pressure (MAP) Sensor
3	Ignition Control Module (ICM)
4	Heated Oxygen Sensor (HO2S) 1
5	Knock Sensor (KS) 1
6	Block Heater
7	Crankshaft Position (CKP) Sensor
8	Engine Oil Level Switch
9	Engine Coolant Temperature (ECT) Sensor

Fig 4: View Of I/P Console

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Steering Wheel Control Switch Assembly - Right (UK3)
2	Instrument Panel Cluster (IPC)
3	Multifunction Switch - I/P
4	Theft Light Emitted Diode (LED) (UA6)
5	Ambient Light Sensor
6	Hazard Switch
7	Inflatable Restraint PASSENGER AIR BAG ON/OFF Indicator
8	Inflatable Restraint I/P Module
9	Radio
10	HVAC Control Module
11	Cigar Lighter
12	Cruise Control Lever (K34)
13	Inflatable Restraint Steering Wheel Module
14	Steering Wheel Control Switch Assembly - Left (Uk3)
15	Headlamp Switch
16	Turn Signal/Multifunction Switch
