Installation Procedure

Fig 1: View Of Reservoir Seals

Courtesy of GENERAL MOTORS CORP.

Lubricate the new seals with clean brake fluid. Install the seals into the cylinder body.
Install the reservoir on the master cylinder body.

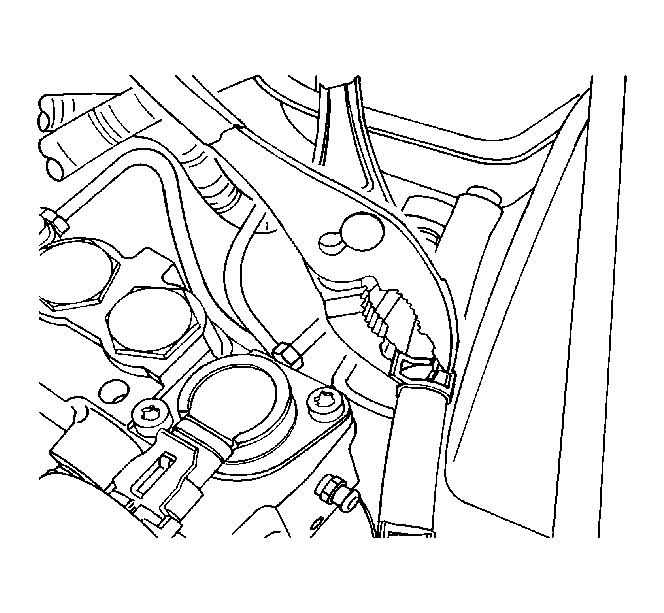

Fig 2: View Of Clutch Hose Clip

Courtesy of GENERAL MOTORS CORP.

For vehicles with the manual transaxle, connect the clip to the clutch hose connection to the master cylinder.

Fig 3: Identifying Reservoir Electrical Connector

Courtesy of GENERAL MOTORS CORP.

Add brake fluid.
Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle .
Bleed the braking system. Refer to Hydraulic Brake System Bleeding (ABS) or Hydraulic Brake System Bleeding (Manual) .
Lower the vehicle.
Connect the reservoir electrical connector.
