Special Tools

Illustration Tool Number/ Description

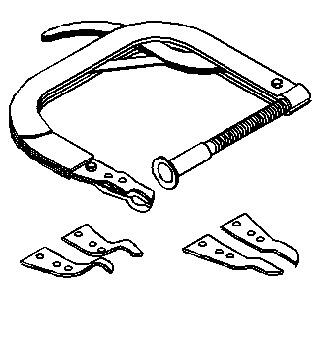

GM3414Courtesy of GENERAL MOTORS CORP.
 J 8062 (KM-348)
Valve Spring Compressor - Head Off

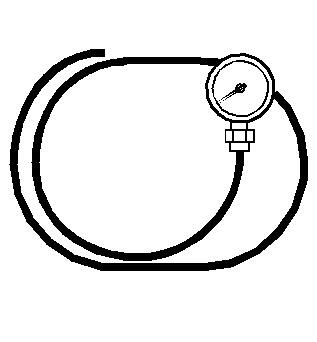

GM29339Courtesy of GENERAL MOTORS CORP.
 J 21867 (KM-498-B)
Pressure Gage
GM5115Courtesy of GENERAL MOTORS CORP.
 J 24086-B (KM-427)
Piston Pin Remover/Installer Set
GM190562Courtesy of GENERAL MOTORS CORP.
 J 28467-B (DW-117)
Universal Engine Support Fixture

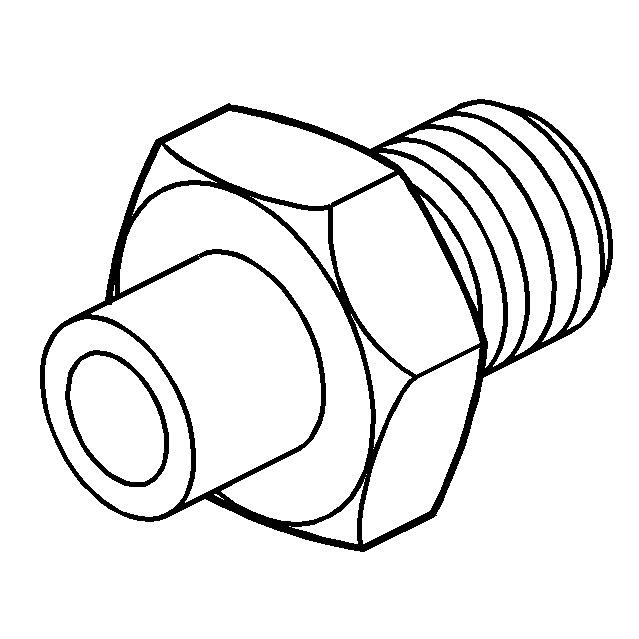

GM1197695Courtesy of GENERAL MOTORS CORP.
 J 36648-A (KM-135)
Oil Pressure Gage Adapter
GM1282419Courtesy of GENERAL MOTORS CORP.
 J 36972
Crankshaft Rear Oil Seal Installer
GM1256928Courtesy of GENERAL MOTORS CORP.
 J 42492-A (KM-421-A)
Timing Belt Adjuster

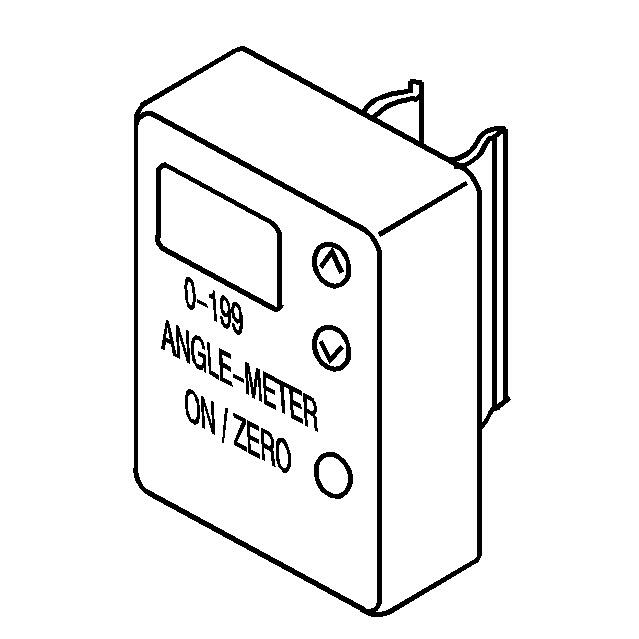

GM1197696Courtesy of GENERAL MOTORS CORP.
 J 45059
Angle Meter
GM1282415Courtesy of GENERAL MOTORS CORP.
 KM 340-1-C
Cutter Set

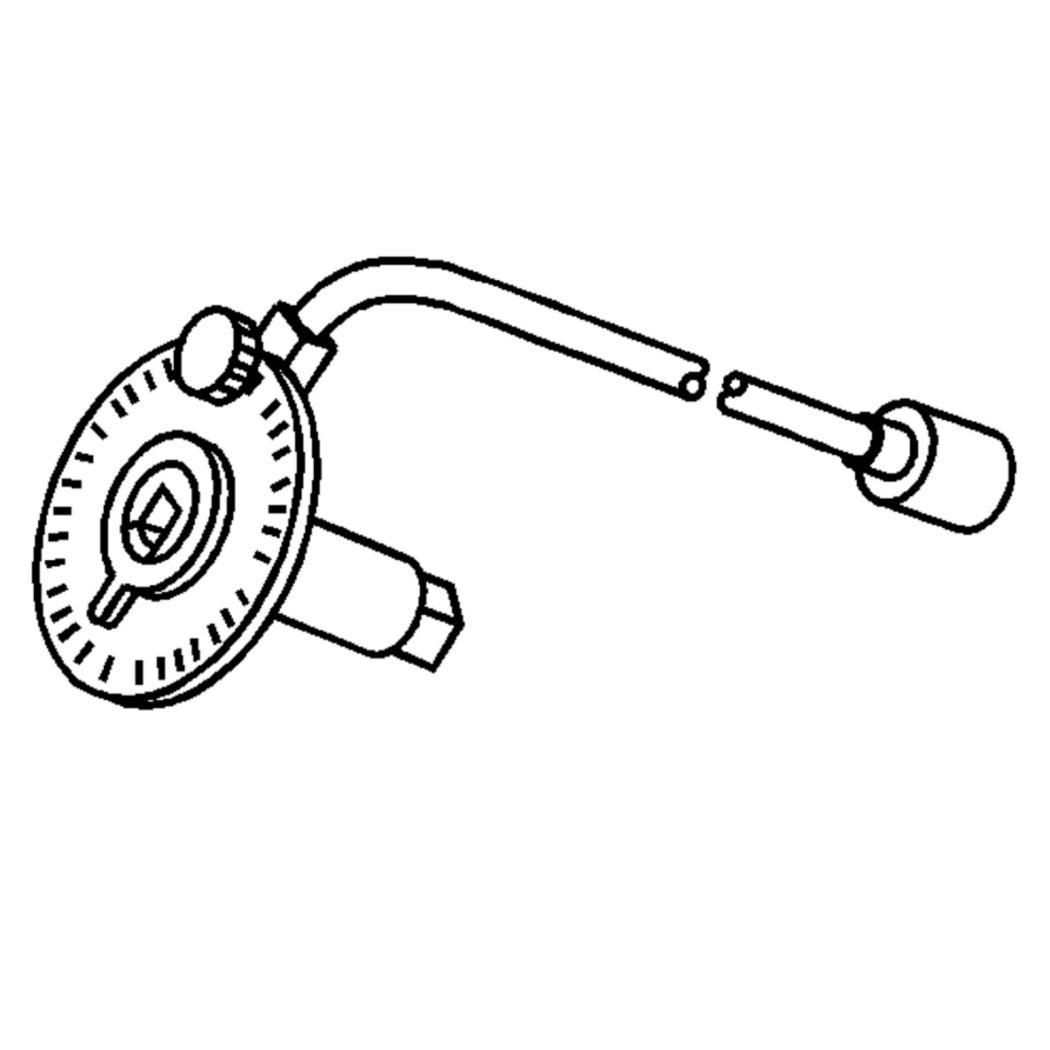

GM1282416Courtesy of GENERAL MOTORS CORP.
 KM 470-B
Angular Torque Gage
GM1282418Courtesy of GENERAL MOTORS CORP.
 KM 571-B
Gage
GM1282420Courtesy of GENERAL MOTORS CORP.
 KM 635
Crankshaft Rear Oil Seal Installer
GM1308688Courtesy of GENERAL MOTORS CORP.
 KM 653-A
Adapter
GM1282417Courtesy of GENERAL MOTORS CORP.
 KM 805
Valve Guide Reamer
GM1281167Courtesy of GENERAL MOTORS CORP.
 OTC 1726 (KM-412)
Engine Overhaul Stand
