Headlights Schematics

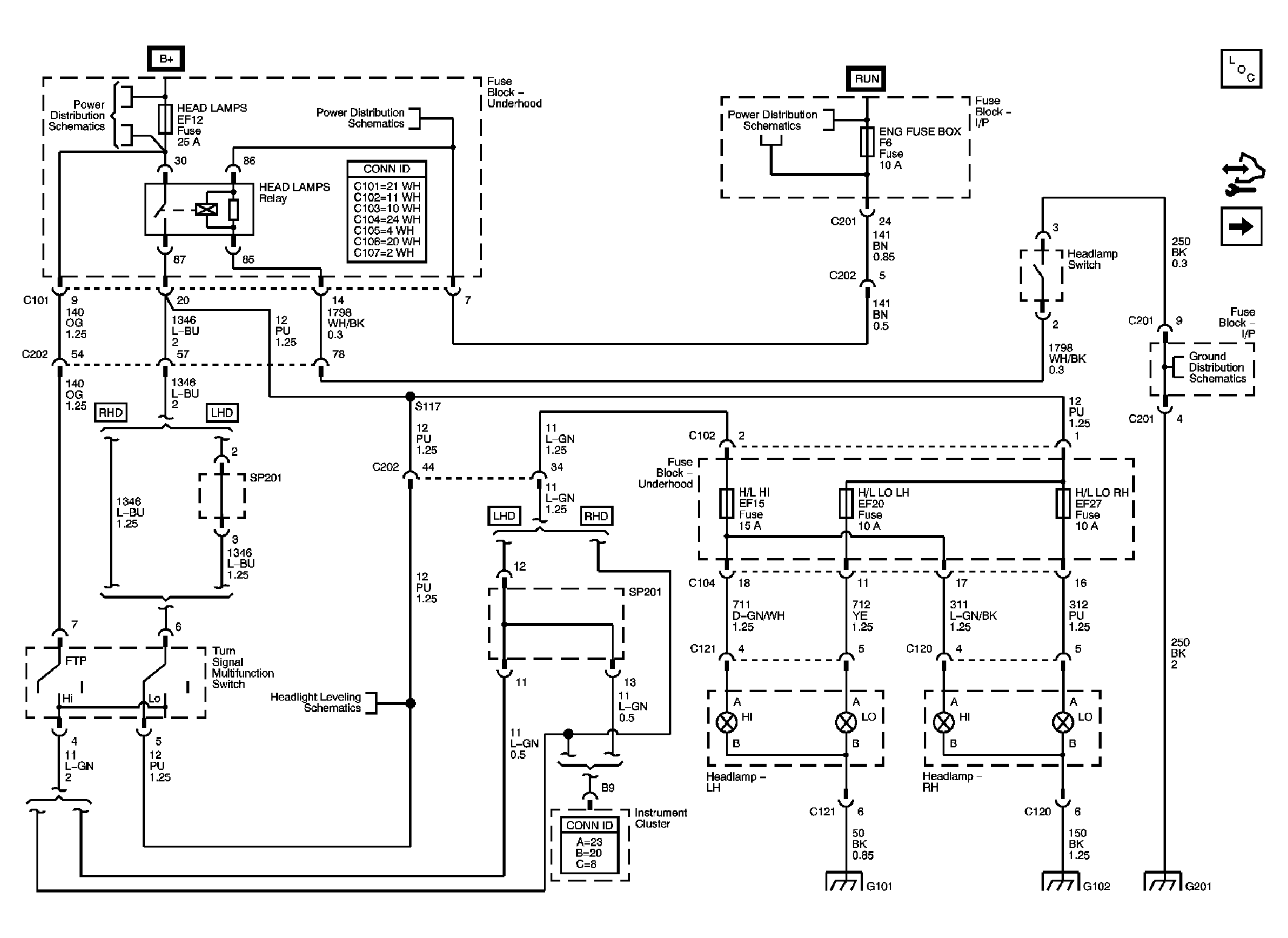

Fig 1: Headlamps Schematic - w/o Daytime Running Lamps
GM1847443Courtesy of GENERAL MOTORS CORP.

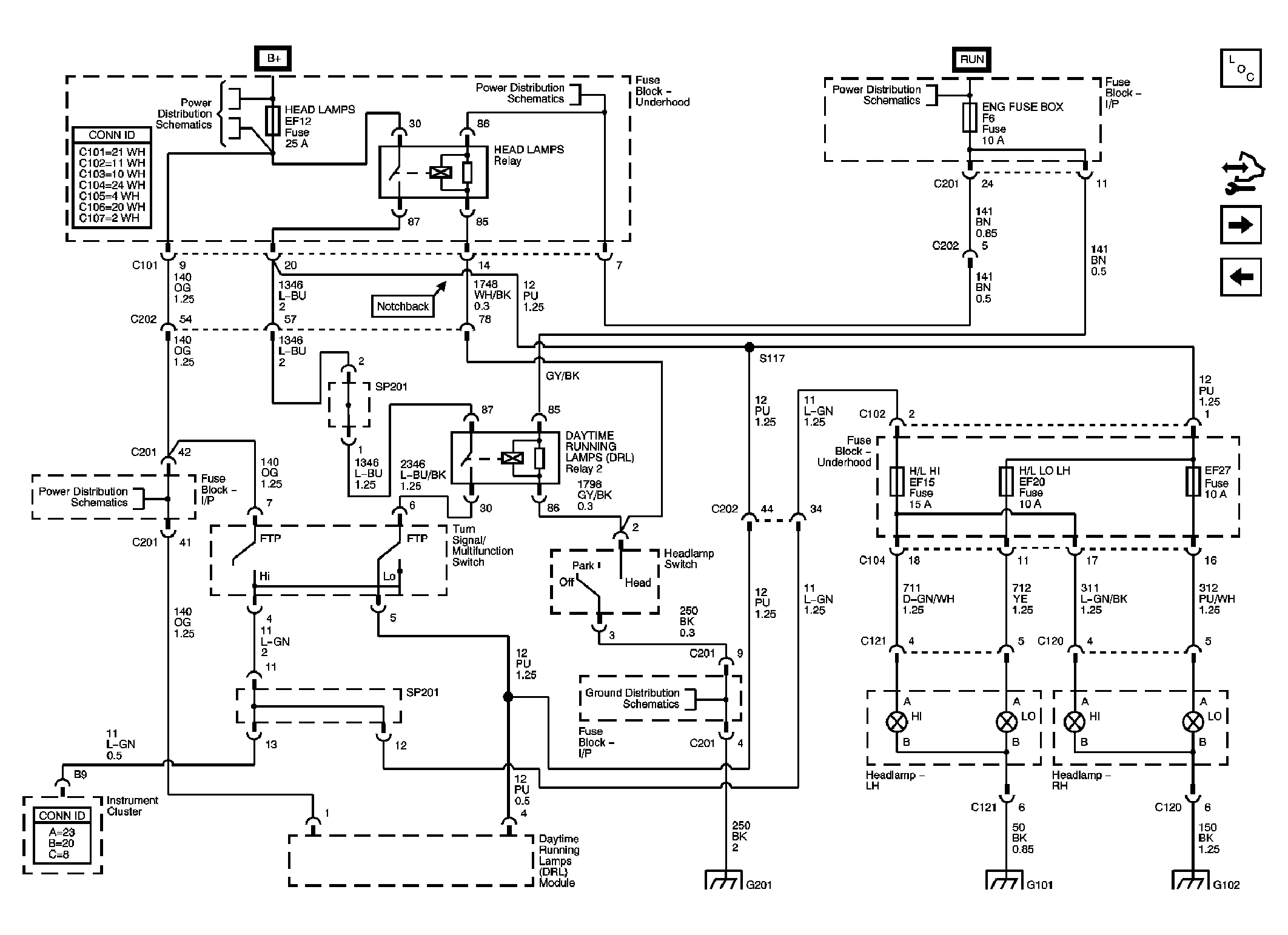

Fig 2: Headlamps Schematic - w/Scandinavia Daytime Running Lamps
GM1847444Courtesy of GENERAL MOTORS CORP.

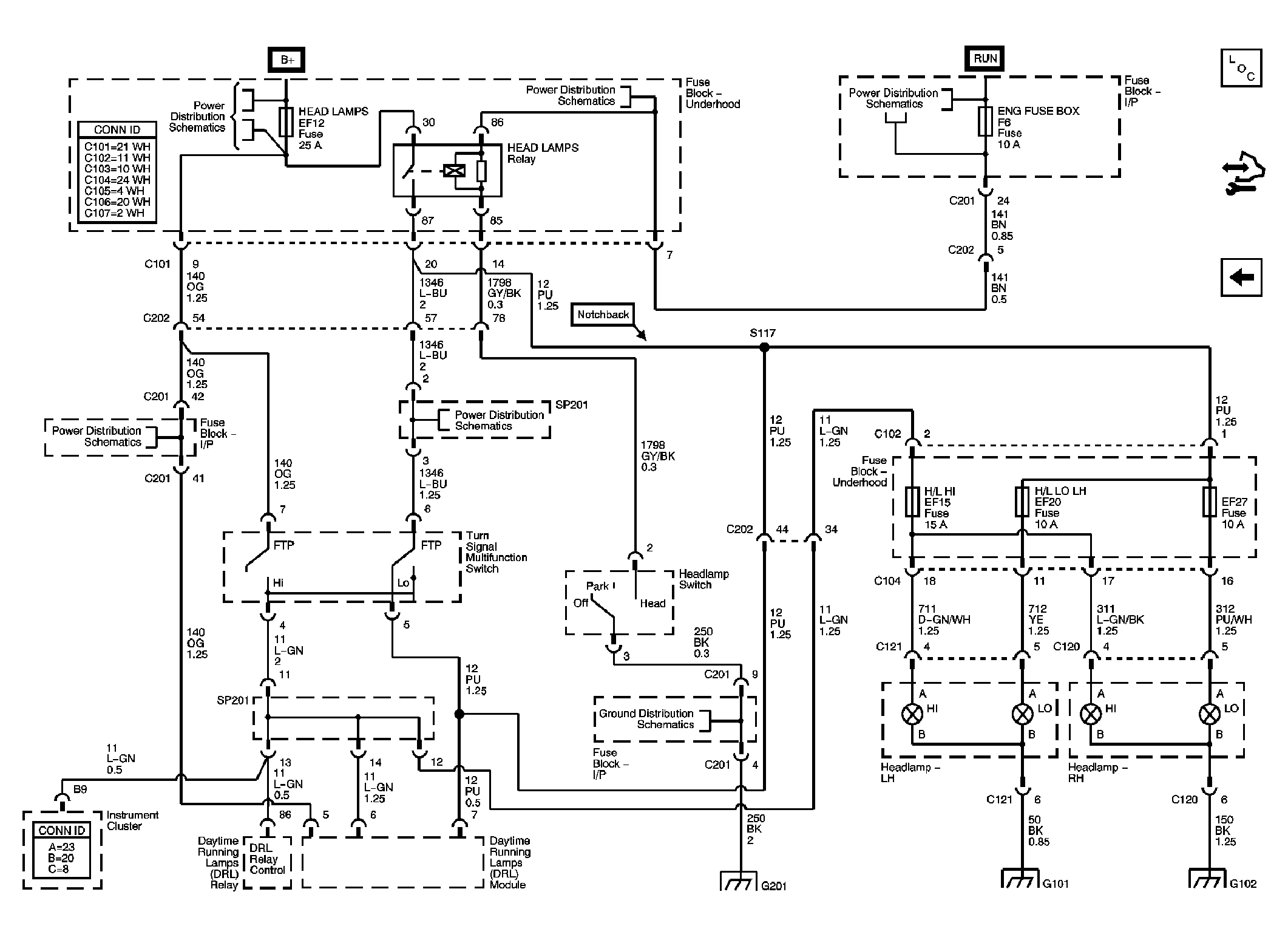

Fig 3: Headlamps Schematic - w/North American Daytime Running Lamps
GM1847445Courtesy of GENERAL MOTORS CORP.
