Oil Pan Cleaning and Inspection

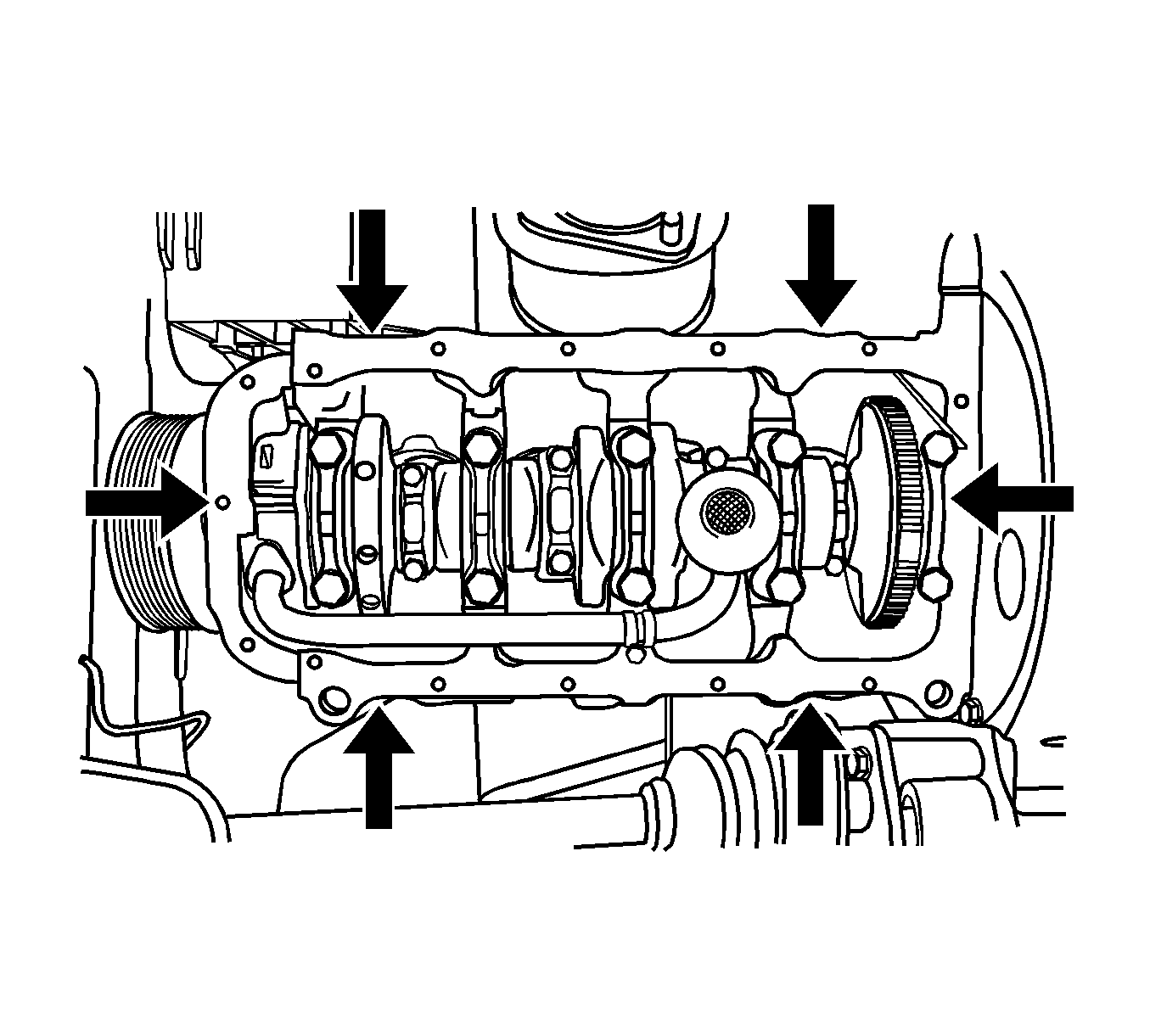

    Fig 1: View Of Oil Pan Sealing Surface
    GM1371915Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Safety Glasses Caution .
  1. Clean the oil pan sealing surface.
  2. Clean the engine clock sealing surface.
  3. Clean the oil pan retaining bolts.
  4. Clean the oil pan attaching bolt holes in the engine block.
